05/2014
4-72
DC SC2020
19. Cover
Version 1.1
Disassembly/Assembly and Adjustment

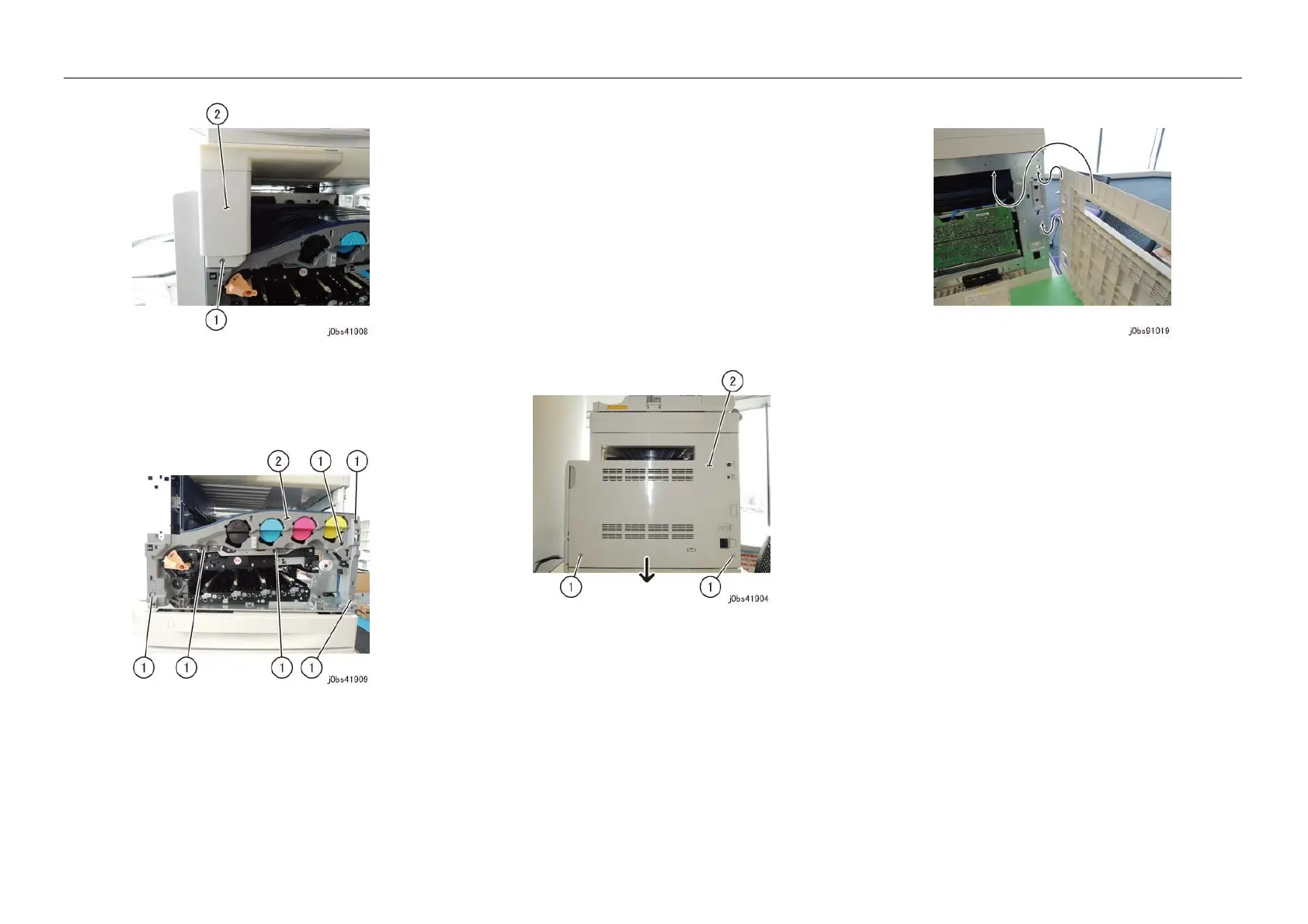

Figure 2 j0bs41908
4. Remove the Inner Cover. (Figure 3)
(1) Remove the screw.
(2) Remove the Inner Cover.
Figure 3 j0bs41909
Replacement
1. To install, carry out the removal steps in reverse order.
REP 19.1.3 Right Cover
Parts List on PL 19.1
Removal
WARNING
When turning OFF the power switch, check that the "Data"
lamp is OFF and that there is no Job in progress.
Turn OFF the Power Switch and make sure that the screen dis-
play or energy-saving LED is turned off.
Check that the power switch is OFF and unplug the power plug.
1. Remove the Right Cover. (Figure 1)
(1) Remove the Screws (x2).
(2) Remove the Right Cover towards the direction of the
arrow.
Figure 1 j0bs41904
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the Right Cover, insert the Right Cover Hook
(x2) in the Frame Hole (x2). (Figure 2)
Figure 2 j0bs91019
