05/2014
4-101
DC SC2020
Disassembly/Assembly and Adjustment
8. Xero./Deve.
Version 1.1

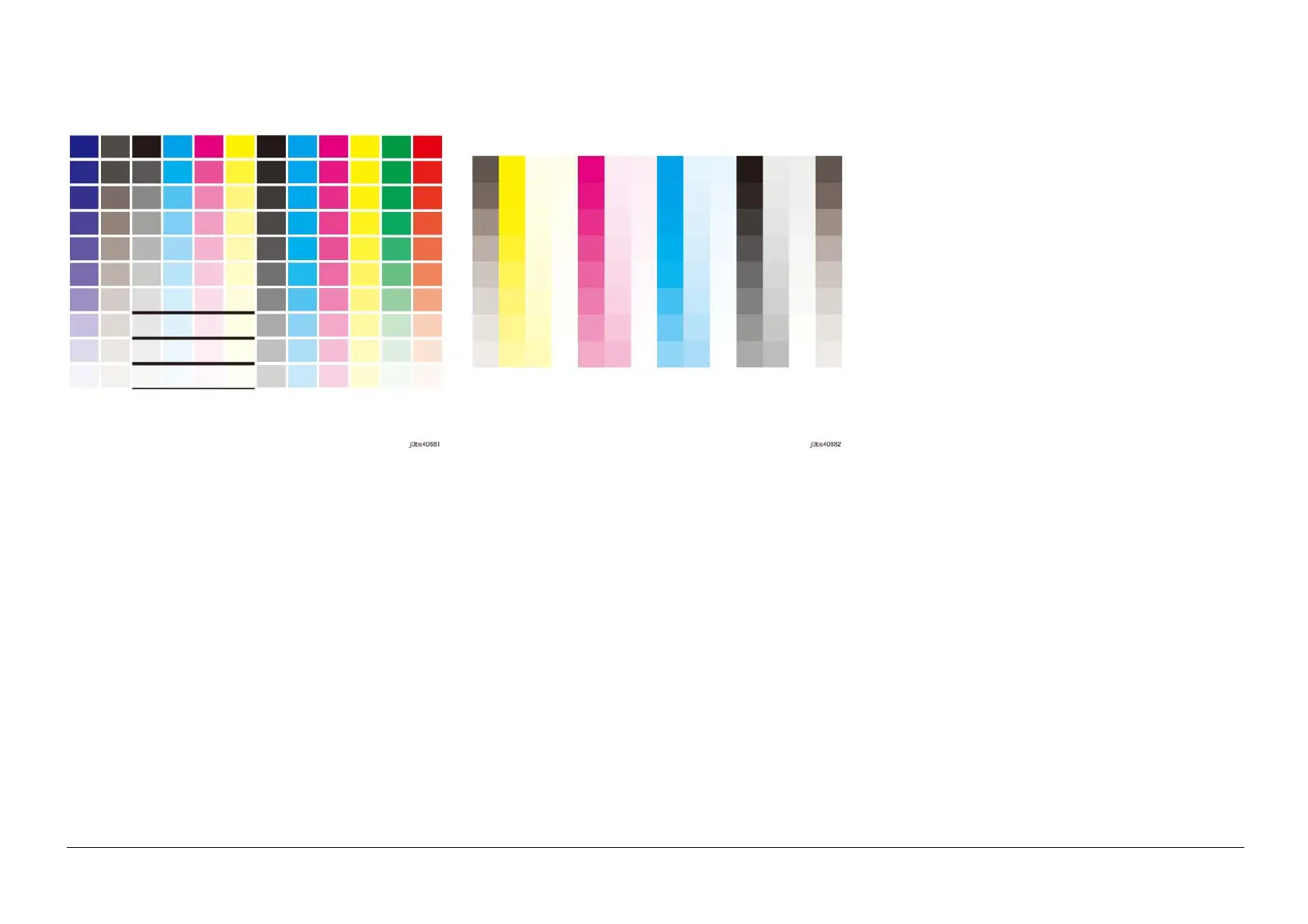

Figure 1 j0bs40881
• Calibration (Check PG)
Figure 2 j0bs40882
ADJ 8.1.7 Procon MiniSetup execution in
Key Op Mode
Purpose
• IOT will execute the MiniSetup from the execution instruction.
Action
• Perform Procon MiniSetup with KO Mode function.
• Procon Setup (FC_MiniSetup) will be executed following the
IOT specifications once the execution instruction has been
made.
This is a FC operation limited function and does not work with
BW operation.
Therefore, it will not operate when Local Fail generates (any of
Y/M/C Drum NG or Toner Cartridge NG).
Note
• There will be no display because MiniSetup only takes about
30 seconds.
Display [Printer is busy] when it cannot be performed.
To Next Page
