05/2014
5-14
DC SC2020
3. Drive
Version 1.1
Parts List

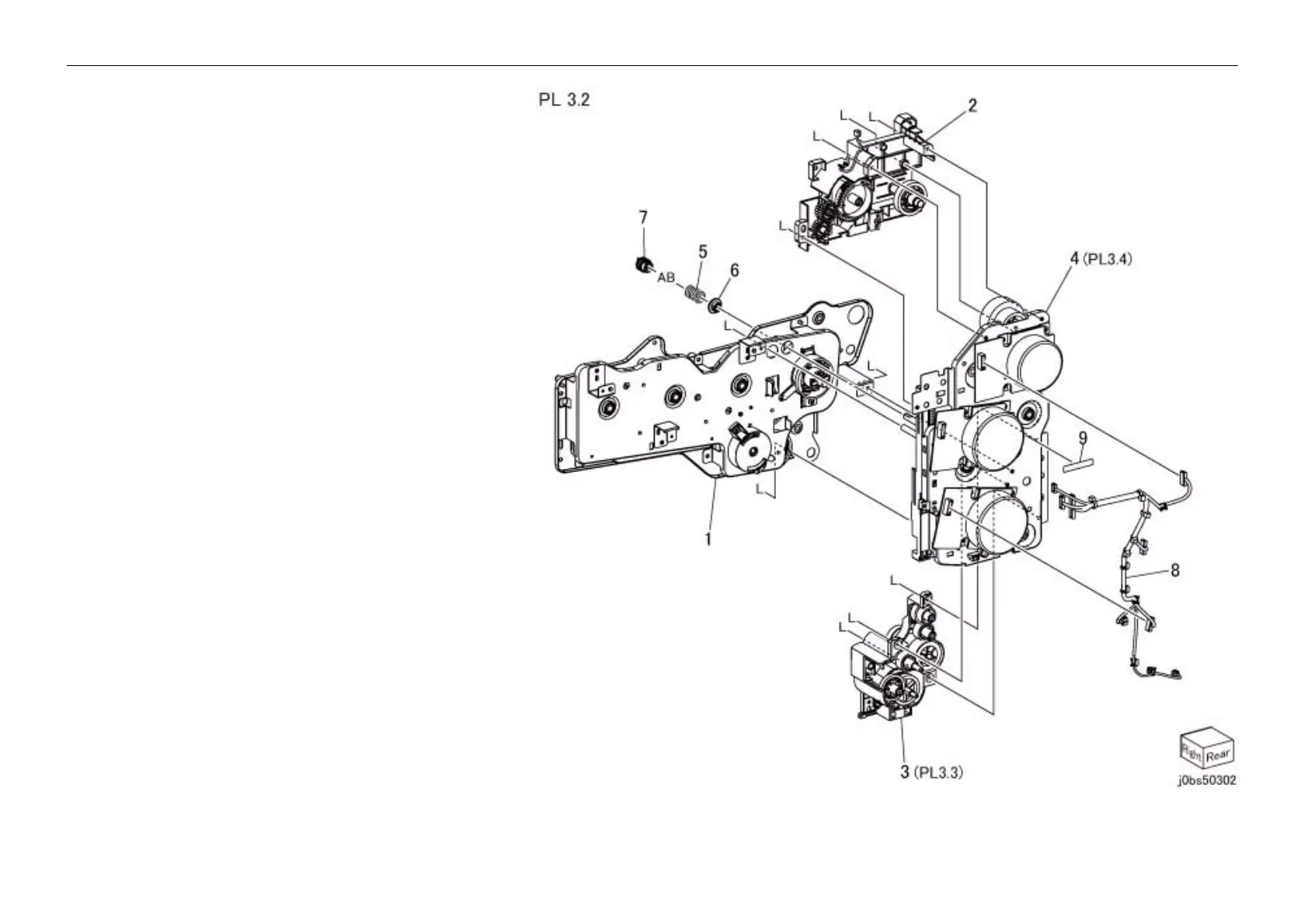

PL 3.2 Drive Component
Item Parts No Description A.C.
1 007K 98710 Main Drive Assembly
2 007K 98740 (SCC) Fusing Drive Assembly(REP 99.1.1)
3 007K 98720 (SCC) PH Drive Assembly (PL 3.3)(REP 99.1.1)
4 007K 98730 (SCC) Motor Drive Assembly (PL 3.4)(REP 99.1.1)
5– Spring
6 – Bearing
7 – Coupling
8 952K 13530 Drive Wire Harness
9 – Label
To Next Page
