05/2014
5-22
DC SC2020
5. Deve.
Version 1.1
Parts List

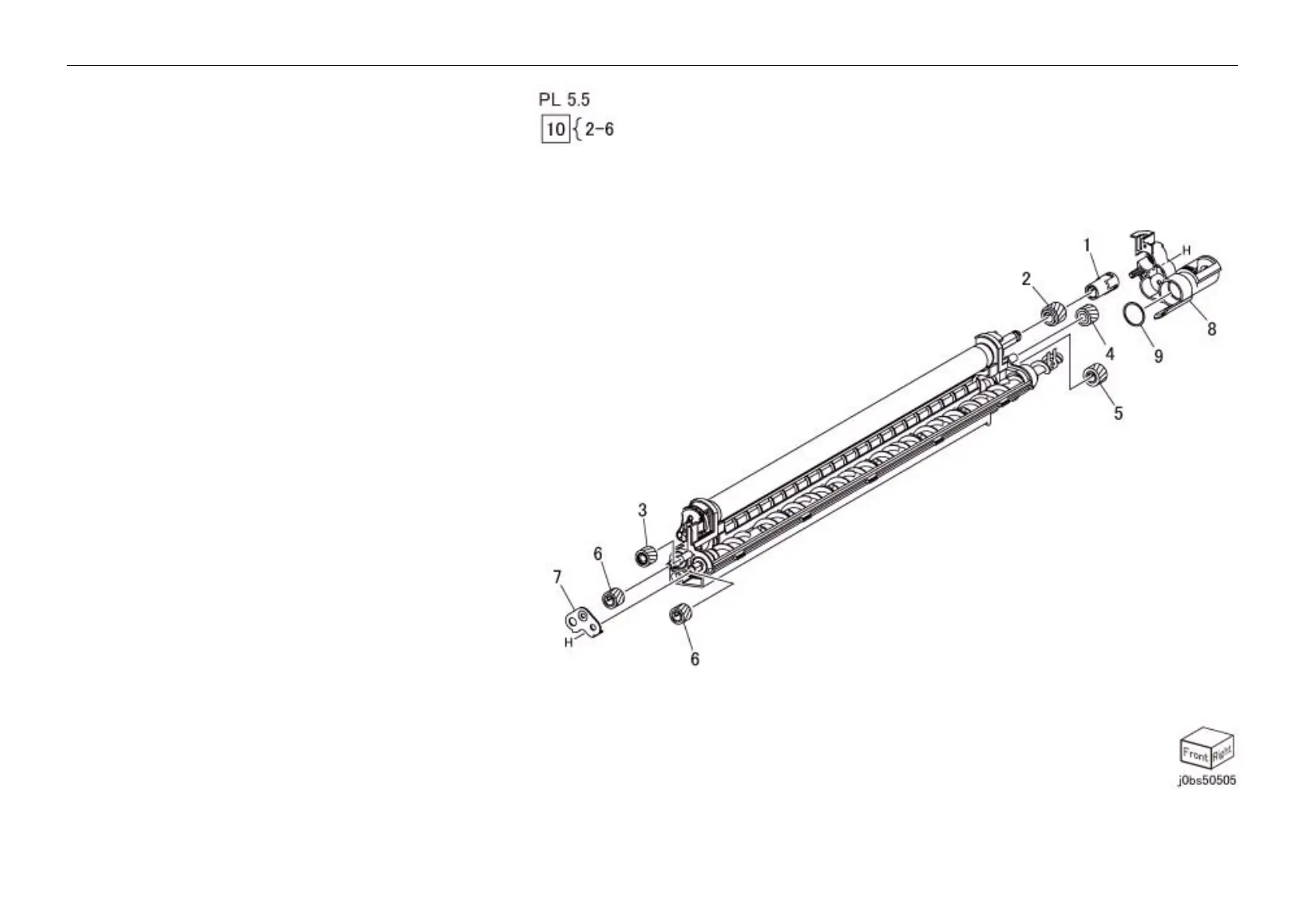

PL 5.5 Deve Assembly Component
Item Parts No Description A.C.
1 – Magnet Coupling
2 – Magnet Gear (P/O Item 10)
3 – Idler Auger Gear (P/O Item 10)
4 – Idler Rear Gear (P/O Item 10)
5 – Auger In Gear (P/O Item 10)
6 – Auger Out Gear (P/O Item 10)
7 – Gear Cover
8 – Rear Cover
9 – Side In Seal
10 604K 91200 Deve Gear Kit (Item 2-6) (REP 5.5.1)
To Next Page
