Fuji Xerox DocuCentre SC2020 Service Manual

05/2014
5-48
DC SC2020
14. L/H Cover
Version 1.1
Parts List

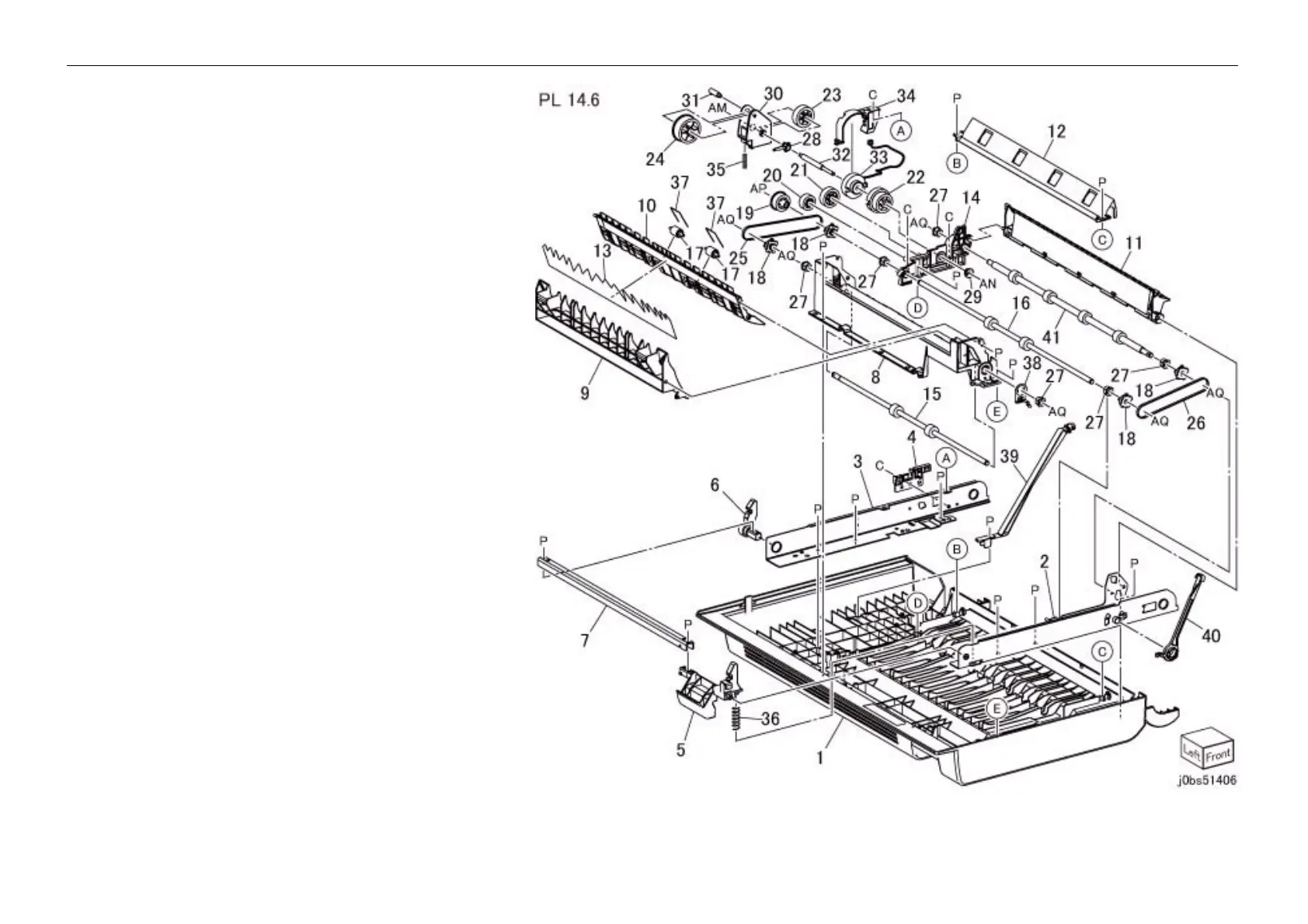

PL 14.6 Duplex L/H Cover Component
Item Parts No Description A.C.
1 822E 09741 (SCC) L/H Cover(REP 99.1.1)
2 – Front Frame
3 – Rear Frame
4 – Harnnes Guide
5 011E 28020 Front Latch Lever
6 011E 28030 Rear Latch Lever
7 – Latch Plate
8 054E 55311 Duplex Chute
9 054E 55320 Duplex In Chute
10 054E 55330 Lower Chute
11 054K 53050 Lower Chute Assembly
12 054E 55340 Duplex Out Chute
13 – Paper Guid
14 – Gear Bracket
15 059K 87410 Duplex Roll 1
16 059K 87420 Duplex Roll 2
17 059E 04010 Pinch Roll
18 – Pulley
19 – Gear
20 – Gear (21T)
21 – Gear (27T)
22 – Gear
23 – Gear
24 – Swing Gear
25 023E 28120 Belt
26 023E 28130 Belt
27 – Bearing
28 013E 33410 Bearing
29 – Bearing
30 – Swing Bracket
31 – Swing Shaft
32 – Clutch Shaft
33 121K 52130 (SCC) Duplex Clutch(REP 99.1.1)
34 822E 09690 Clutch Cover
35 – Spring
36 – Latch Spring
37 – Pinch Spring
38 – Ground Plate
39 868E 77081 Support
40 868E 48840 Support
41 059K 87430 Duplex Roll 3
