05/2014
4-15
DC SC2020
Disassembly/Assembly and Adjustment
3. Drive
Version 1.1

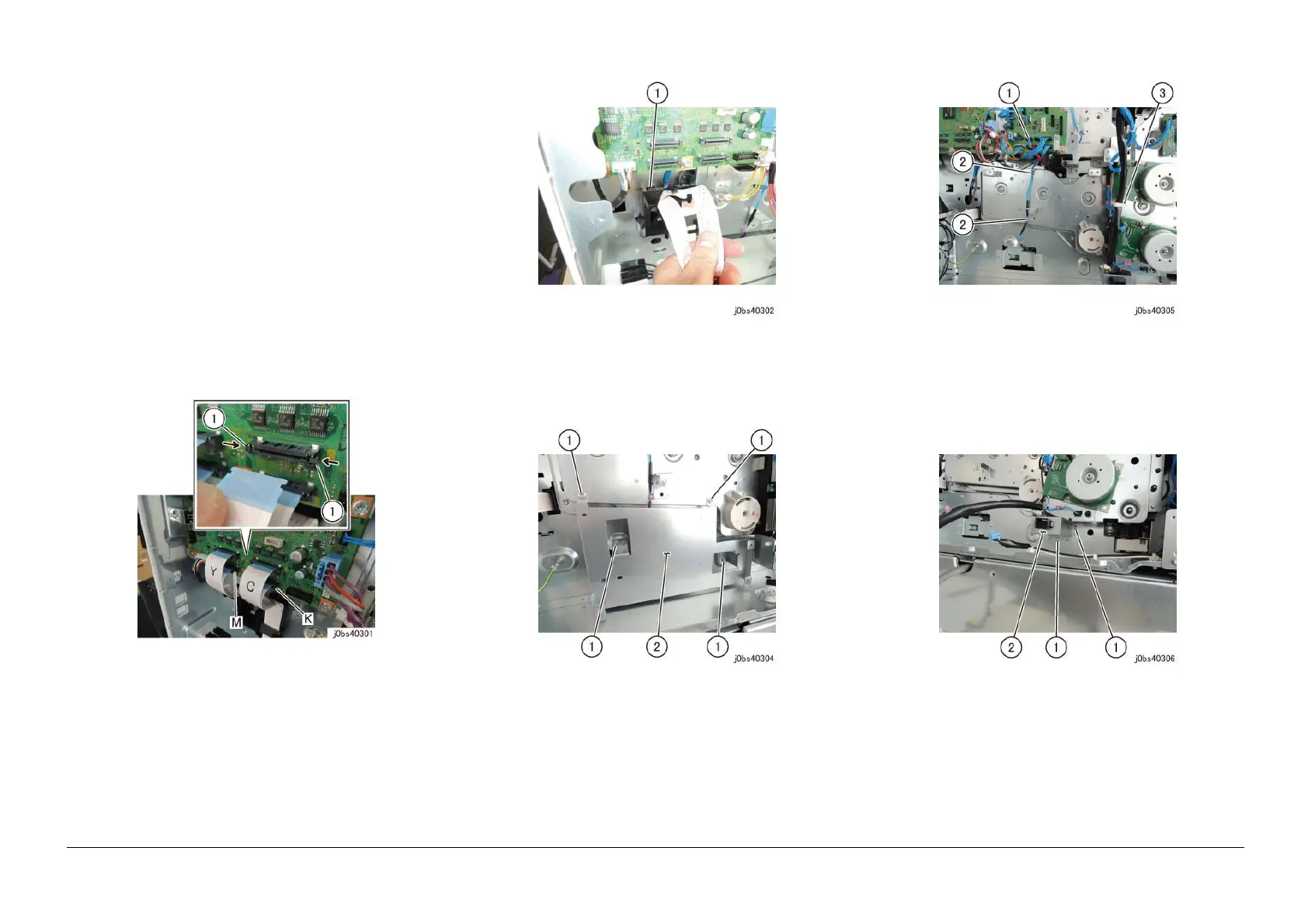

REP 3.1.1 (SCC) Drive Assembly
Parts List on PL 3.1
Removal
WARNING
When turning OFF the power switch, check that the "Data"
lamp is OFF and that there is no Job in progress.
Turn OFF the Power Switch and make sure that the screen dis-
play or energy-saving LED is turned off.
Check that the power switch is OFF and unplug the power plug.
1. Remove the Rear Cover. (REP 19.1.5)
2. Remove the LVPS. (REP 18.3.1)
3. Remove the Fusing Unit Fan. (REP 4.1.1)
4. Remove the Fusing Unit Fan Duct. (REP 4.1.2)
5. Remove the FFC Cable. (REP 4.1.2)
(1) Push Buttons (x2) simultaneously towards the direction of
the arrow and straightly remove the FFC Cable.
Figure 1 j0bs40301
6. Move the FFC Cable and the FFC Cable Guide. (Figure 2)
(1) Release the Hook and move the FFC Cable and the FFC
Cable Guide.
Figure 2 j0bs40302
7. Remove the LVPS Bracket. (Figure 3)
(1) Remove the Screws (x4).
(2) Remove the LVPS Bracket.
Figure 3 j0bs40304
8. Remove the Wire Harness secured on the Drive Assembly.
(Figure 4)
(1) Disconnect the connector.
(2) Remove the cable band (x2).
(3) Release the clamp and remove the wire harness.
Figure 4 j0bs40305
9. Remove the STM Connector Bracket. (Figure 5)
(1) Remove the Screw (Round Point: 2).
(2) Remove the STM Connector Bracket.
Figure 5 j0bs40306
10. Open the L/H Cover.
11. Remove the Fusing Unit. (REP 7.1.1)
12. Remove the Xero Unit. (REP 8.1.1)
13. Remove the Deve Unit. (REP 5.1.1)
14. Remove the Screw that secures the Drive Assembly. (Figure 6)
(1) Remove the Screws (x9).
To Next Page
