05/2014
4-65
DC SC2020
Disassembly/Assembly and Adjustment
17. Exit
Version 1.1
REP 17.1.1 Exit Roll
Parts List on PL 17.1
Removal
WARNING
When turning OFF the power switch, check that the "Data"
lamp is OFF and that there is no Job in progress.
Turn OFF the Power Switch and make sure that the screen dis-
play or energy-saving LED is turned off.
Check that the power switch is OFF and unplug the power plug.
NOTE: Place the drop cloth or newspapers at the servicing area to
keep the site clean.

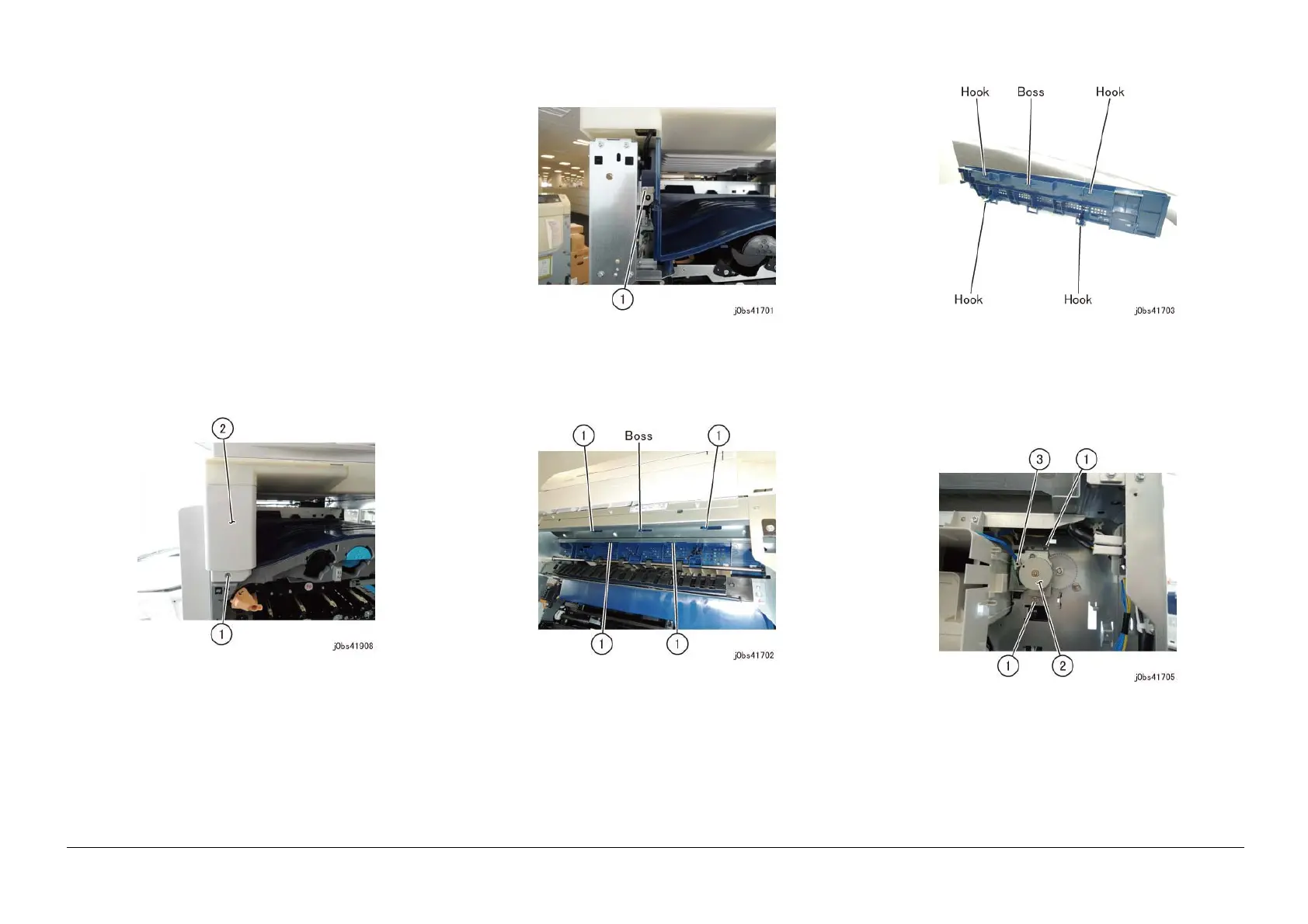

1. Open the L/H Cover.
2. Remove the Rear Cover. (REP 19.1.5)
3. Remove the Pillar Left Cover. (Figure 1)
(1) Remove the screw.
(2) Remove the Pillar Left Cover.
Figure 1 j0bs41908
4. Remove the Screw that secures the Front Exit Cover. (Figure
2)
(1) Remove the screw.
Figure 2 j0bs41701
5. Remove the Exit Cover. (Figure 3)
(1) Release the Hook (x4) that secures the Exit Cover on the
Left side.
Figure 3 j0bs41702
Reference: This shows the removed Exit Cover Hook (x4).
(Figure 4)
Figure 4 j0bs41703
6. Duplex Type Only: Remove the Invert Motor. (Figure 5)
(1) Remove the Screws (x2).
(2) Remove the Invert Motor.
(3) Disconnect the connector.
Figure 5 j0bs41705
7. Remove the gear. (Figure 6)
(1) Remove the E-Clip.
(2) Remove the gear.
To Next Page
