Fuji Xerox DocuCentre SC2020

05/2014
5-25
DC SC2020
Parts List
6. Transfer
Version 1.1

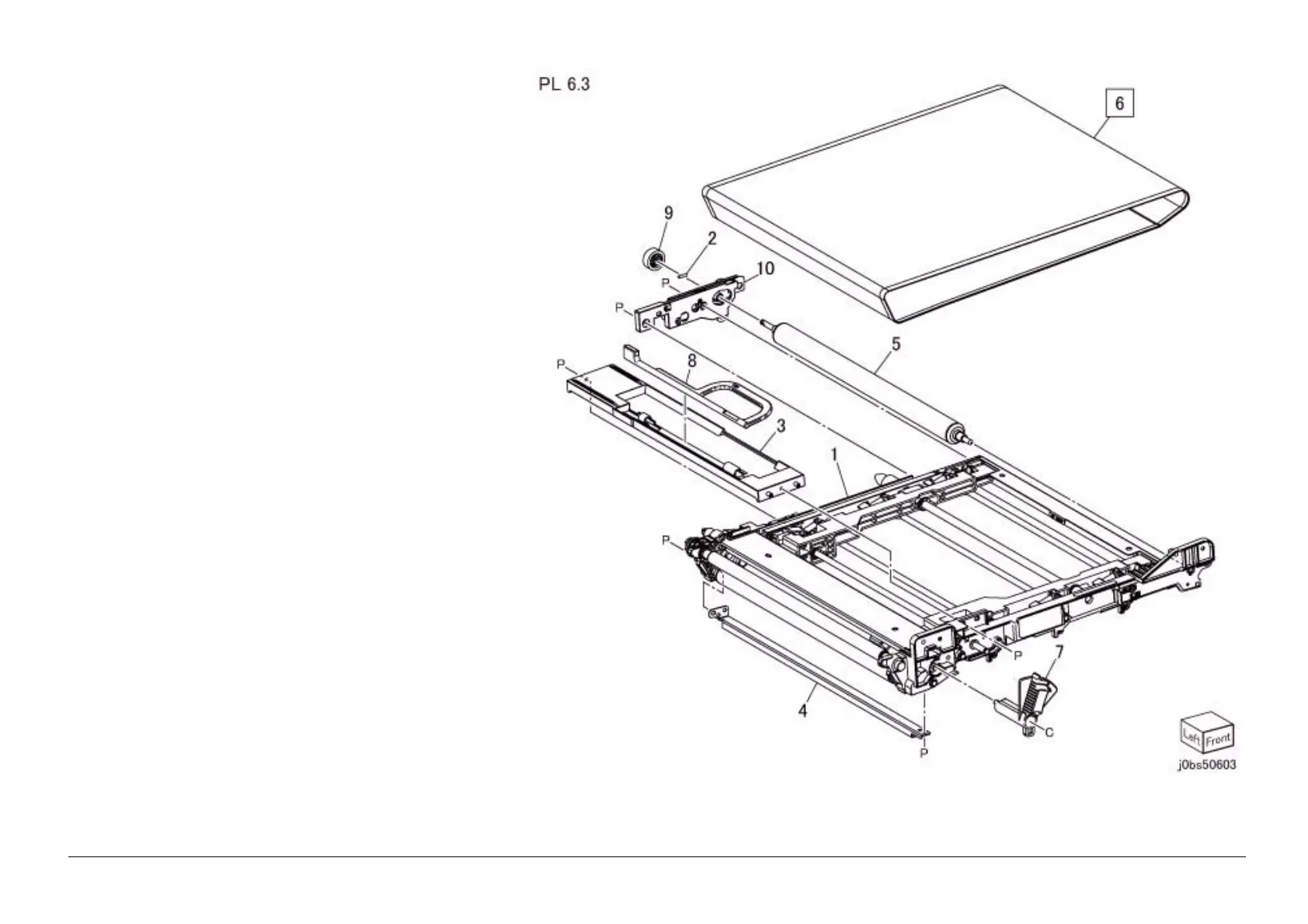

PL 6.3 IBT Belt Assembly Component
Item Parts No Description A.C.
1 – IBT Belt Housing
2– Pin
3 019E 86500 Handle Holder
4– Guide
5 – Tension Roll
6 064K 93512 IBT Belt (REP 6.3.1)
7 803E 18690 Retract Handle
8 803E 18700 Handle
9 – Tension Gear
10 – Rear Holder
