05/2014
4-59
DC SC2020
Disassembly/Assembly and Adjustment
14. L/H Cover
Version 1.1
REP 14.1.1 L/H Cover
Parts List on PL 14.1
Removal
WARNING
When turning OFF the power switch, check that the "Data"
lamp is OFF and that there is no Job in progress.
Turn OFF the Power Switch and make sure that the screen dis-
play or energy-saving LED is turned off.
Check that the power switch is OFF and unplug the power plug.
1. Remove the MSI. (REP 13.1.1)
2. Pull out Tray 1 slightly and remove the screw that secures the
Hinge Front Cover. (Figure 1)
(1) Remove the screw.

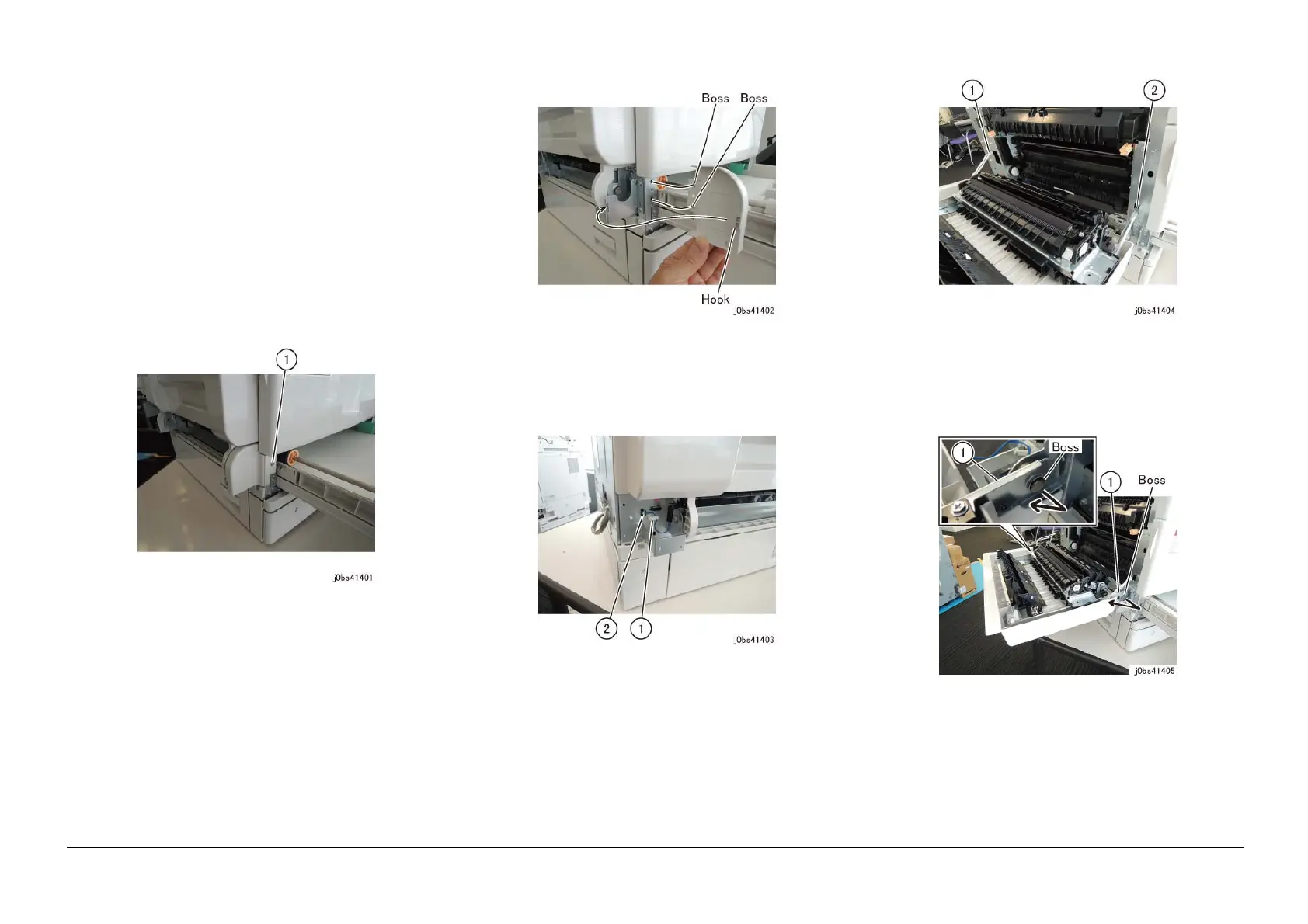

Figure 1 j0bs41401
3. Pull out the Boss (x2) from the mounting hole, release the
Hook and remove the Hinge Front Cover.
(Figure 2)
Figure 2 j0bs41402
4. [Duplex Type]: Disconnect the connector. (Figure 3)
(1) Disconnect the connector.
Figure 3 j0bs41403
5. Pull out the L/H Cover Support (x2). (Figure 4)
(1) Turn it 90 degrees and pull out the Rear L/H Cover Sup-
port.
(2) Turn it 90 degrees and pull out the Front L/H Cover Sup-
port.
Figure 4 j0bs41404
6. Open the L/H Cover 90 degrees and remove the L/H Cover.
(Figure 5)
(1) Remove the L/H Cover towards the direction of the arrow
from the Boss (x2).
Figure 5 j0bs41405
Replacement
1. To install, carry out the removal steps in reverse order.
2. Note the following when installing the Rear L/H Cover. (Figure
6)
• Tilt the L/H Cover Boss Hole Bracket as shown in the fig-
ure and insert into the Boss Bracket.
To Next Page
