05/2014
4-50
DC SC2020
10. One Tray Module (Tray 2)
Version 1.1
Disassembly/Assembly and Adjustment
REP 10.3.1 Tray 2 Feed/Nudger Roll and
Retard Pad
Parts List on PL 10.3
Removal
WARNING
When turning OFF the power switch, check that the "Data"
lamp is OFF and that there is no Job in progress.
Turn OFF the Power Switch and make sure that the screen dis-
play or energy-saving LED is turned off.
Check that the power switch is OFF and unplug the power plug.
NOTE: The replacement interval for Tray 2 Feed Roll/Tray 2 Nudger
Roll is 300K Feed, and the replacement interval for Tray 2 Retard
Pad is 50K Feed.
1. Remove Tray 2.
2. Open the STM L/H Cover.
3. Remove the Tray 2 Feeder. (REP 10.1.1)

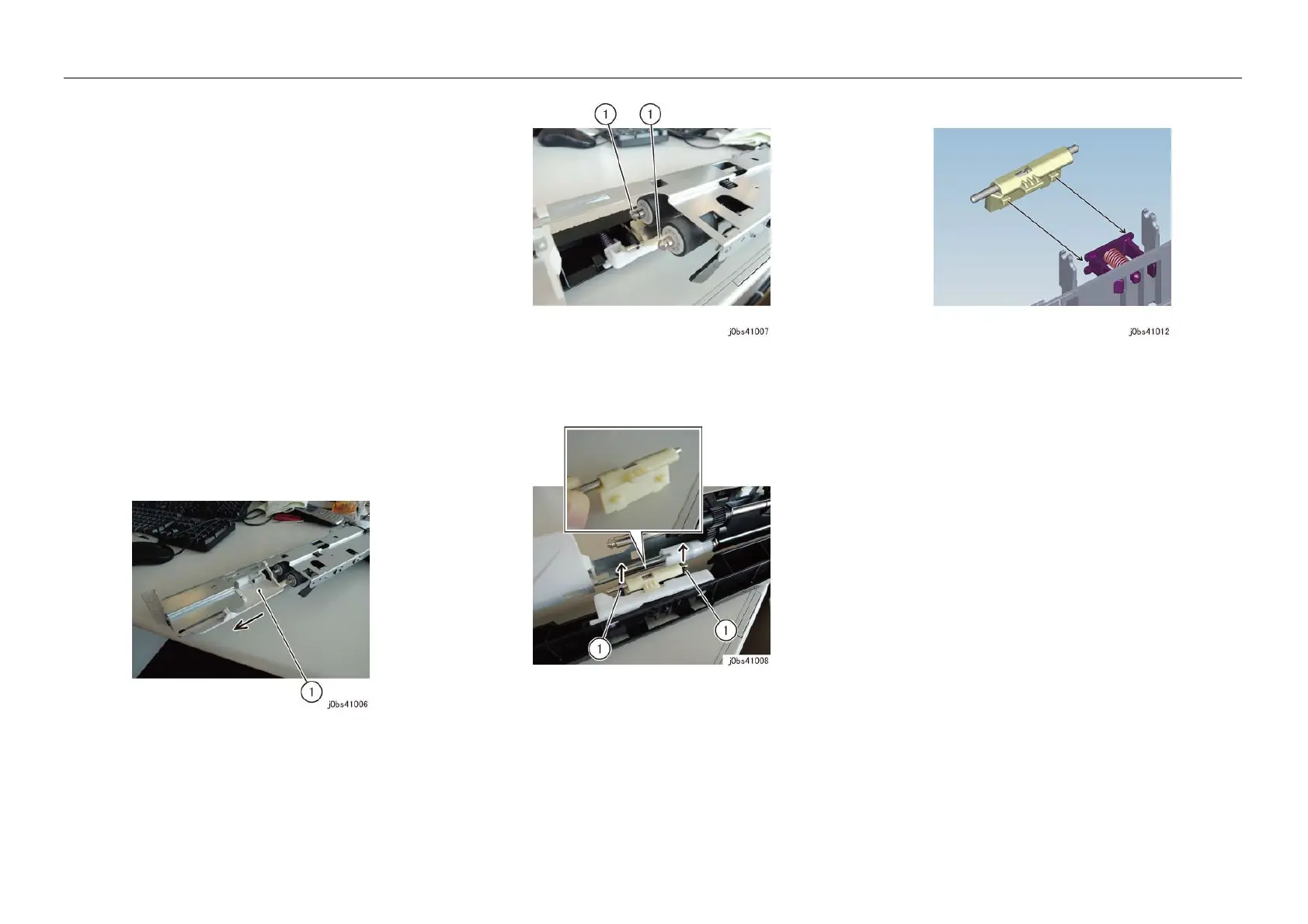

4. Move the chute. (Figure 1)
(1) Move the chute.
Figure 1 j0bs41006
5. Remove the Feed Roll /Nudger Roll. (Figure 2)
(1) Release the Hook and remove the Feed Roll /Nudger
Roll.
Figure 2 j0bs41007
6. Remove the Retard Pad and Shaft. (Figure 3)
(1) Pull the Shaft out from the installed position.
Figure 3 j0bs41008
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the Retard Pad and Shaft, put the Retard Pad
and Shaft Tab (x2) into the Spring Holder Cutout. (Figure 4)
Figure 4 j0bs41012
3. After installing Tray 2 Feed and Tray 2 Nudger Roll, enter CS
mode and initialize with Printer Diag > Parameter > Life >
Tray2 F/R/Roll to reset the life counter.
To Next Page
