05/2014
4-56
DC SC2020
13. MSI
Version 1.1
Disassembly/Assembly and Adjustment
REP 13.3.1 MSI Nudger/Feed Roll
Parts List on PL 13.3
Removal
WARNING
When turning OFF the power switch, check that the ’Data’ lamp
is OFF and that there is no Job in progress.
Turn OFF the power switch and make sure that the screen dis-
play or the Power Saver LED turns OFF.
Check that the power switch is OFF and unplug the power plug.
NOTE: The MSI Nudger Roll, the MSI Feed Roll, and the MSI
Retard Pad must be replaced at the same time.
1. Remove the MSI. (REP 13.1.1)

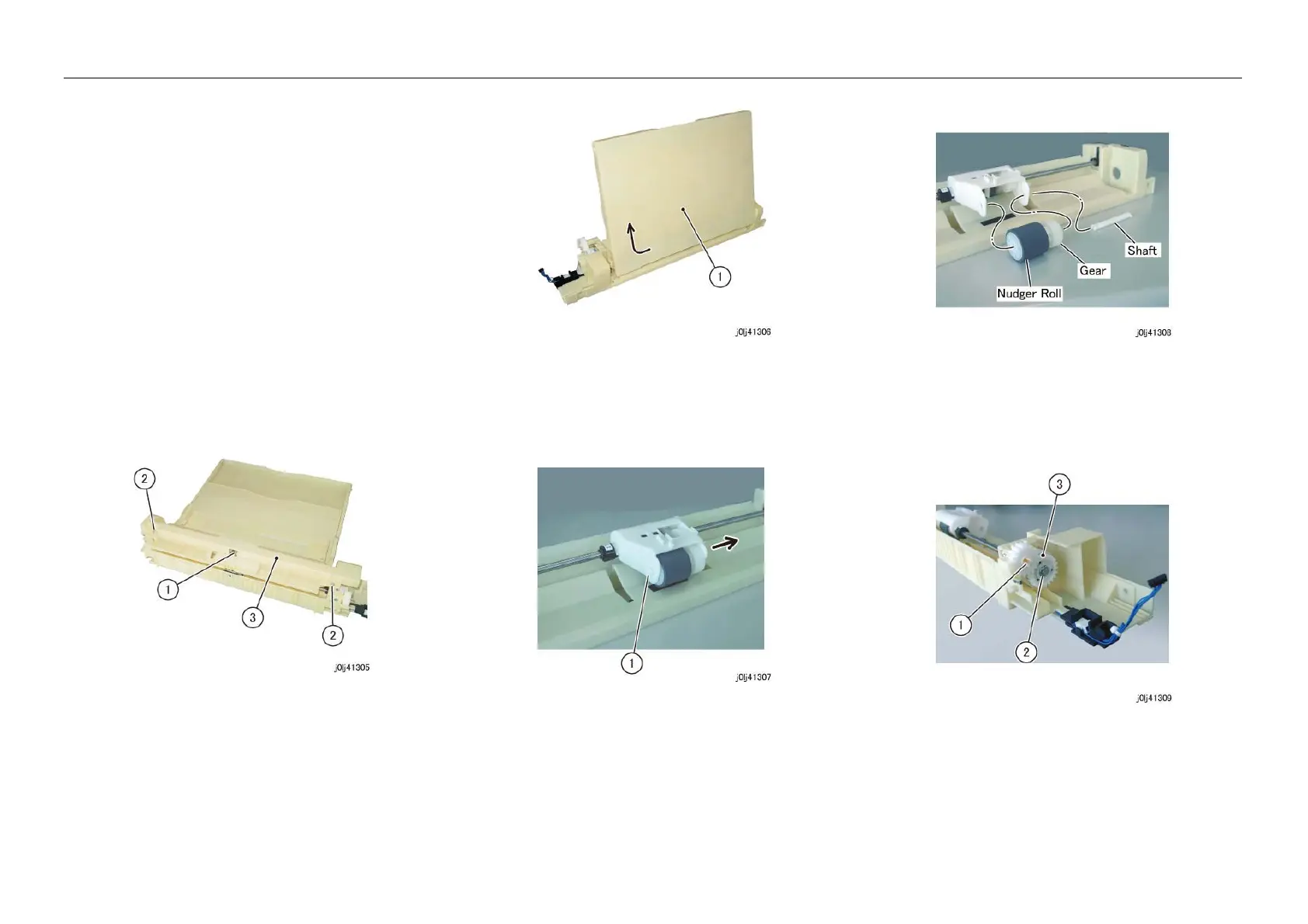

2. Remove the MSI Top Cover. (Figure 1)
(1) Remove the spring.
(2) Remove the Tapping Screw (x2).
(3) Remove the MSI Top Cover.
Figure 1 j0lj41305
3. Remove the MSI Tray. (Figure 2)
(1) Remove the MSI Tray in the direction of the arrow.
Figure 2 j0lj41306
4. Remove the shaft of the MSI Nudger Roll. (Figure 3)
(1) Release the hook of the shaft and remove the shaft in the
direction of the arrow.
Figure 3 j0lj41307
5. Remove the MSI Nudger Roll. (Figure 4)
Figure 4 j0lj41308
6. Shift the MSI Feed Clutch from the shaft. (Figure 5)
(1) Release the hook to remove the gear.
(2) Remove the E-Clip.
(3) Shift the MSI Feed Clutch from the shaft.
Figure 5 j0lj41309
7. Remove the MSI Feed Roll Assembly. (Figure 6)
(1) Remove the E-Clip (x2).
(2) Remove the MSI Feed Roll Assembly.
To Next Page
