Fuji Xerox DocuCentre SC2020

05/2014
4-89
DC SC2020
Disassembly/Assembly and Adjustment
56. DADF
Version 1.1

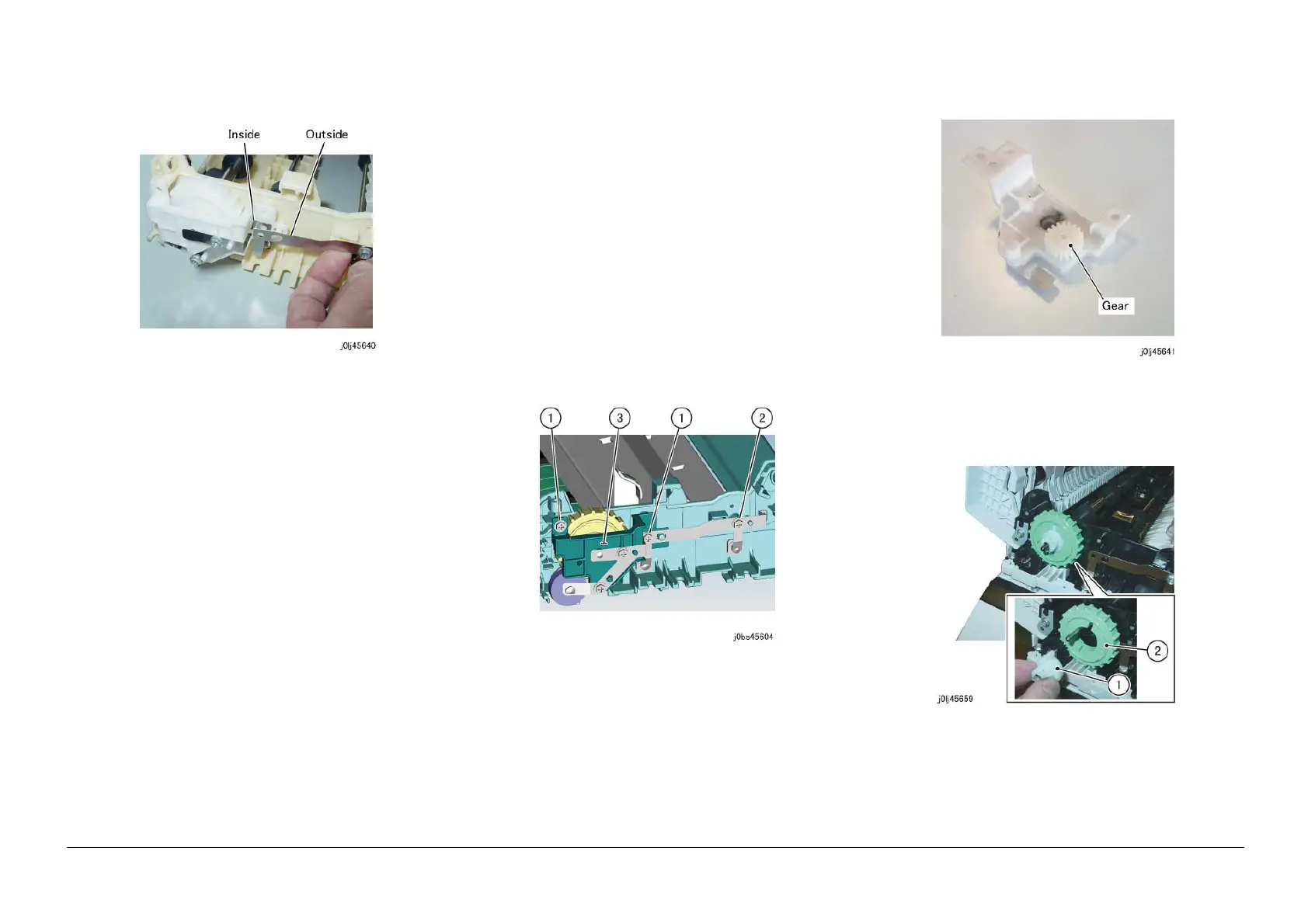

2. When installing the Bracket and Ground Plate, install the
Ground Plate as shown in the figure. (Figure 10)
Figure 10 j0lj45640
REP 56.10.2 Sensor Bracket
Parts List on PL 56.10
Removal
WARNING
When turning OFF the power switch, check that the ’Data’ lamp
is OFF and that there is no Job in progress.
Turn OFF the power switch and make sure that the screen dis-
play or the Power Saver LED turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the DADF Front Cover. (REP 56.2.1)
2. Remove the DADF Rear Cover. (REP 56.2.2)
3. Remove the Invert Chute. (REP 56.9.3)
4. Remove the Bracket and Ground Plate at the front. (Figure 1)
(1) Remove the Tapping Screw (x2).
(2) Loosen the screw.
(3) Remove the Bracket and Ground Plate.
Figure 1 j0bs45604
NOTE: Be careful so as to not lose the gear under the Bracket
and Ground Plate. (Figure 2)
Figure 2 j0lj45641
5. Remove the Knob Handle. (Figure 3)
(1) Remove the gear.
(2) Remove the Knob Handle.
Figure 3 j0lj45659
6. Remove the Bearing of the DADF Takeaway Roll. (Figure 4)
(1) Remove the KL-Clip.
(2) Remove the Bearing.
