05/2014
4-88
DC SC2020
56. DADF
Version 1.1
Disassembly/Assembly and Adjustment

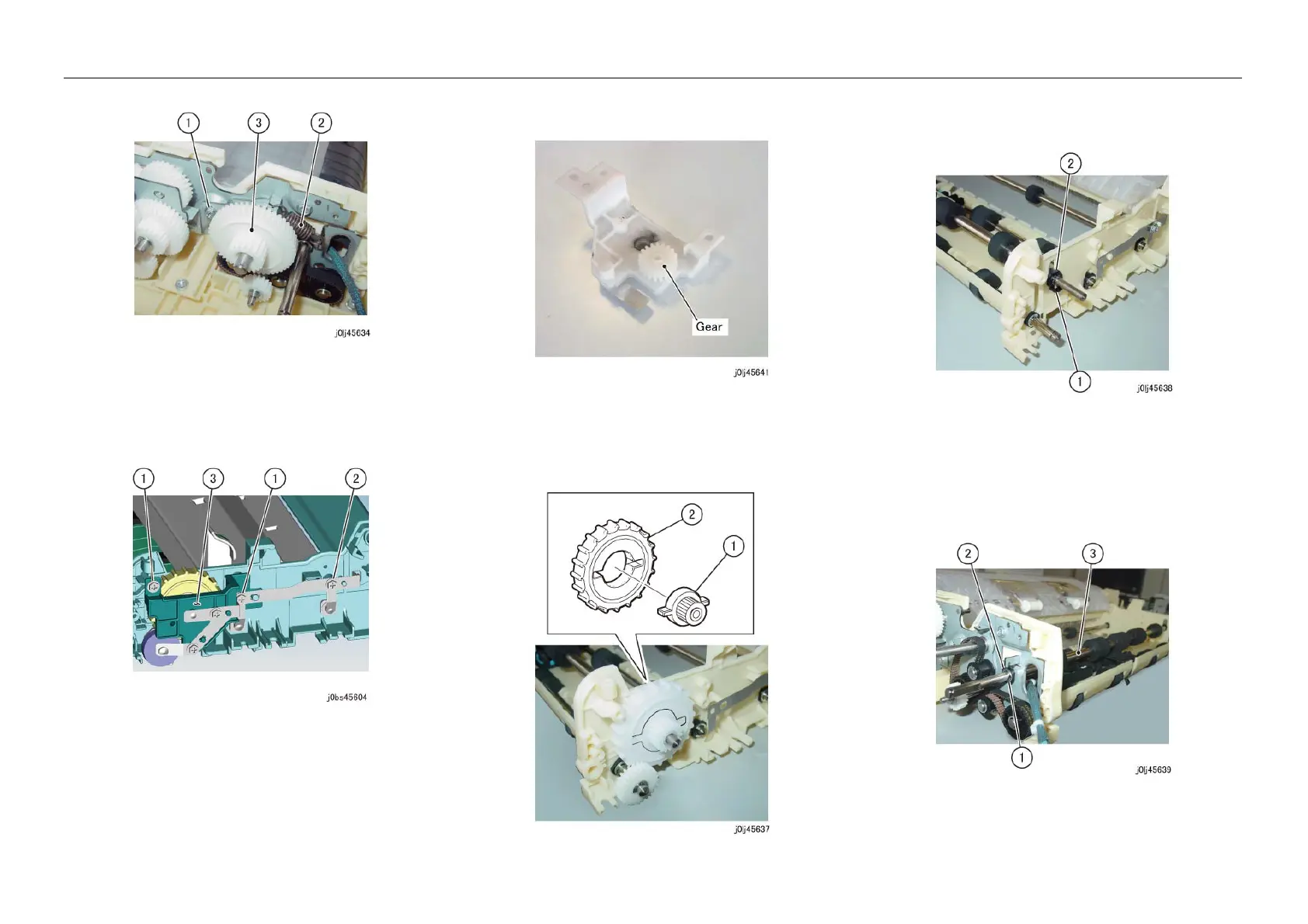

Figure 4 j0lj45634
12. Remove the Bracket and Ground Plate at the front. (Figure 5)
(1) Remove the Tapping Screw (x2).
(2) Loosen the screw.
(3) Remove the Bracket and Ground Plate.
Figure 5 j0bs45604
NOTE: Be careful so as to not lose the gear under the Bracket
and Ground Plate. (Figure 6)
Figure 6 j0lj45641
13. Remove the Knob Handle. (Figure 7)
(1) Remove the gear.
(2) Remove the Knob Handle.
Figure 7 j0lj45637
14. Remove the bearing at the front. (Figure 8)
(1) Remove the KL-Clip.
(2) Remove the Bearing.
Figure 8 j0lj45638
15. Remove the bearing at the rear and remove the DADF Take-
away Roll. (Figure 9)
(1) Remove the E-Clip.
(2) Remove the Bearing.
(3) Remove the DADF Takeaway Roll.
Figure 9 j0lj45639
Replacement
1. To install, carry out the removal steps in reverse order.
To Next Page
