DC SC2020
Parts List
56. DADF
Version 1.1

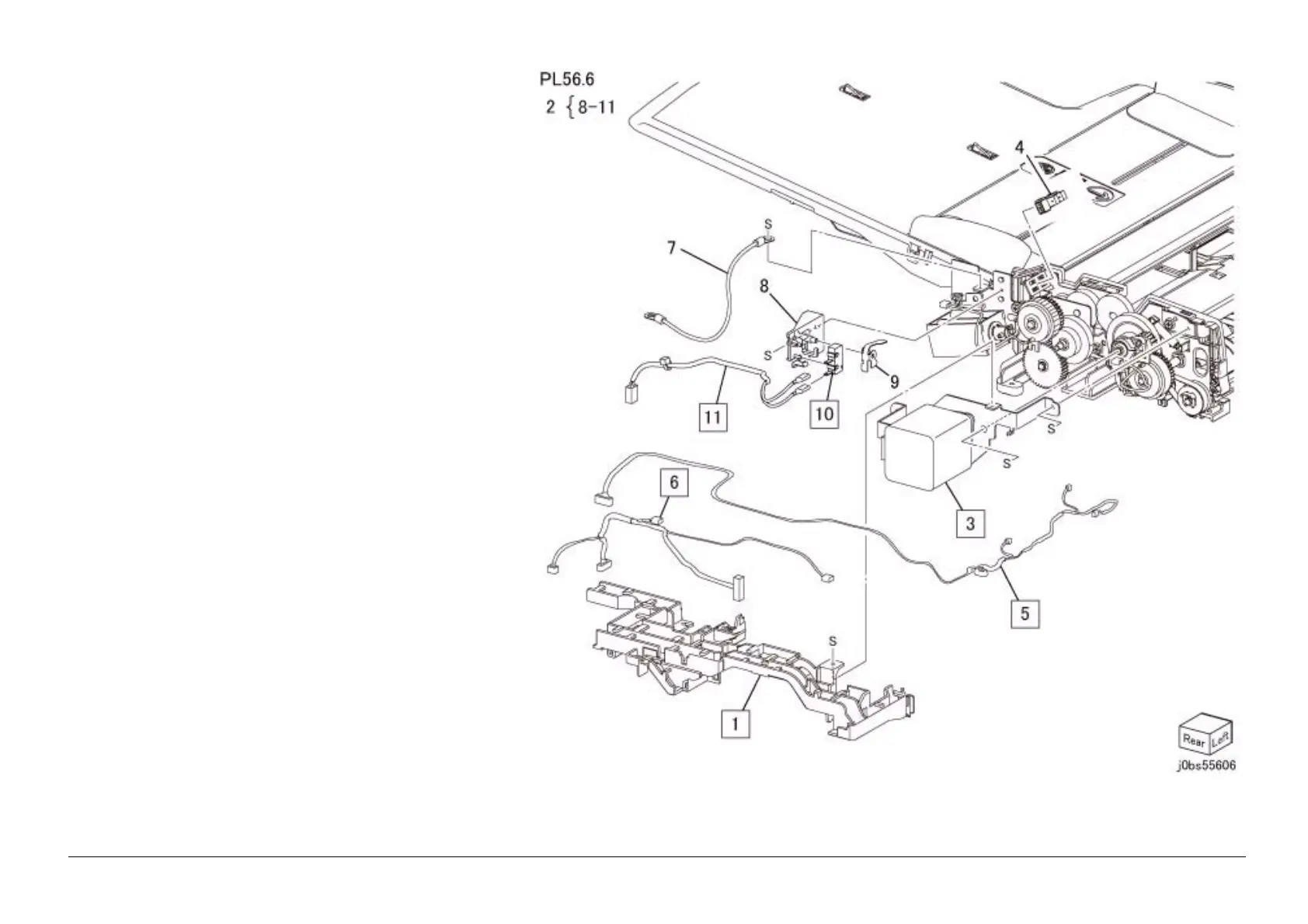

PL 56.6 DADF Feed Motor,Harness Guide
Item Parts No Description A.C.
1 032E 40210 Harness Guide (REP 56.6.1)
2 110K 17140 DADF Feeder Cover Interlock Switch
3 127K 66690 DADF Feed Motor (REP 56.6.2)
4 930W 00121 DADF Document Set Sensor
5 952K 03530 (SCC) Wire Harness (Sensor)(REP 99.1.1)
6 952K 03510 (SCC) Wire Harness (Motor/Clutch)(REP 99.1.1)
7 117K 38960 Ground Wire
8 – Bracket (P/O Item 2)
9 – Spring (P/O Item 2)
10 – (SCC) DADF Feeder Cover Interlock Switch (P/O
Item 2) (REP 99.1.1)
11 952K 03500 (SCC) Wire Harness (REP 99.1.1)
To Next Page
