05/2014
4-22
DC SC2020
5. Development
Version 1.1
Disassembly/Assembly and Adjustment

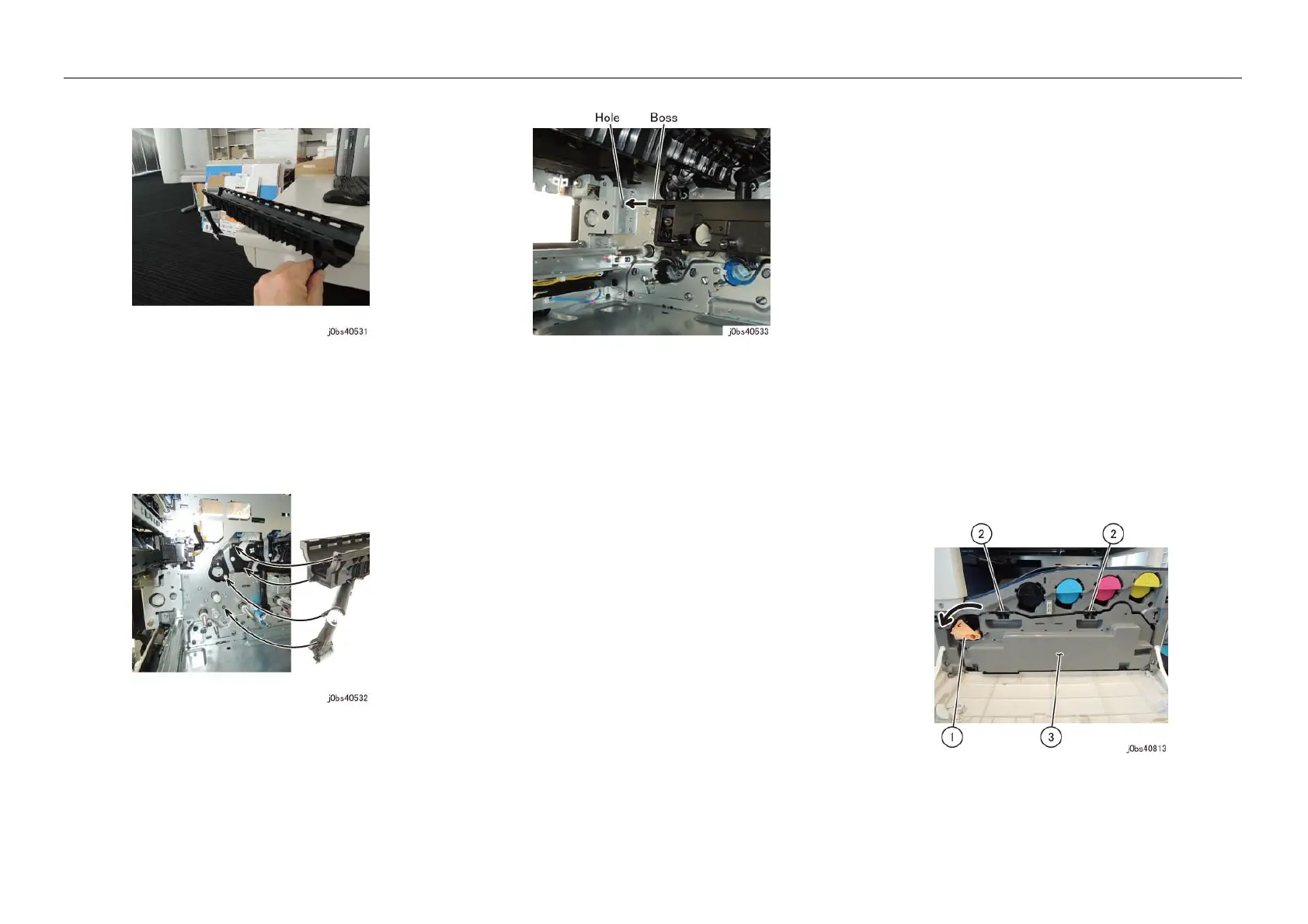

Figure 3 j0bs40531
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the Dispenser (K), insert the Boss (x4) of Rear
Dispenser (K) into the mounting hole. (Figure 4)
Figure 4 j0bs40532
3. When installing the Conductor Housing, insert the Boss of Rear
Conductor Housing into the mounting hole. (Figure 5)
Figure 5 j0bs40533
REP 5.4.1 Deve Assembly
Parts List on PL 5.4
Removal
WARNING
When turning OFF the power switch, check that the "Data"
lamp is OFF and that there is no Job in progress.Turn OFF the
Power Switch and make sure that the screen display or energy-
saving LED is turned off.Check that the power switch is OFF
and unplug the power plug.
CAUTION
To prevent light fatigue, either wrap the removed Drum by using a
sheet of black paper or store it in a black bag.
NOTE: Place the drop cloth or newspapers at the servicing area to
keep the site clean.
1. Prepare a sheet of black paper or a black bag.
2. Open the Front Cover.
3. Remove the Waste Bottle. (Figure 1)
(1) Turn the Retract Handle in counterclockwise direction.
(2) Release the hook (x2).
(3) Remove the Waste Bottle.
Figure 1 j0bs40813
4. Turn the replacement target color Lever (R1-R4) towards the
direction of the arrow.
5. Remove Y, M, C, K of the Xero Unit. (Figure 2)
(1) Remove the screw (long).
To Next Page
