05/2014
4-77
DC SC2020
Disassembly/Assembly and Adjustment
56. DADF
Version 1.1

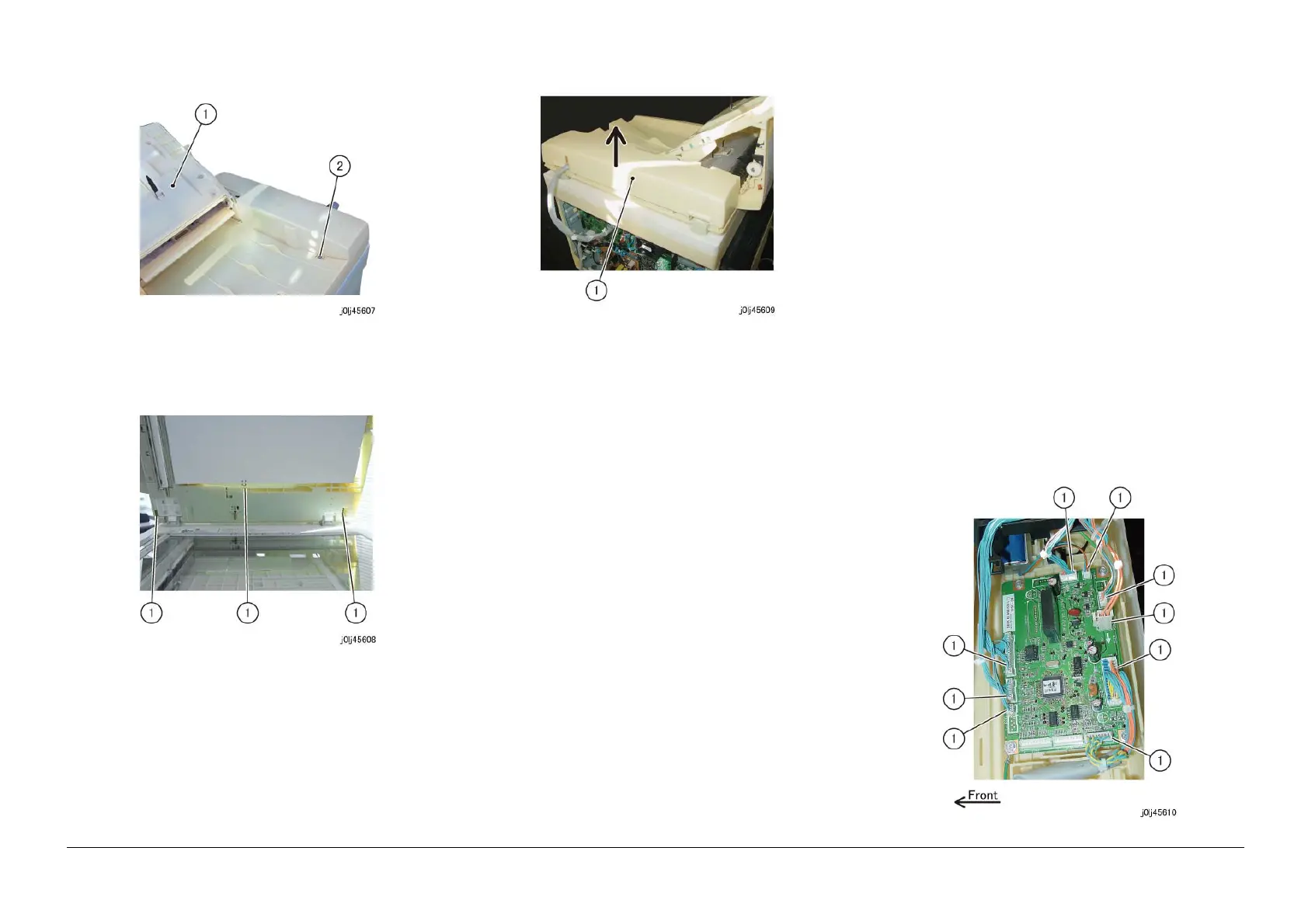

Figure 2 j0lj45607
3. Release the hook (x3) of the DADF Rear Cover. (Figure 3)
(1) Release the hook (x3).
Figure 3 j0lj45608
4. Remove the DADF Rear Cover. (Figure 4)
(1) Remove the DADF Rear Cover in the direction of the
arrow.
Figure 4 j0lj45609
Replacement
1. To install, carry out the removal steps in reverse order.
REP 56.2.3 (SCC) DADF PWB
Parts List on PL 56.2
Removal
WARNING
When turning OFF the power switch, check that the ’Data’ lamp
is OFF and that there is no Job in progress.
Turn OFF the power switch and make sure that the screen dis-
play or the Power Saver LED turns OFF.
Check that the power switch is OFF and unplug the power plug.
CAUTION
Static electricity may damage electrical parts.
Static electricity may damage electrical parts. Always wear a wrist
band during servicing. If a wrist band is not available, touch some
metallic parts before servicing to discharge the static electricity.
CAUTION
Do not get yourself hurt by a soldered portion on the back of the
PWB.
1. Remove the DADF Rear Cover. (REP 56.2.2)
2. Disconnect the connector. (Figure 1)
(1) Disconnect the connector (x9).
Figure 1 j0lj45610
To Next Page
