05/2014
5-64
DC SC2020
56. DADF
Version 1.1
Parts List

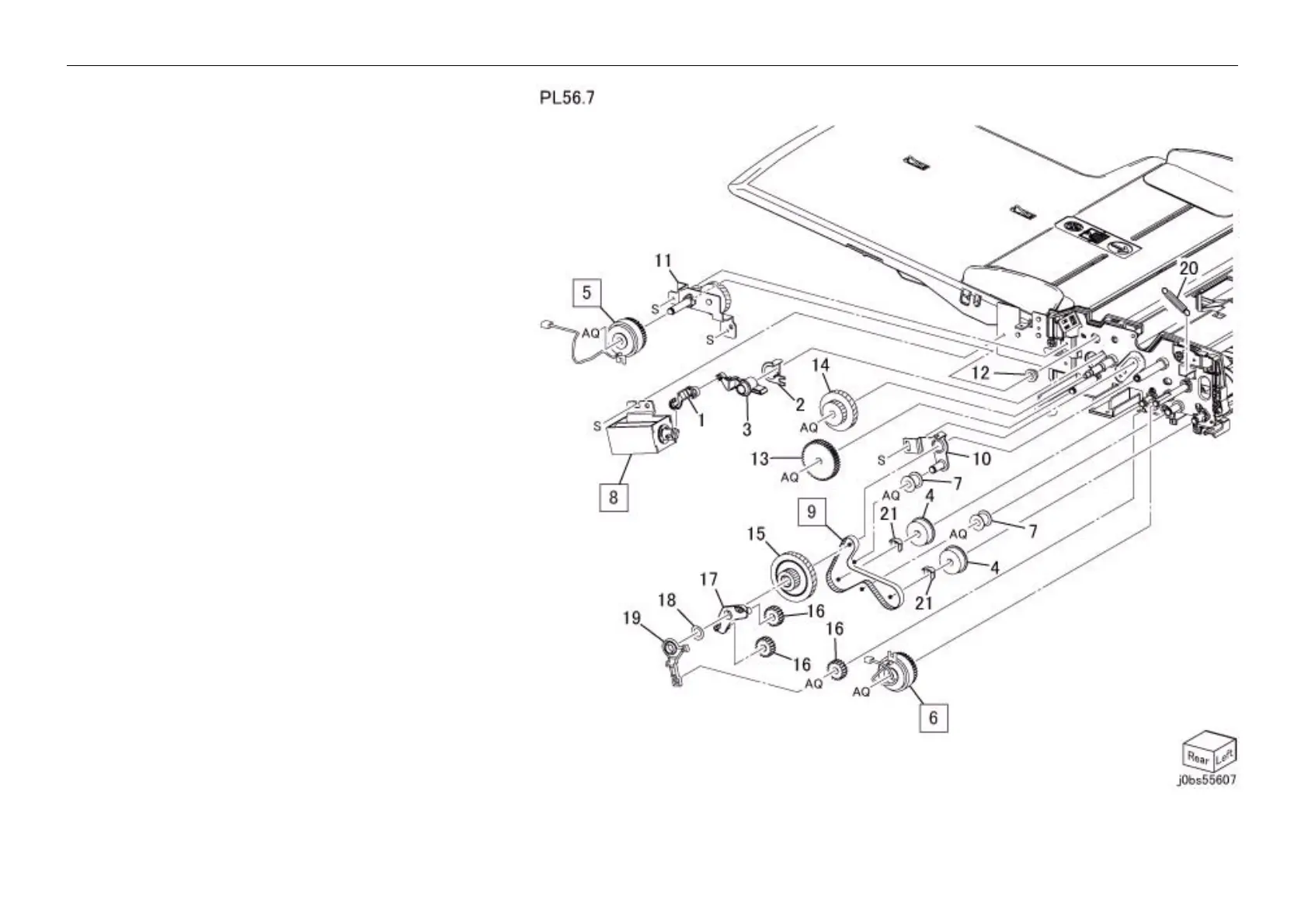

PL 56.7 DADF Feeder Rear Frame
Item Parts No Description A.C.
1 012E 18260 Release Link
2 013E 41200 Set Bearing
3 012E 18270 Exit Link
4 020E 46551 Pulley
5 121K 52310 (SCC) DADF Feed Clutch (REP 99.1.1)
6 121K 52310 (SCC) DADF Takeaway Clutch (REP 99.1.1)
7– Roll
8 121K 52470 (SCC) Exit Nip Release Solenoid (REP 99.1.1)
9 423W 32055 DADF Drive Belt (REP 56.7.1)
10 – Tension Bracket
11 049K 18190 Clutch Gear and Bracket
12 413W 85459 Bearing
13 807E 40790 Gear (42T)
14 807E 40800 Gear (40/24T)
15 807E 40830 Gear Pulley
16 807E 40840 Gear (19T)
17 868E 80570 Bracket
18 899E 01570 Washer
19 012E 18290 Link
20 899E 01581 Spring
21 – KL-Clip
To Next Page
