DC SC2020
Parts List
10. One Tray Module (Tray 2)
Version 1.1

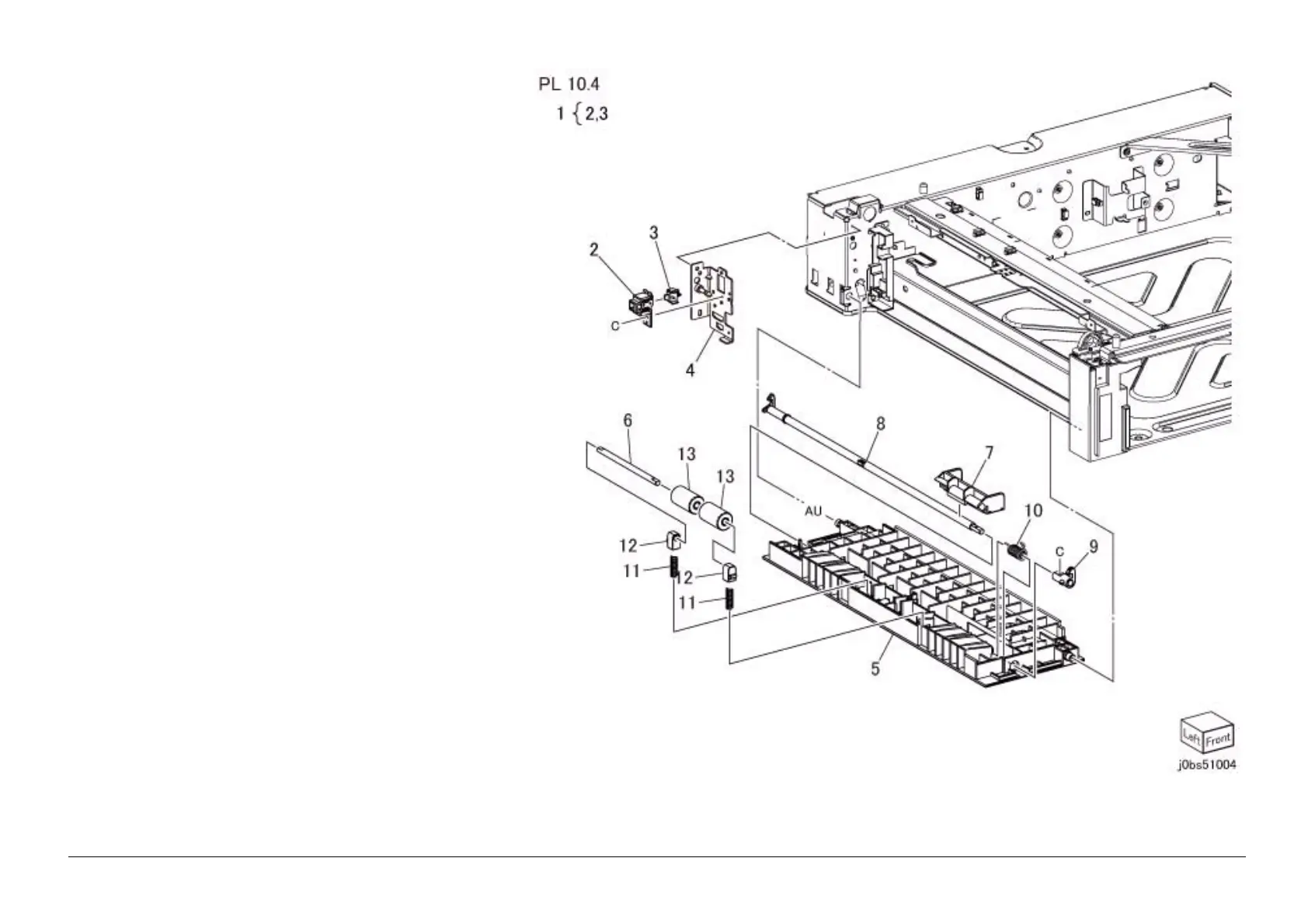

PL 10.4 Left Cover
Item Parts No Description A.C.
1 848K 07080 STM Left Cover Switch and Cover (Item 2,3)
2 – Switch Cover (P/O Item 1)
3 110E 12220 STM Left Cover Switch
4 049K 28350 Latch Bracket
5 – Left Cover
6 – Pinch Shaft
7– Handle
8 – Latch
9– Hook
10 – Spring
11 – Pinch Spring
12 – Pinch Bearing
13 059E 99241 Pinch Roll
To Next Page
