05/2014
4-31
DC SC2020
Disassembly/Assembly and Adjustment
6. Transfer
Version 1.1

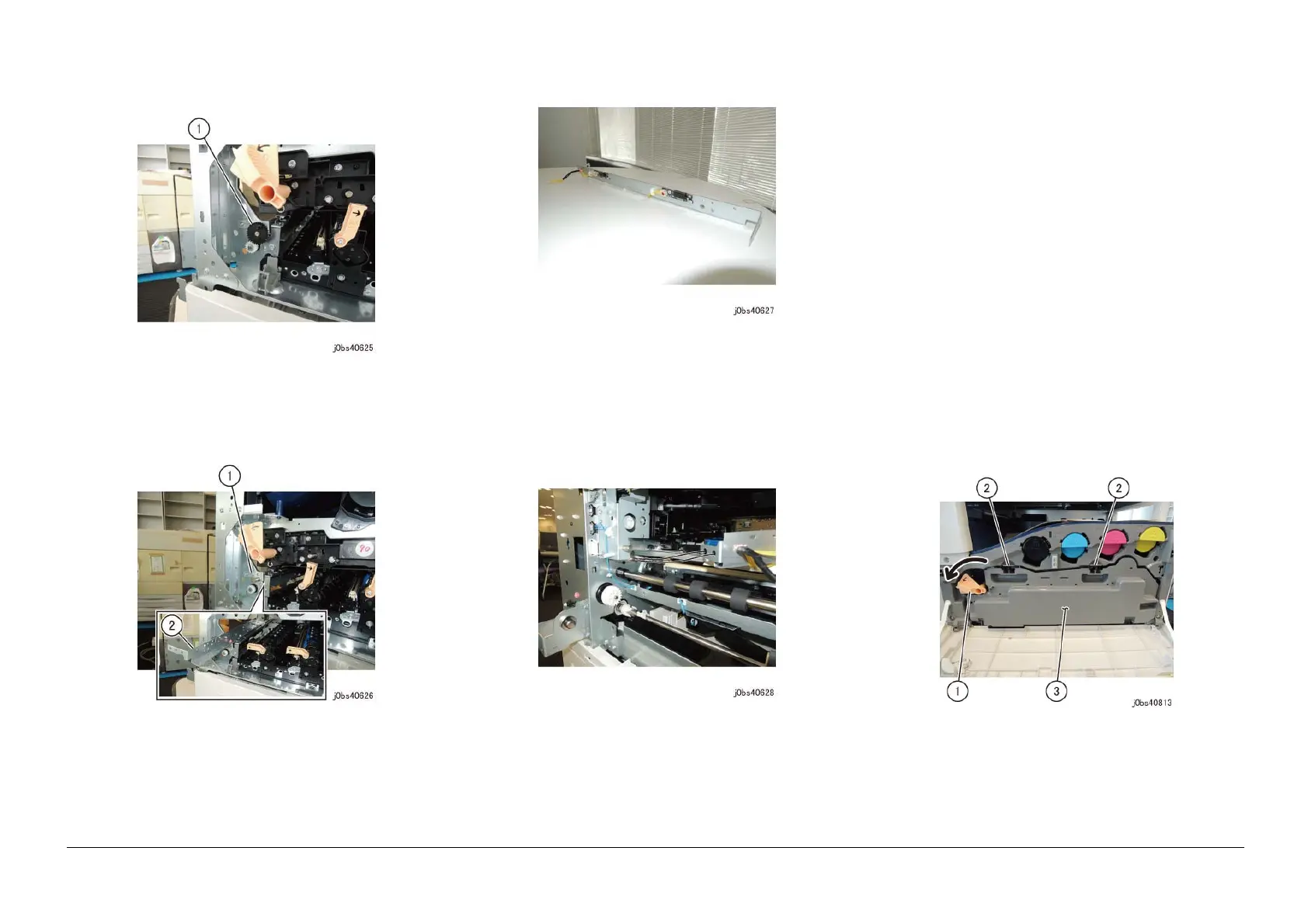

10. Remove the Gear on the Front. (Figure 2)
(1) Remove the gear.
Figure 2 j0bs40625
11. Remove the MOB ADC Assembly. (Figure 3)
(1) Remove the screw.
(2) Remove the MOB ADC Assembly.
Figure 3 j0bs40626
Reference: This shows the removed MOB ADC Assembly.
(Figure 4)
Figure 4 j0bs40627
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the MOB ADC Assembly, insert the MOB ADC
Assembly mounting hole to the Rear Frame Boss (x2). (Figure
5)
Figure 5 j0bs40628
REP 6.2.1 Belt Cleaner Blade
Parts List on PL 6.2
Removal
WARNING
When turning OFF the power switch, check that the "Data"
lamp is OFF and that there is no Job in progress.Turn OFF the
Power Switch and make sure that the screen display or energy-
saving LED is turned off.Check that the power switch is OFF
and unplug the power plug.
NOTE: Place the drop cloth or newspapers at the servicing area to
keep the site clean.
NOTE: Close the Main Unit Cover and work when the IBT Belt Unit
is removed. To prevent Drum from light fatigue.
NOTE: Do not touch the IBT Belt surface.
1. Open the Front Cover.
2. Remove the Waste Bottle. (Figure 1)
(1) Turn the Retract Handle in counterclockwise direction.
(2) Release the hook (x2).
(3) RRemove the Waste Bottle.
Figure 1 j0bs40813
3. Open the L/H Cover.
4. Remove the Screw that secures the IBT Belt Unit. (Figure 2)
(1) Remove the screw (x2).
To Next Page
