Fuji Xerox DocuCentre SC2020 Service Manual

05/2014
5-21
DC SC2020
Parts List
5. Deve.
Version 1.1

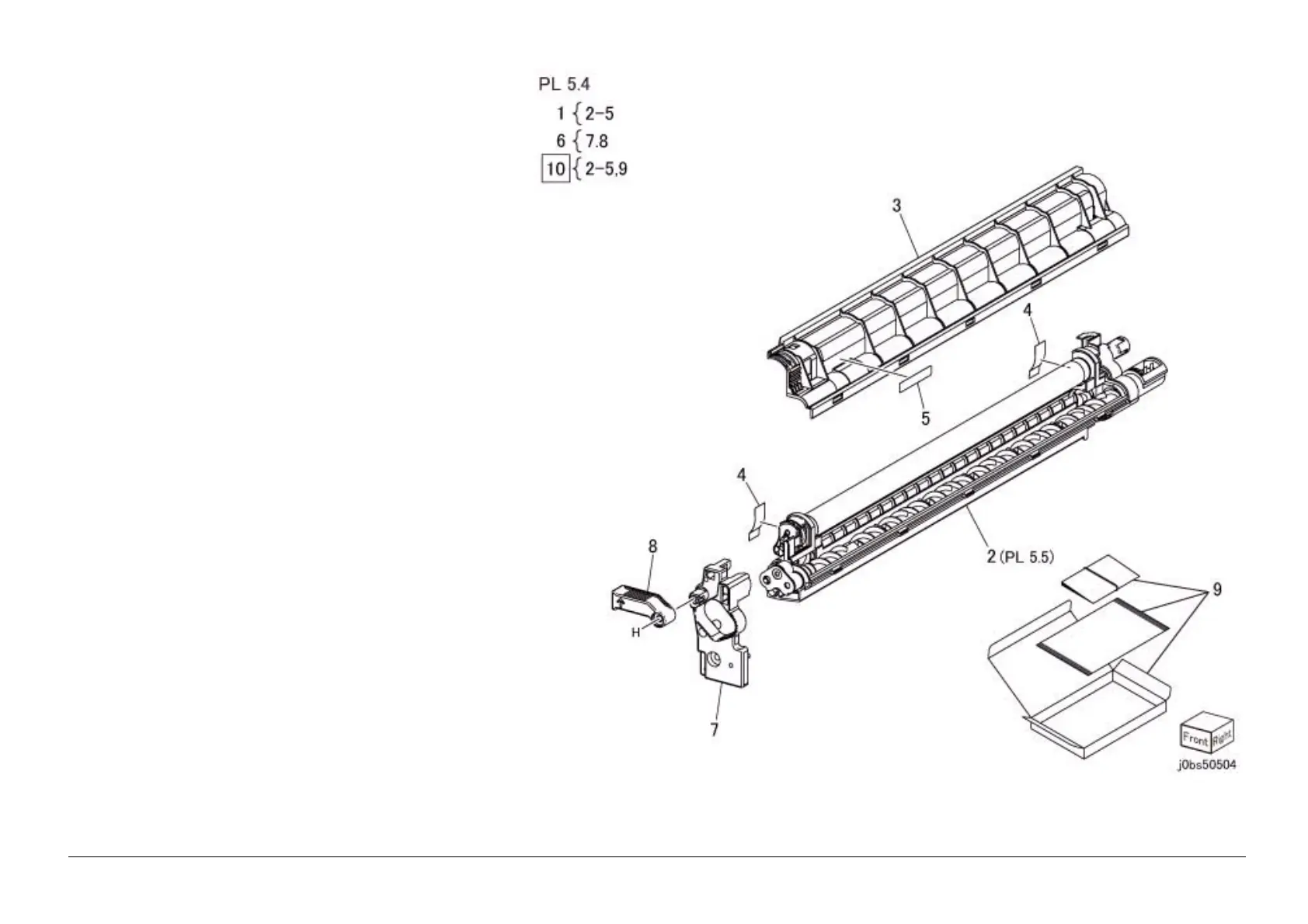

PL 5.4 Deve Unit Component
Item Parts No Description A.C.
1 604K 91180 Deve Assembly (Item 2-5)
2 – Lower Housing (P/O Item 1) (PL 5.5)
3 848K 91470 Upper Cover
4 – Seal (P/O Item 1)
5 – Traceability Label (P/O Item 1)
6 848K 91480 Deve Front Cover-Y (Item 7,8)
– 848K 91490 Deve Front Cover-M (Item 7,8)
– 848K 91500 Deve Front Cover-C (Item 7,8)
– 848K 91510 Deve Front Cover-K (Item 7,8)
7 – Deve Front Cover (P/O Item 6)
8 011E 28140 Lever-Y
– 011E 28150 Lever-M
– 011E 28160 Lever-C
– 011E 28170 Lever-K
9 676K 36010 Developer-Y
– 676K 36000 Developer-M
– 676K 35990 Developer-C
– 676K 35980 Developer-K
10 604K 91140 Deve Assembly-Y Kit (Item 2-5,9) (REP 5.4.1)
– 604K 91150 Deve Assembly-M Kit (Item 2-5,9) (REP 5.4.1)
– 604K 91160 Deve Assembly-C Kit (Item 2-5,9) (REP 5.4.1)
– 604K 91170 Deve Assembly-K Kit (Item 2-5,9) (REP 5.4.1)
