Disassembly/Assembly and Adjustment
Figure 4 j0lj45617
Replacement
1. To install, carry out the removal steps in reverse order.
REP 56.9.2 Retard Chute
Parts List on PL 56.9
Removal
WARNING
When turning OFF the power switch, check that the ’Data’ lamp
is OFF and that there is no Job in progress.
Turn OFF the power switch and make sure that the screen dis-
play or the Power Saver LED turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the DADF Front Cover. (REP 56.2.1)
2. Remove the DADF Rear Cover. (REP 56.2.2)
3. Remove the Document Tray. (REP 56.9.1)
4. Open the Retard Chute.
5. Remove the Retard Chute. (Figure 1)
(1) Remove the Retard Chute in the direction of the arrow.

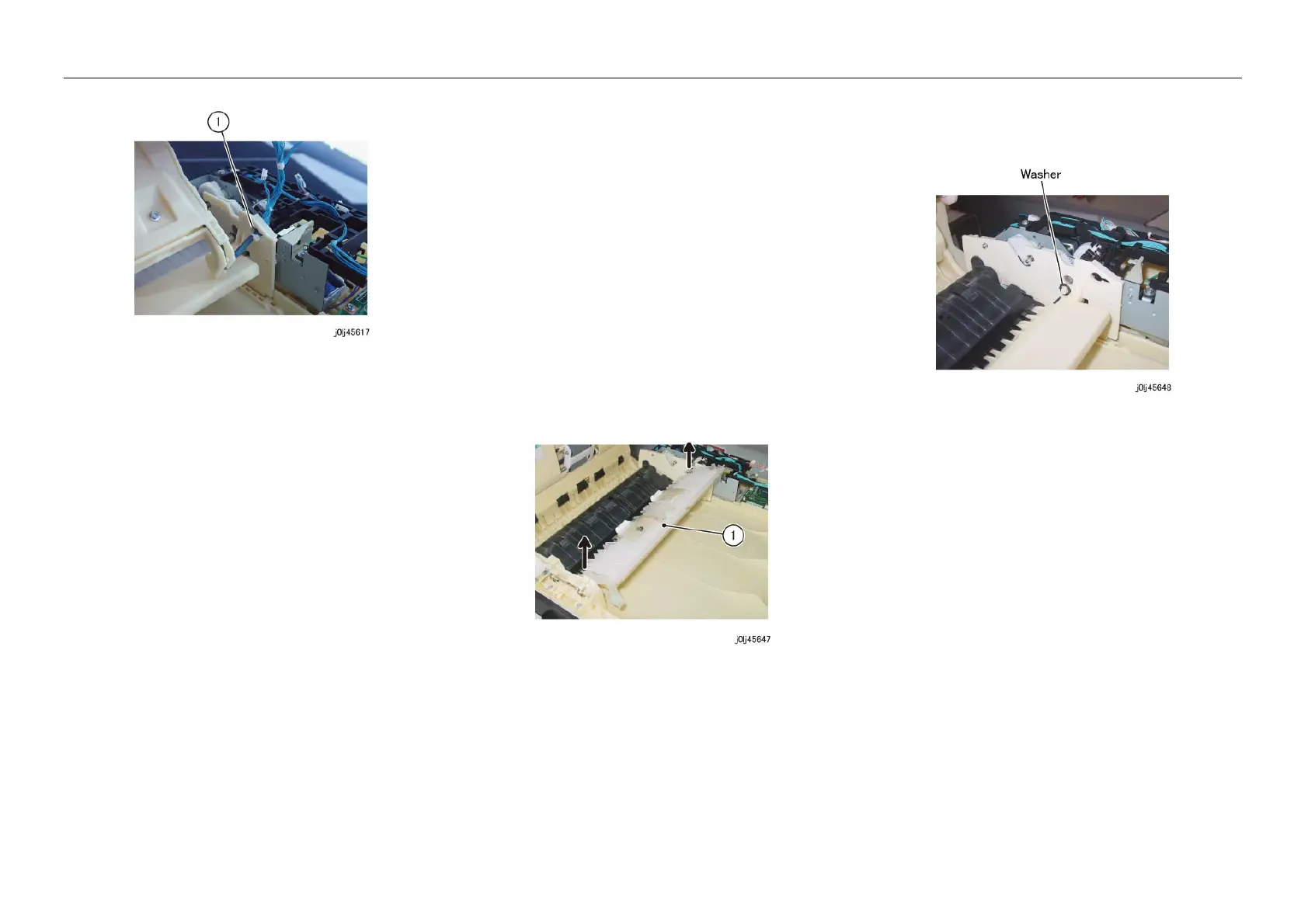

Figure 1 j0lj45647
NOTE: For the type that comes with washer attached to the
boss at the rear, be careful so as to not lose the washer. (Fig-
ure 2)
Figure 2 j0lj45648
Replacement
1. To install, carry out the removal steps in reverse order.
