05/2014
4-71
DC SC2020
Disassembly/Assembly and Adjustment
19. Cover
Version 1.1
REP 19.1.1 Front Cover
Parts List on PL 19.1
Removal
WARNING
When turning OFF the power switch, check that the "Data"
lamp is OFF and that there is no Job in progress.
Turn OFF the Power Switch and make sure that the screen dis-
play or energy-saving LED is turned off.
Check that the power switch is OFF and unplug the power plug.

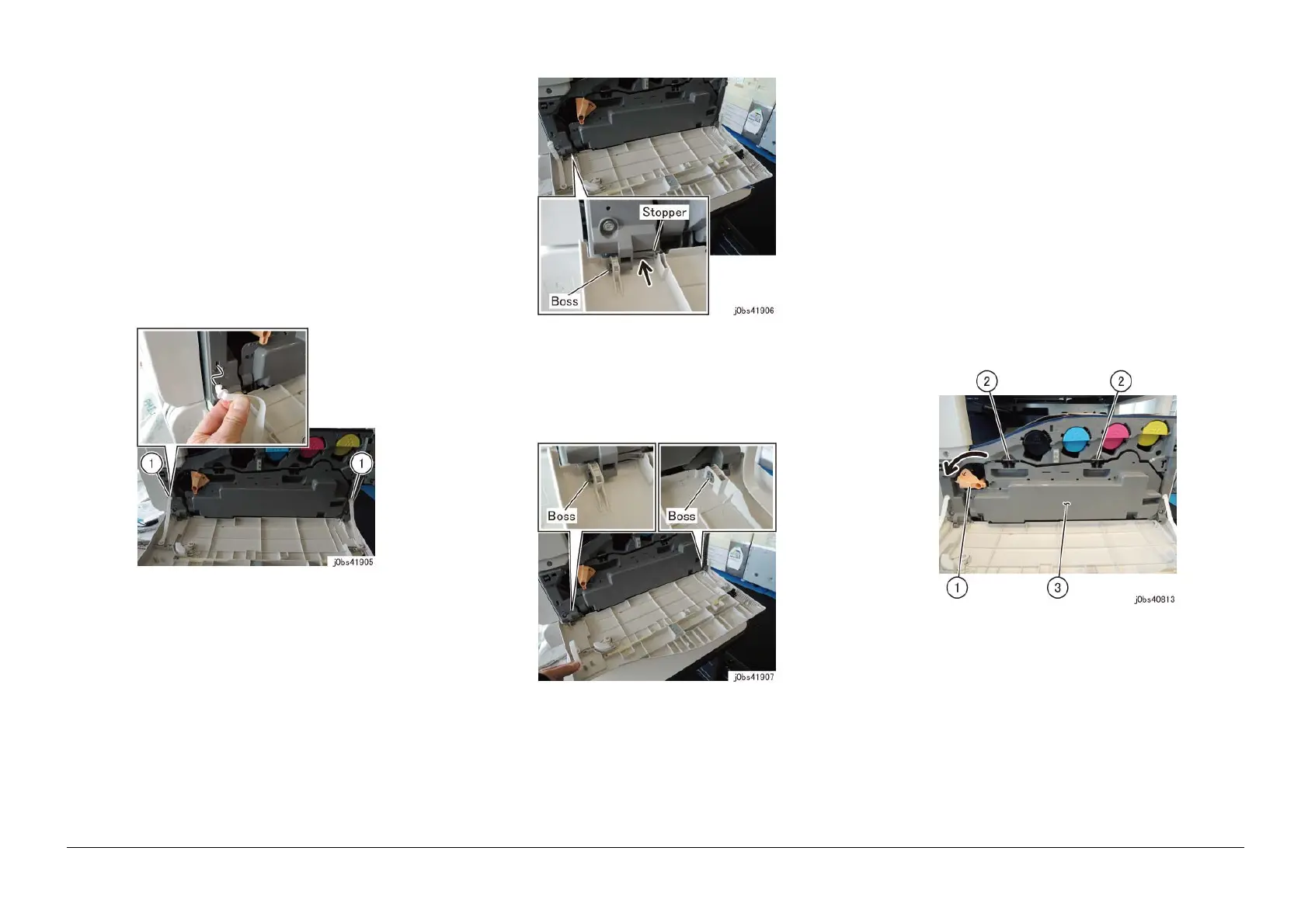

1. Open the Front Cover.
2. Unplug the Support (x2) of the Front Cover. (Figure 1)
(1) Turn the Support 90 degrees and unplug.
Figure 1 j0bs41905
3. Remove the Front Cover. (Figure 2)
(1) Move the Front Cover towards the Left by pressing the
Stopper and remove the Front Cover from the Boss.
Figure 2 j0bs41906
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the Front Cover, put the Front Cover mounting
hole on the Boss of the Inner Cover. (Figure 3)
Figure 3 j0bs41907
REP 19.1.2 Inner Cover
Parts List on PL 19.1
Removal
WARNING
When turning OFF the power switch, check that the "Data"
lamp is OFF and that there is no Job in progress.
Turn OFF the Power Switch and make sure that the screen dis-
play or energy-saving LED is turned off.
Check that the power switch is OFF and unplug the power plug.
1. Remove the Front Cover. (REP 19.1.1)
2. Remove the Waste Bottle. (Figure 1)
(1) Turn the Retract Handle in counterclockwise direction.
(2) Release the hook (x2).
(3) Remove the Waste Bottle.
Figure 1 j0bs40813
3. Remove the Pillar Left Cover. (Figure 2)
(1) Remove the screw.
(2) Remove the Pillar Left Cover.
To Next Page
