Fuji Xerox DocuCentre SC2020

05/2014
5-53
DC SC2020
Parts List
18. Electrical
Version 1.1

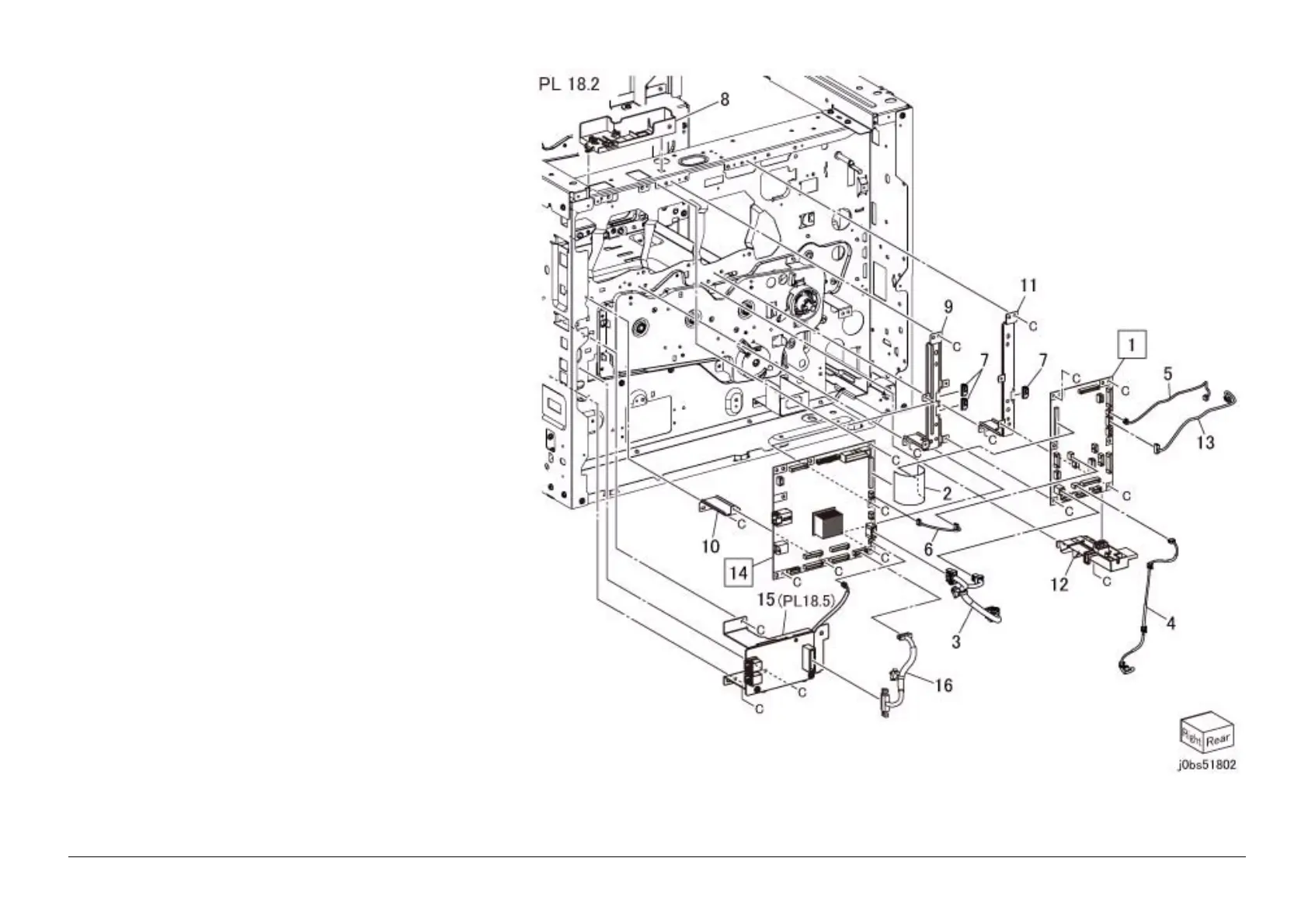

PL 18.2 Electrical-Upper Rear
Item Parts No Description A.C.
1 960K 76460 (SCC) Drive PWB (REP 18.2.1, REP 99.1.1)
2 117E 38880 FFC Cable
3 952K 05740 (SCC) Wire Harness (Power )(REP 99.1.1)
4 952K 13470 Wire Harness (Tray Size)
5 952K 13520 (SCC) Wire Harness (Link Solenoid)(REP 99.1.1)
6 952K 15130 Wire Harness
7– Bush
8 – Guard
9 869E 07060 Bracket
10 869E 07070 Bracket
11 869E 07080 Bracket
12 049K 29260 Support
13 952K 15120 (SCC) Wire Harness (Duplex )(REP 99.1.1)
14 960K 75890 (SCC) ESS PWB (REP 18.2.2, REP 99.1.1)
15 960K 76810 Fax (PL 18.5)
16 952K 17150 Fax Wire Harness
