Chain10 Fusing and Copy Transportation
ABCDEFGHJ
1
2
3
4
5
6
7-56
DRIVE PWB
PL18.2

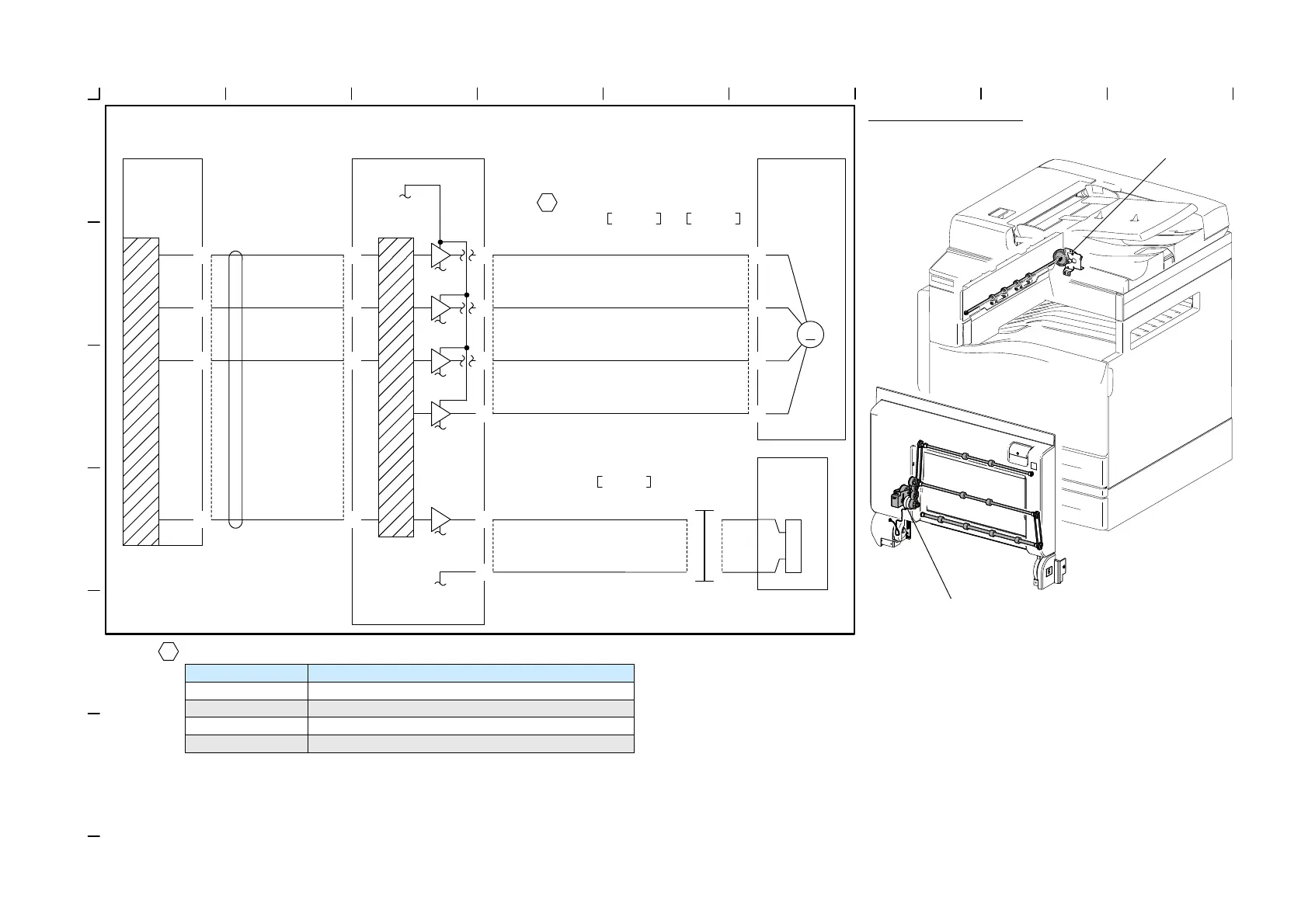

10.5 DUPLEX TRANSPORTATION
j0bs731005
DC COM
J408
1
INVERT DRIVE
MOTOR
PL17.1
J203
4
INVERT DRIVE MOTOR
ON +24VDC CLOCK /B
2 3
DC COM
INVERT DRIVE MOTOR
ON +24VDC CLOCK B
3 2
DC COM
INVERT DRIVE MOTOR
ON +24VDC CLOCK A
4 1
DC COM
INVERT DRIVE MOTOR
ON +24VDC CLOCK /A
ELECTRICAL COMPONENTS
BLU
BLU
BLU
BLU
077-017
INVERT DRIVE MOTOR
MOT
077-014
Digital Output TO
J410
4
DUPLEX
CLUTCH
PL14.6
DUPLEX CLUTCH
ON (L)+24VDC
3
+24VDC
F3 INTLK
+24VDC
(1.3 J2)
BLU
DC COM
2 1
J205
2
077-003
Digital Output
P205
1
NOTE:
1
BLU
BLU
DUPLEX CLUTCH
ESS PWB
PL18.2
J1
36
35
34
INVERT DRIVE
MOTOR
ON SIGNAL
INVERT DRIVE
MOTOR
DIR SIGNAL
INVERT DRIVE
MOTOR
CLOCK SIGNAL
16
DUPLEX CLUTCH
ON SIGNAL
BLU
J6
25
FLAT
CABLE
26
27
45
1
Operation
Rotates the Motor forward. (in the Output direction, at speed of 63)
Rotates the Motor forward. (in the Output direction, at speed of 126)
The operation varies depending on the diag code.
Rotates the Motor reverse. (in the Pull-In direction, at speed of 63)
Rotates the Motor reverse. (in the Pull-In direction, at speed of 126)
INVERT DRIVE MOTOR
Digital Output [077-014]
Digital Output [077-015]
Digital Output [077-016]
Digital Output [077-017]
INTLK
+24VDC
(9.7 D3)
