7.3 BSD
Chain9 Marking
ABCDEFGHJ
1
2
3
4
5
6
7-51
DRIVE PWB
PL18.2
DRIVE PWB
PL18.2

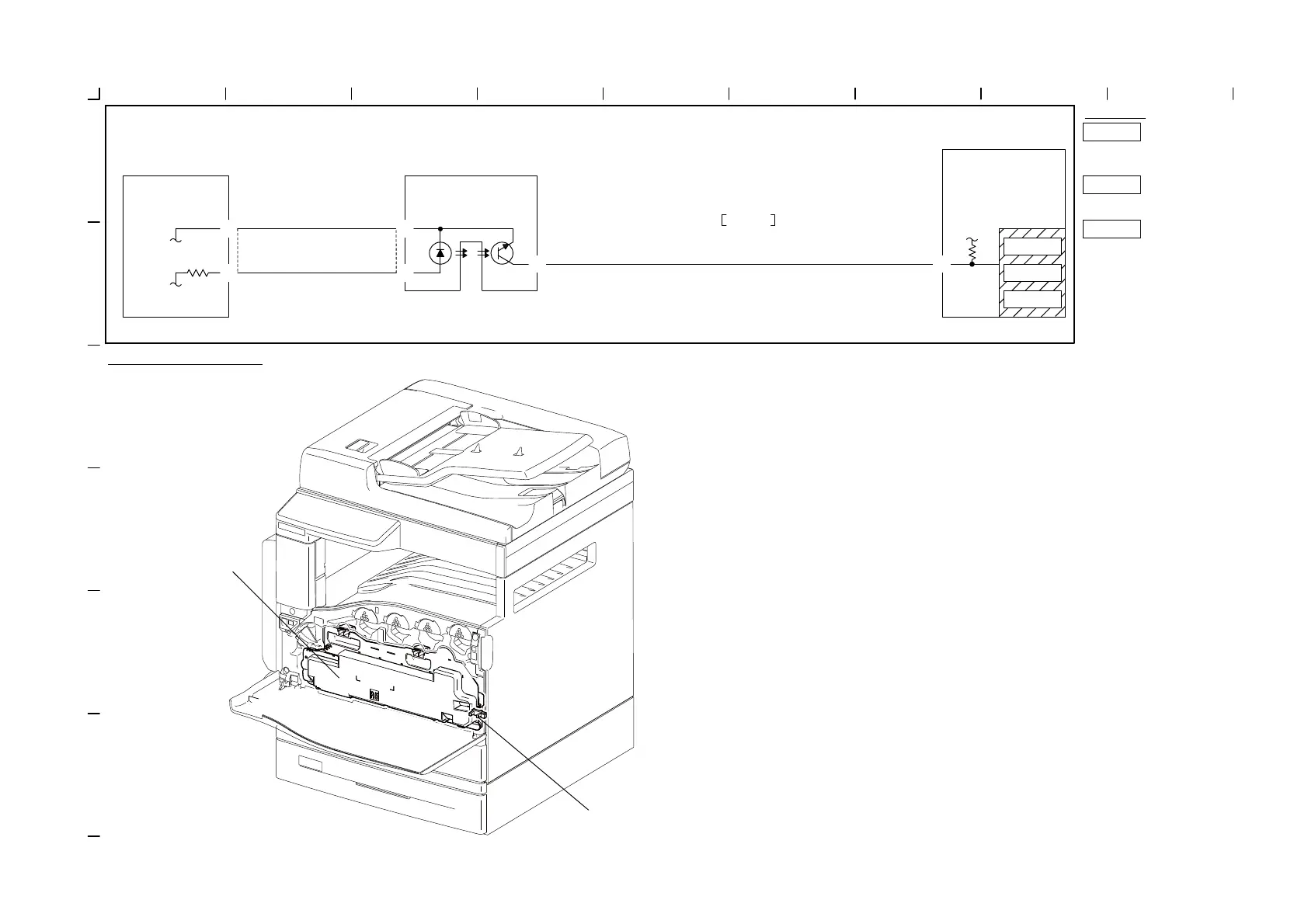

9.12 WASTE TONER DISPOSAL
j0bs730912
3
+1.2VDC
+5VDC
(1.2 J3)
J403
1
DC COM
DC COM
(1.2 J3)
BLU
BLU
Digital Input
BLU
+3.3VDC
J403
2
091-400
WASTE TONER BOTTLE
FULL SENSOR
PL8.1
J100
2
1
J100
3
WASTE TONER BOTTLE
FULL SENSOR
BOTTLE EMPTY (L)+5VDC
091-200
ELECTRICAL COMPONENTS
WASTE TONER BOTTLE
FULL SENSOR
WASTE TONER BOTTLE
FAIL CODE
091-400
Waste Toner Bottle
Near Full
091-910
Waste Toner Box Detached
091-910
091-911
Waste Toner Bottle Full
091-911
