Fuji Xerox DocuCentre SC2020

05/2014
5-17
DC SC2020
Parts List
4. NOHAD
Version 1.1

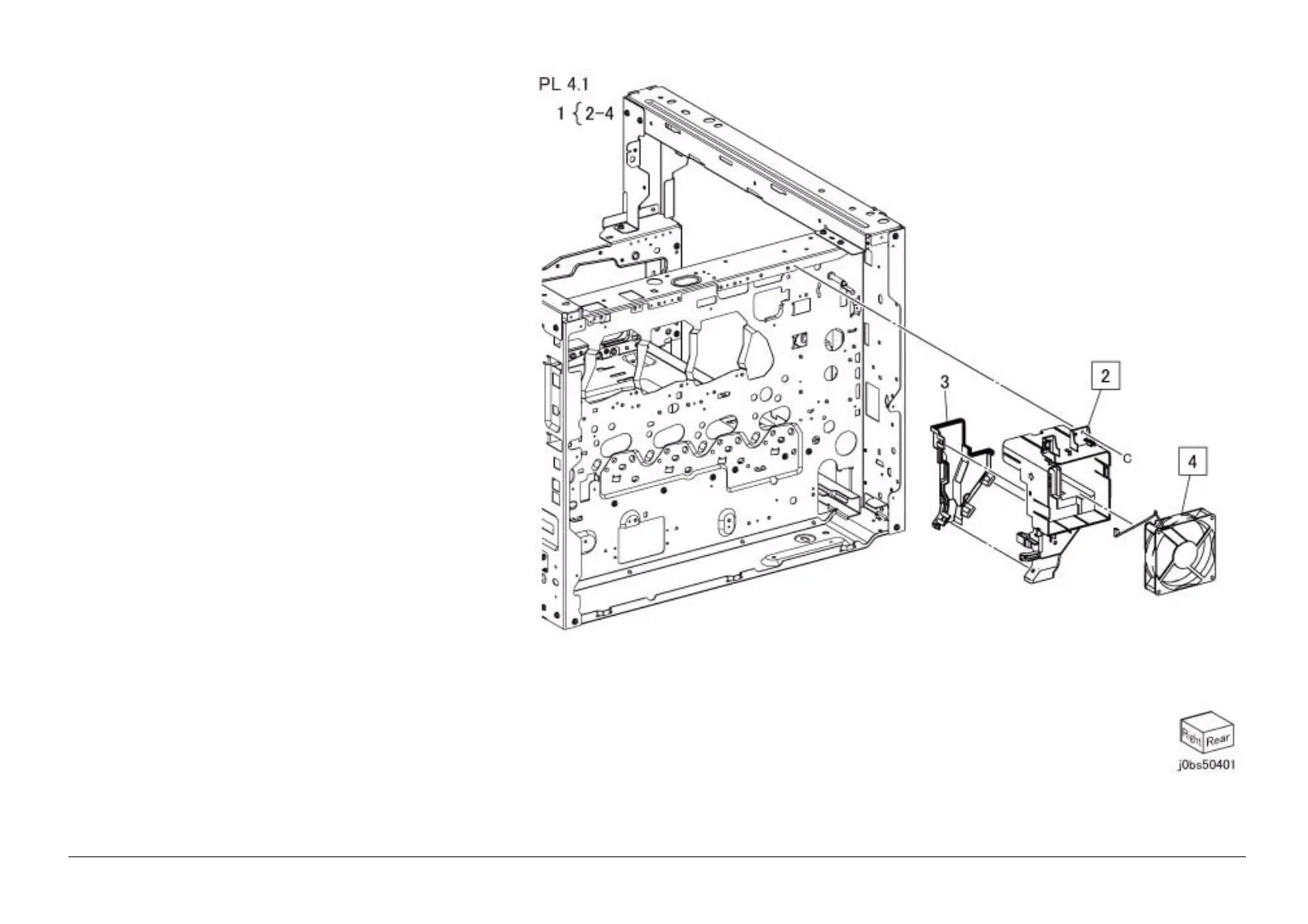

PL 4.1 NOHAD
Item Parts No Description A.C.
1 054K 53020 (SCC) Fusing Exhaust Fan and Duct (Item 2-4)(REP
99.1.1)
2 054E 55170 Fusing Duct (REP 4.1.2)
3 054E 55181 Fusing Lower Duct
4 127K 53050 (SCC) Fusing Exhaust Fan (REP 4.1.1, REP 99.1.1)
