05/2014
5-59
DC SC2020
Parts List
56. DADF
Version 1.1

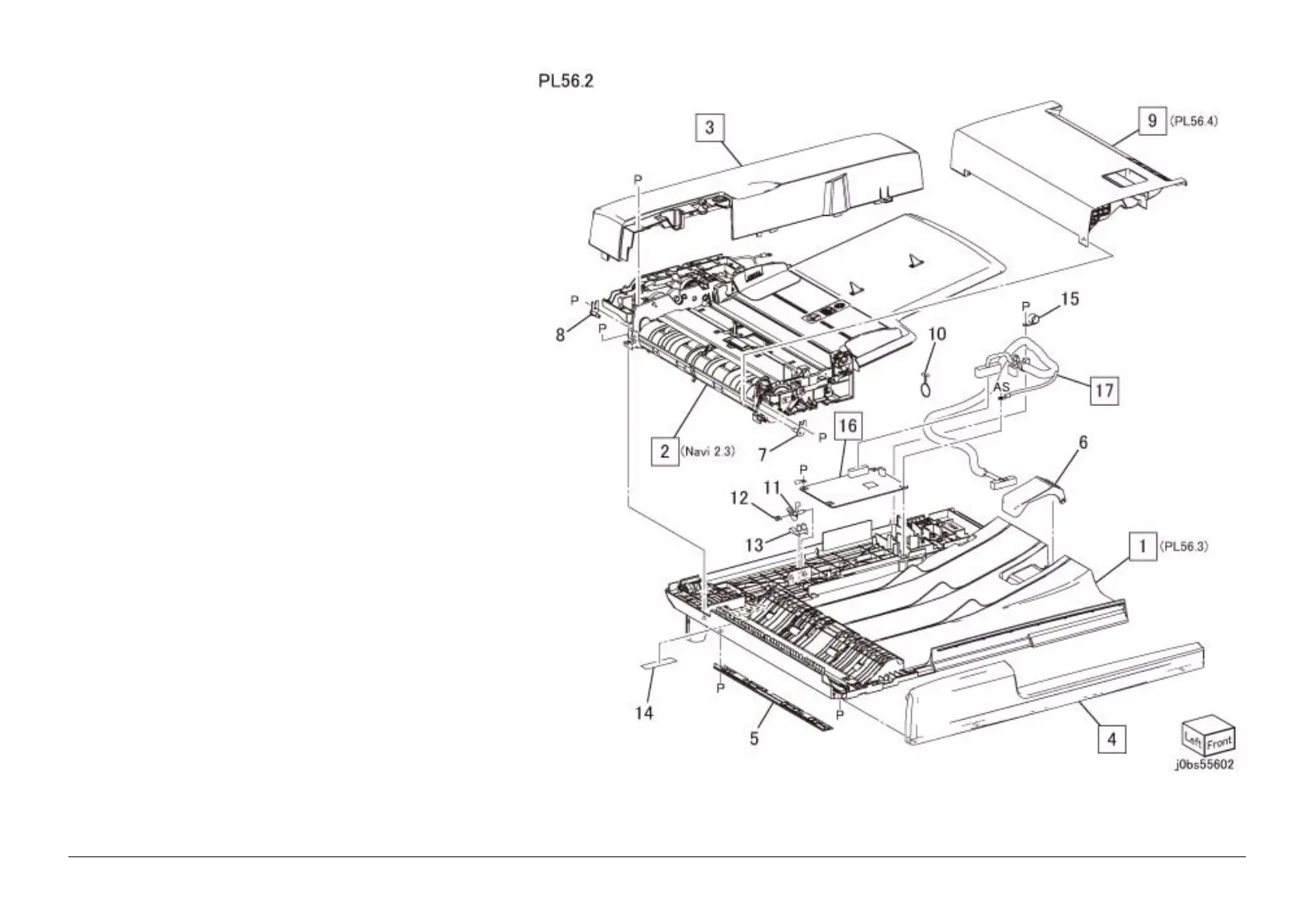

PL 56.2 DADF Component
Item Parts No Description A.C.
1 – (SCC) DADF Base Frame (PL 56.3)(REP 99.1.1)
2 059K 75730 (SCC) DADF Feeder Assembly (Navi 2.3) (REP
56.2.5, REP 99.1.1)
3 848E 86411 DADF Rear Cover (REP 56.2.2)
4 848E 86430 DADF Front Cover (REP 56.2.1)
5 848E 86450 Registration Pinch Cover
6 803E 13310 Tray Stopper
7 068K 67551 Hinge Bracket (Front)
8 049K 17810 Hinge Bracket (Rear)
9 059K 75750 Upper Feeder (PL 56.4) (REP 56.2.4)
10 – Clamp
11 120E 34270 Actuator
12 809E 50792 Spring
13 930W 00121 DADF Open Sensor
14 – Data Plate
15 – Clamp
16 960K 62441 (SCC) DADF PWB (REP 56.2.3, REP 99.1.1)
17 952K 03540 (SCC) DADF I/F Wire Harness(REP 99.1.1)
To Next Page
