05/2014
5-12
DC SC2020
2. ROS
Version 1.1
Parts List

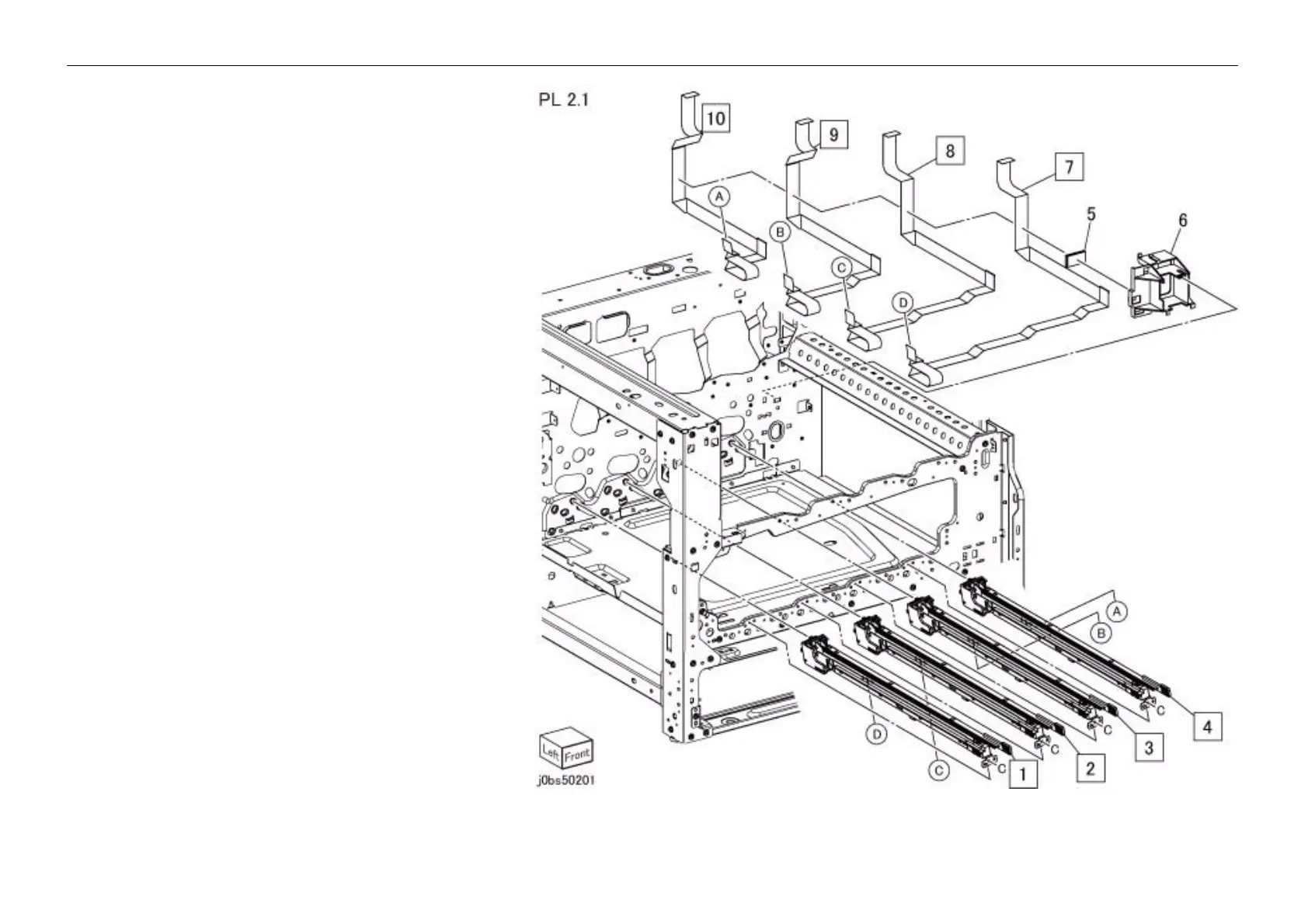

PL 2.1 LPH
Item Parts No Description A.C.
1 130K 89590 (SCC) LPH K (REP 2.1.2, REP 99.1.1)
2 130K 89590 (SCC) LPH C (REP 2.1.2, REP 99.1.1)
3 130K 89590 (SCC) LPH M (REP 2.1.2, REP 99.1.1)
4 130K 89590 (SCC) LPH Y (REP 2.1.2, REP 99.1.1)
5 121E 23580 Core
6 032E 43060 FFC Guide
7 117E 39180 FFC Cable K (REP 2.1.1)
8 117E 39190 FFC Cable C (REP 2.1.1)
9 117E 39200 FFC Cable M (REP 2.1.1)
10 117E 39210 FFC Cable Y (REP 2.1.1)
