05/2014
5-37
DC SC2020
Parts List
10. One Tray Module (Tray 2)
Version 1.1

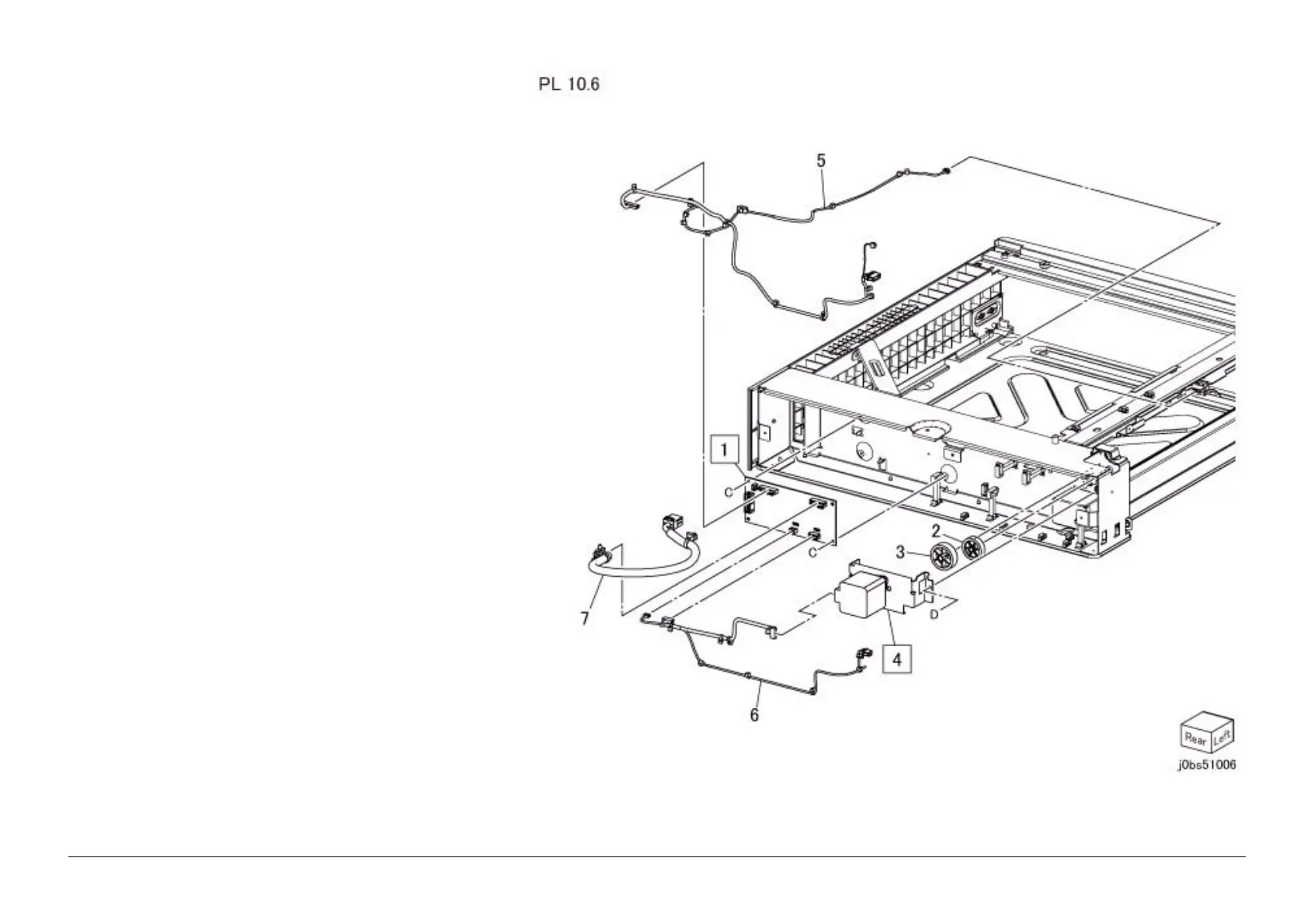

PL 10.6 Electrical
Item Parts No Description A.C.
1 960K 74291 (SCC) STM PWB (REP 10.6.1, REP 99.1.1)
2 – Gear (34T)
3 – Gear (65T/20T)
4 127K 71980 (SCC) STM Takeaway Motor (REP 10.6.2, REP
99.1.1)
5 952K 15710 Sensor Wire Harness
6 952K 15720 Motor Wire Harness
7 952K 15700 IF Wire Harness
