05/2014
4-84
DC SC2020
56. DADF
Version 1.1
Disassembly/Assembly and Adjustment
Figure 2 j0lj45630

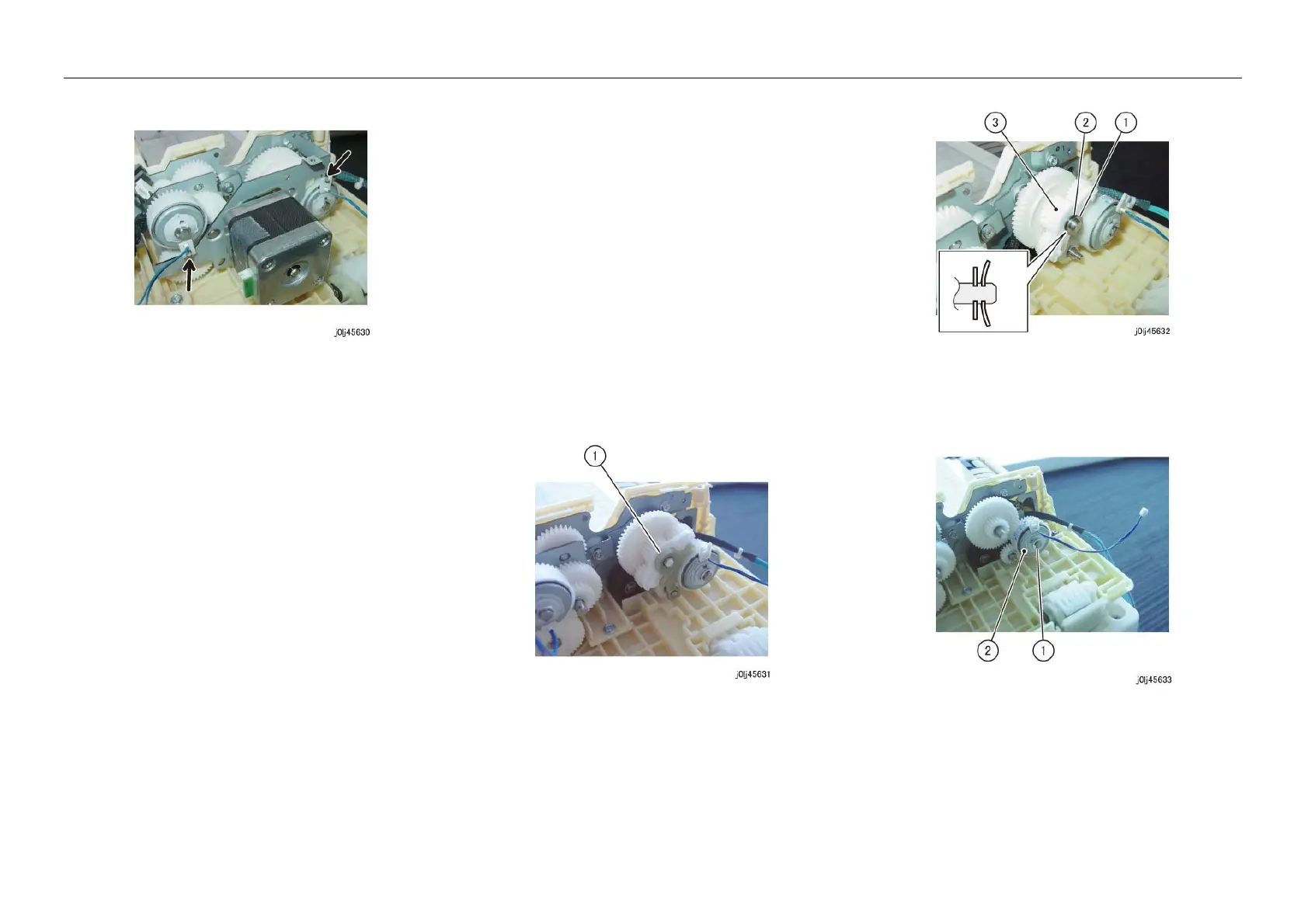

REP 56.7.1 DADF Drive Belt
Parts List on PL 56.7
Removal
WARNING
When turning OFF the power switch, check that the ’Data’ lamp
is OFF and that there is no Job in progress.
Turn OFF the power switch and make sure that the screen dis-
play or the Power Saver LED turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the DADF Front Cover. (REP 56.2.1)
2. Remove the DADF Rear Cover. (REP 56.2.2)
3. Remove the Document Tray. (REP 56.9.1)
4. Remove the Harness Guide and the wire harness. (REP
56.6.1)
5. Remove the DADF Feed Motor. (REP 56.6.2)
6. Remove the link. (Figure 1)
(1) Remove the link.
Figure 1 j0lj45631
7. Remove the gear and bracket. (Figure 2)
(1) Remove the washer (large: thin).
(2) Remove the washer (small: thick).
(3) Remove the gear and bracket.
Figure 2 j0lj45632
8. Remove the DADF Takeaway Clutch. (Figure 3)
(1) Remove the E-Clip.
(2) Remove the DADF Takeaway Clutch.
Figure 3 j0lj45633
9. Remove the gear. (Figure 4)
(1) Loosen the screw.
(2) Remove the spring.
(3) Remove the gear.
To Next Page
