Fuji Xerox DocuCentre SC2020 Service Manual

05/2014
5-50
DC SC2020
15. Registration
Version 1.1
Parts List

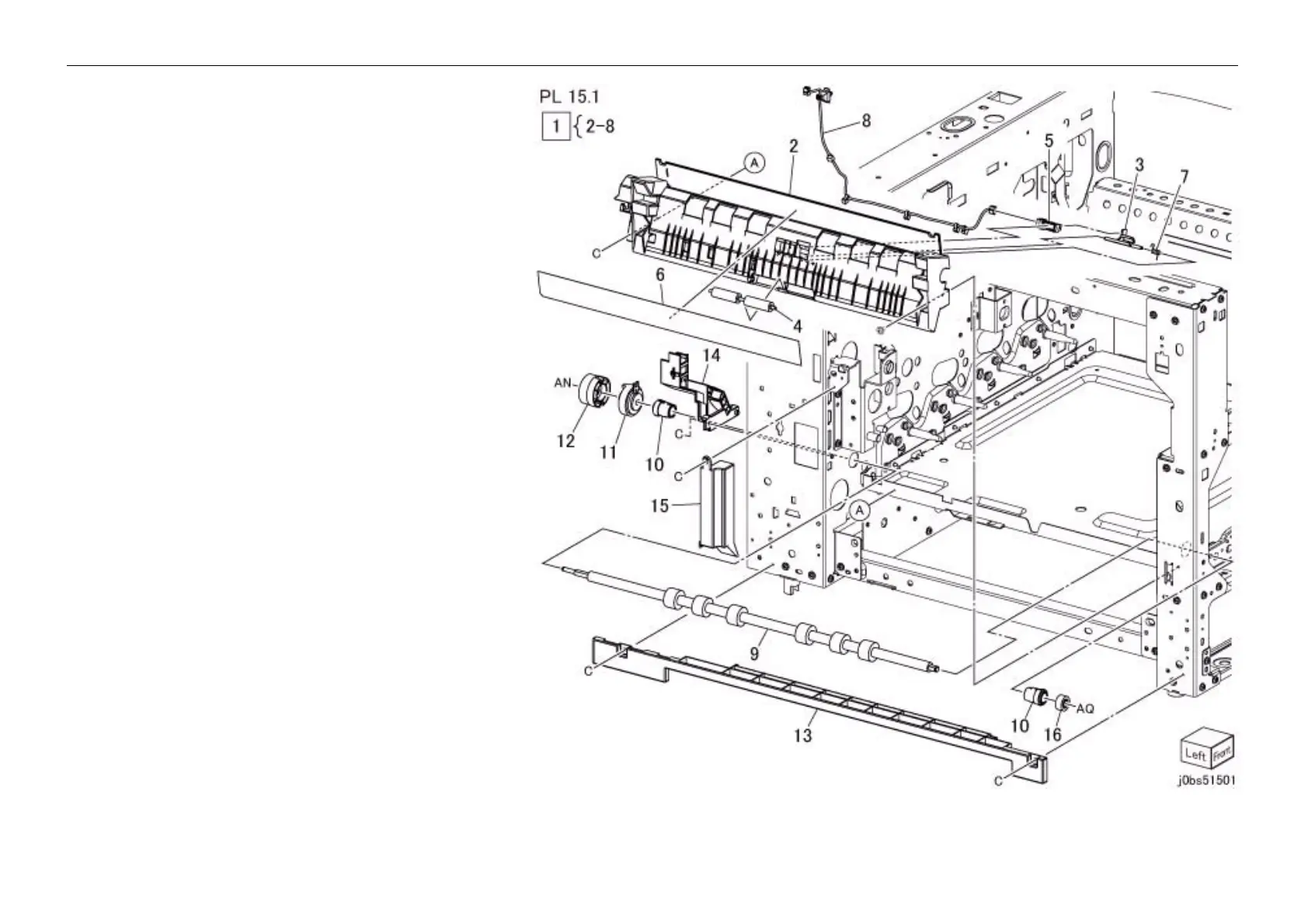

PL 15.1 Registration
Item Parts No Description A.C.
1 059K 87360 Registration Chute (Item 2-8) (REP 15.1.1)
2 – Registration Chute (P/O Item 1)
3 120E 35300 Actuator
4 – Idler Roll (P/O Item 1)
5 930W 00123 Registration Sensor
6 – Film Chute (P/O Item 1)
7 – Spring (P/O Item 1)
8 952K 15100 Sensor Wire Harness
9 059K 87340 Registration Roll (REP 15.1.2)
10 – Bearing
11 121K 55550 (SCC) Registration Clutch (REP 99.1.1)
12 807E 45610 Gear
13 054E 55270 (SCC) MSI Lower Chute(REP 99.1.1)
14 032E 43720 Harness Guide
15 822E 09590 Connector Cover
16 807E 45190 Gear
