05/2014
4-33
DC SC2020
Disassembly/Assembly and Adjustment
6. Transfer
Version 1.1
REP 6.3.1 IBT Belt
Parts List on PL 6.3
Removal
WARNING
When turning OFF the power switch, check that the "Data"
lamp is OFF and that there is no Job in progress.
Turn OFF the Power Switch and make sure that the screen dis-
play or energy-saving LED is turned off.
Check that the power switch is OFF and unplug the power plug.
CAUTION
To prevent light fatigue, either wrap the removed Drum by using a
sheet of black paper or store it in a black bag.
NOTE: Close the Main Unit Cover and work when the IBT Belt Unit
is removed. To prevent Drum from light fatigue.
NOTE: Place the drop cloth or newspapers at the servicing area to
keep the site clean.
1. Open the Front Cover.
2. Remove the IBT Belt Unit. (REP 6.1.1)
3. Remove the IBT Belt Cleaner. (REP 6.2.1)
4. Remove the screw that secures the Handle Holder on the Rear
side. (Figure 1)
(1) Remove the Tapping Screw.

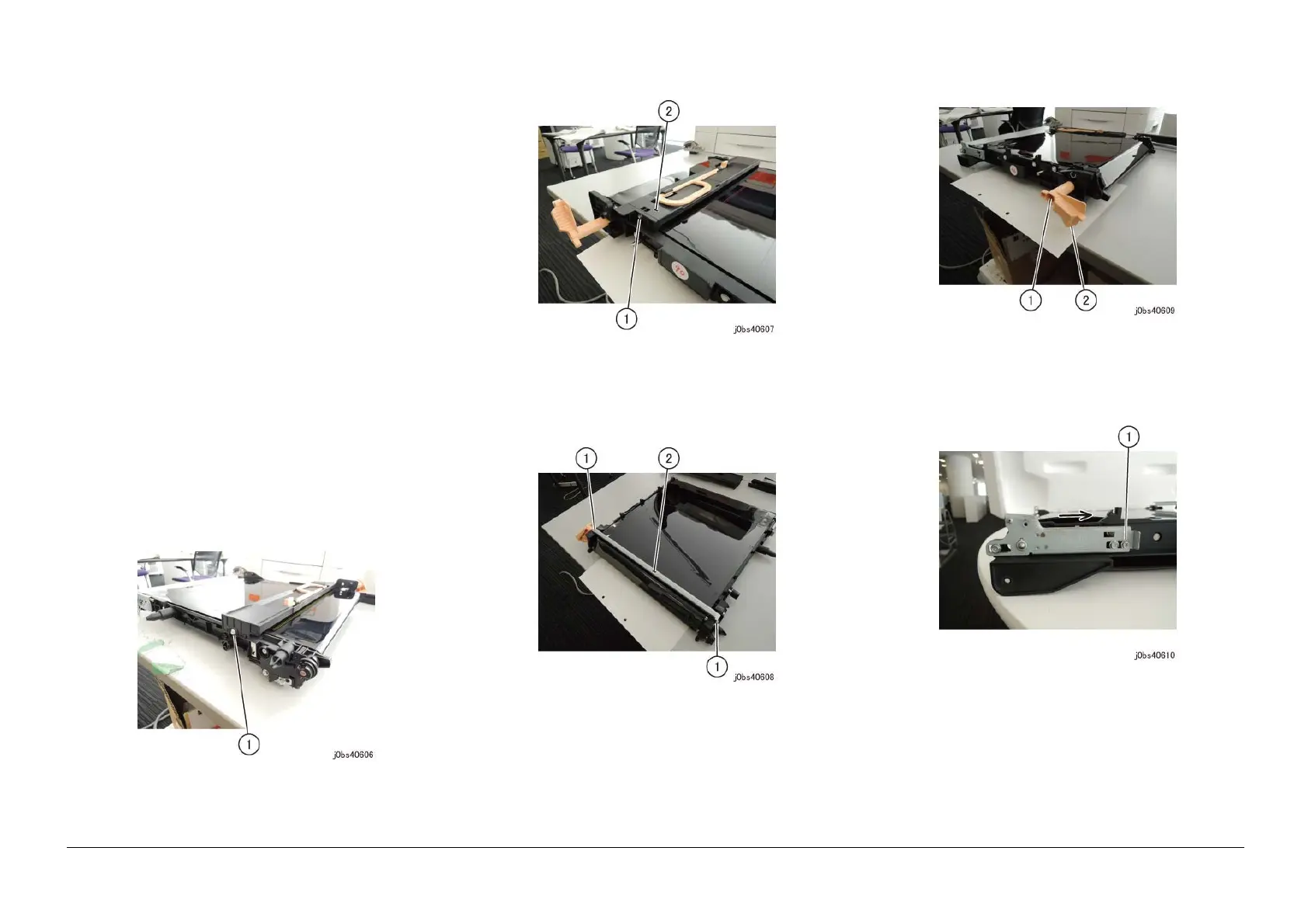

Figure 1 j0bs40606
5. Remove the Handle Holder. (Figure 2)
(1) Remove the Tapping Screw.
(2) Remove the Handle Holder.
Figure 2 j0bs40607
6. Remove the IBT Belt Unit Bottom Guide. (Figure 3)
(1) Remove the Tapping Screw (x2).
(2) Remove the guide.
Figure 3 j0bs40608
7. Remove the Retract Handle. (Figure 4)
(1) Remove the screw.
(2) Remove the Retract Handle.
Figure 4 j0bs40609
8. Move the Front Tension Plate towards the direction of the
arrow and maintain a loose IBT Belt Tension. (Figure 5)
(1) Put the removed Tapping Screw in the Frame hole.
Figure 5 j0bs40610
9. Move the Rear Tension Plate towards the direction of the arrow
and maintain a loose IBT Belt Tension. (Figure 6)
(1) Put the removed Tapping Screw in the Frame hole.
