05/2014
5-31
DC SC2020
Parts List
9. Feeder;Tray (Tray 1)
Version 1.1

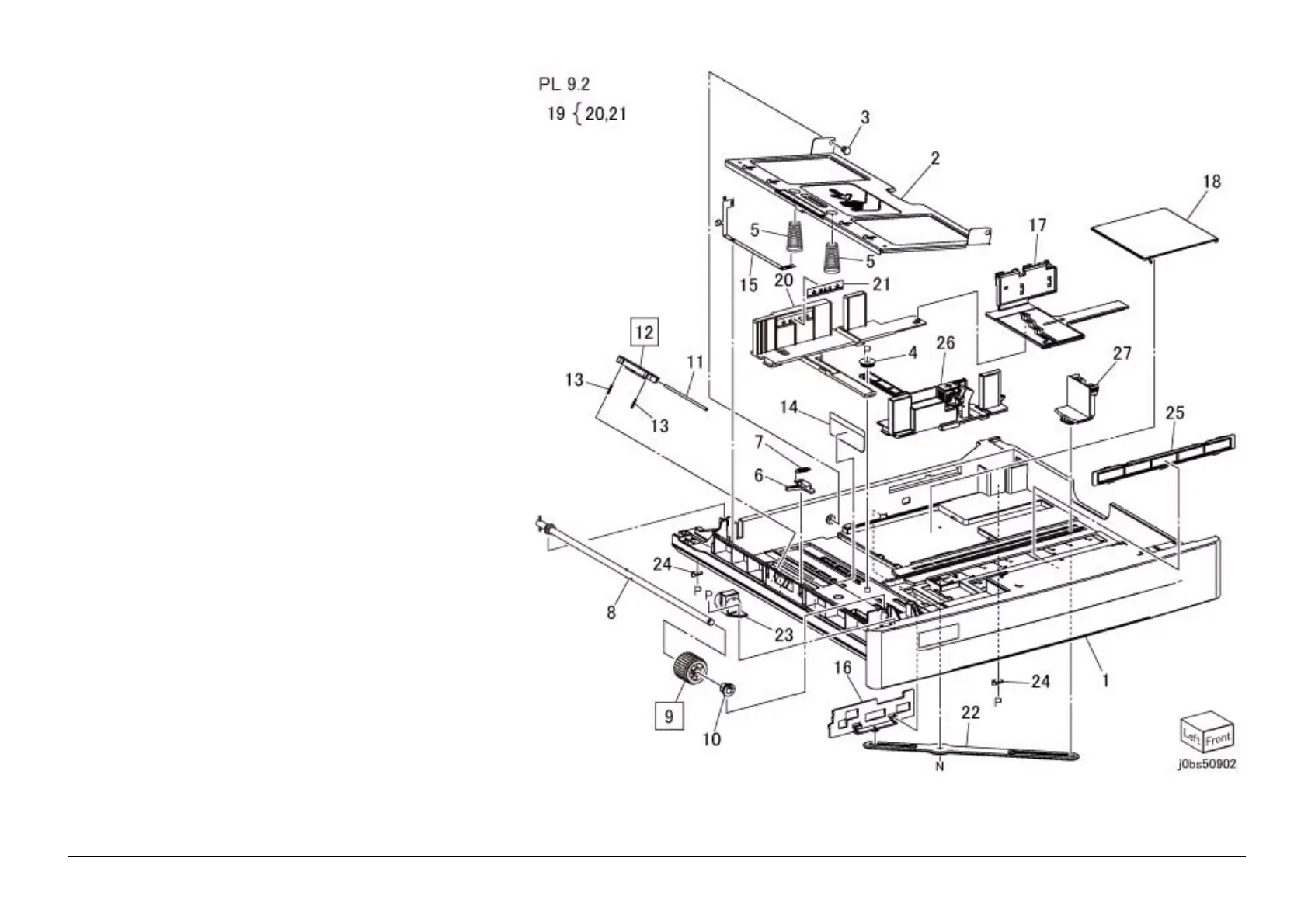

PL 9.2 Tray 1 Component
Item Parts No Description A.C.
1 050K 71710 Tray Housing
2 815K 09820 Bottom Plate
3 029E 32810 Pivot
4 – Pinion Gear
5 – Spring
6 003E 60941 Stopper
7 – Spring
8 – Shaft
9 059K 32773 Tray 1Feed Roll (REP 9.2.1)
10 – Bearing
11 – Retard Shaft
12 019K 09420 Tray 1Retard Pad (REP 9.2.1)
13 – Spring
14 – Guide Paper
15 849E 24550 Ground Plate
16 120E 23764 End Guide Actuator
17 120K 92011 Side Actuator
18 802E 62310 Actuator Cover
19 038K 21980 Side Rear Guide (Item 20,21)
20 – Side Rear Guide (P/O Item 19)
21 893E 09490 Max Label
22 012E 11810 End Link
23 – Bearing Cover
24 – Stopper
25 822E 11290 Inner Cover
26 038K 22420 Side Front Guide
27 038K 22430 End Guide
To Next Page
