DC SC2020
Disassembly/Assembly and Adjustment
8. Xero./Deve.
Version 1.1
Corresponding PG and operation of Test Pattern
Print
Note
• Fusing Unit will not operate until it is "Ready". In addition, it
does not perform billing up.
• For XERO/DEVE, this is the same as the case for normal oper-
ations.
• If the [Stop] button is pressed during ToneUp/Down, the
ToneUp/Down operation will be stopped and you will return to
the initial screen.
ADJ 8.1.5 ProCon/RegCon Print
Purpose
• Print the decided IOT NVM setting value on the paper.
Execution Period
• When performing ProCon/RegCon setting print
Enter the CE DIAG Mode, [Printer Diag] -> [Parameter] ->
[Parameter] -> [Procon Print]
Action
• After accepting the execution instruction, print the designated
IOT NVM value.
A: The warning of Process Control, Registration Control is indi-
cated up to the blank like of the first page, so make sure this is
all 0.

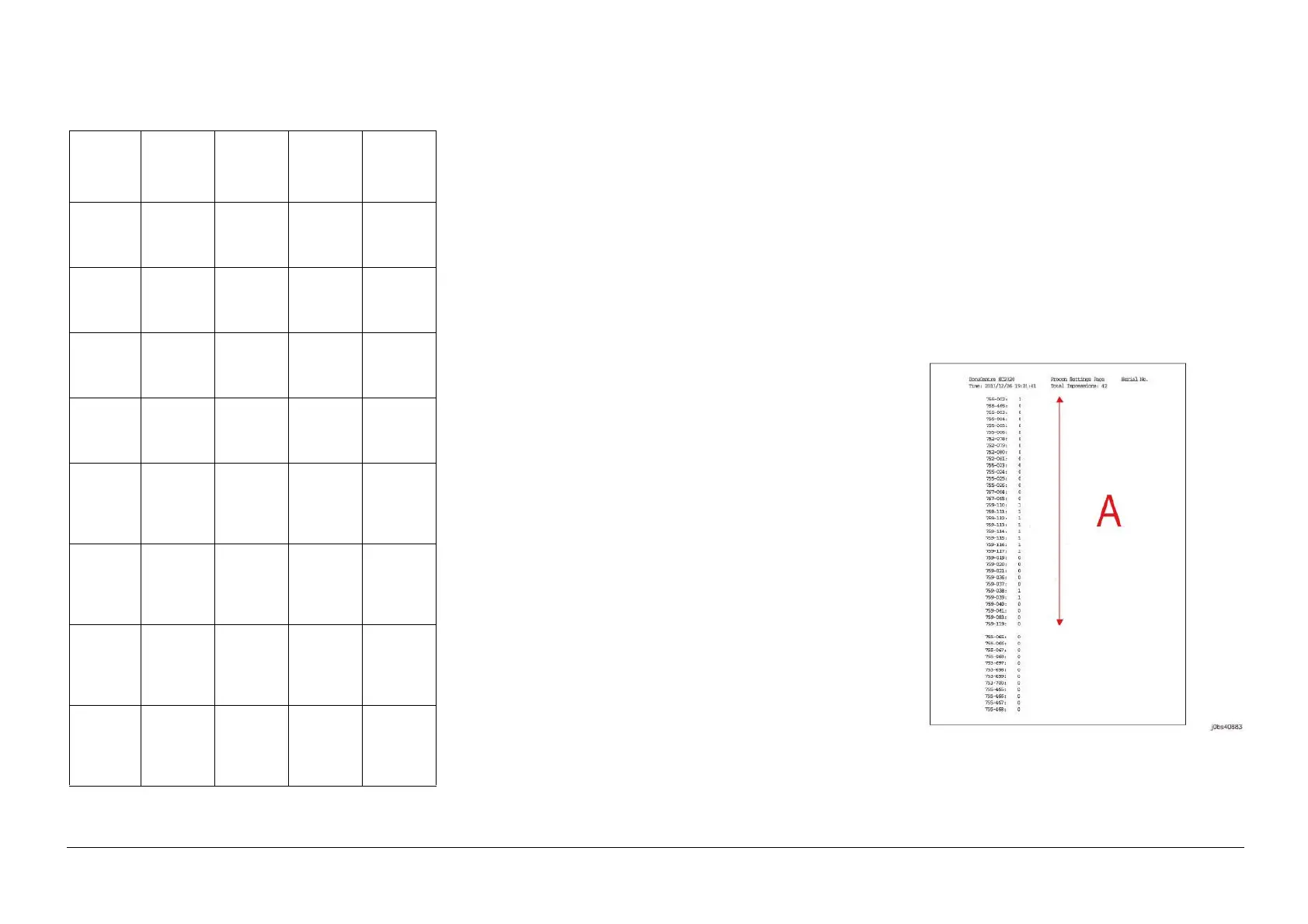

Figure 1 j0bs40883
Table 1 Corresponding PG and operation of Test Pattern Print
Test
Pattern
Print
Name Y M C K
Y Up A4
5PV
HT10%
Image A4
5 copies
(Disp More)
HT10%
Image A4
5 copies
(Disp Less)
HT10%
Image A4
5 copies
(Disp Less)
HT10%
Image A4
5 copies
(Disp Less)
M Up A4
5PV
HT10%
Image A4
5 copies
(Disp Less)
HT10%
Image A4
5 copies
(Disp More)
HT10%
Image A4
5 copies
(Disp Less)
HT10%
Image A4
5 copies
(Disp Less)
C Up A4
5PV
HT10%
Image A4
5 copies
(Disp Less)
HT10%
Image A4
5 copies
(Disp Less)
HT10%
Image A4
5 copies
(Disp More)
HT10%
ImageA4
5 copies
(Disp Less)
K Up A4
5PV
HT10%
Image A4
5 copies
(Disp Less)
HT10%
Image A4
5 copies
(Disp Less)
HT10%
Image A4
5 copies
(Disp Less)
HT10%
Image A4
5 copies
(Disp More)
Y Down A4
10PV
HT70%
Image A4
10 copies
(without
Disp)
HT10%
Image A4
10 copies
(Disp Less)
HT10%
Image A4
10 copies
(Disp Less)
HT10%
Image A4
10 copies
(Disp Less)
M Down A4
10PV
HT10%
Image A4
10 copies
(Disp Less)
HT70%
Image A4
10 copies
(without
Disp)
HT10%
Image A4
10 copies
(Disp Less)
HT10%
Image A4
10 copies
(Disp Less)
C Down A4
10PV
HT10%
Image A4
10 copies
(Disp Less)
HT10%
Image A4
10 copies
(Disp Less)
HT70%
Image A4
10 copies
(without
Disp)
HT10%
Image A4
10 copies
(Disp Less)
K Down A4
10PV
HT10%
Image A4
10 copies
(Disp Less)
HT10%
Image A4
10 copies
(Disp Less)
HT10%
Image A4
10 copies
(Disp Less)
HT70%
Image A4
10 copies
(without
Disp)
