05/2014
6-8
DC SC2020
6.1.5 Installation Space
Version 1.1
General

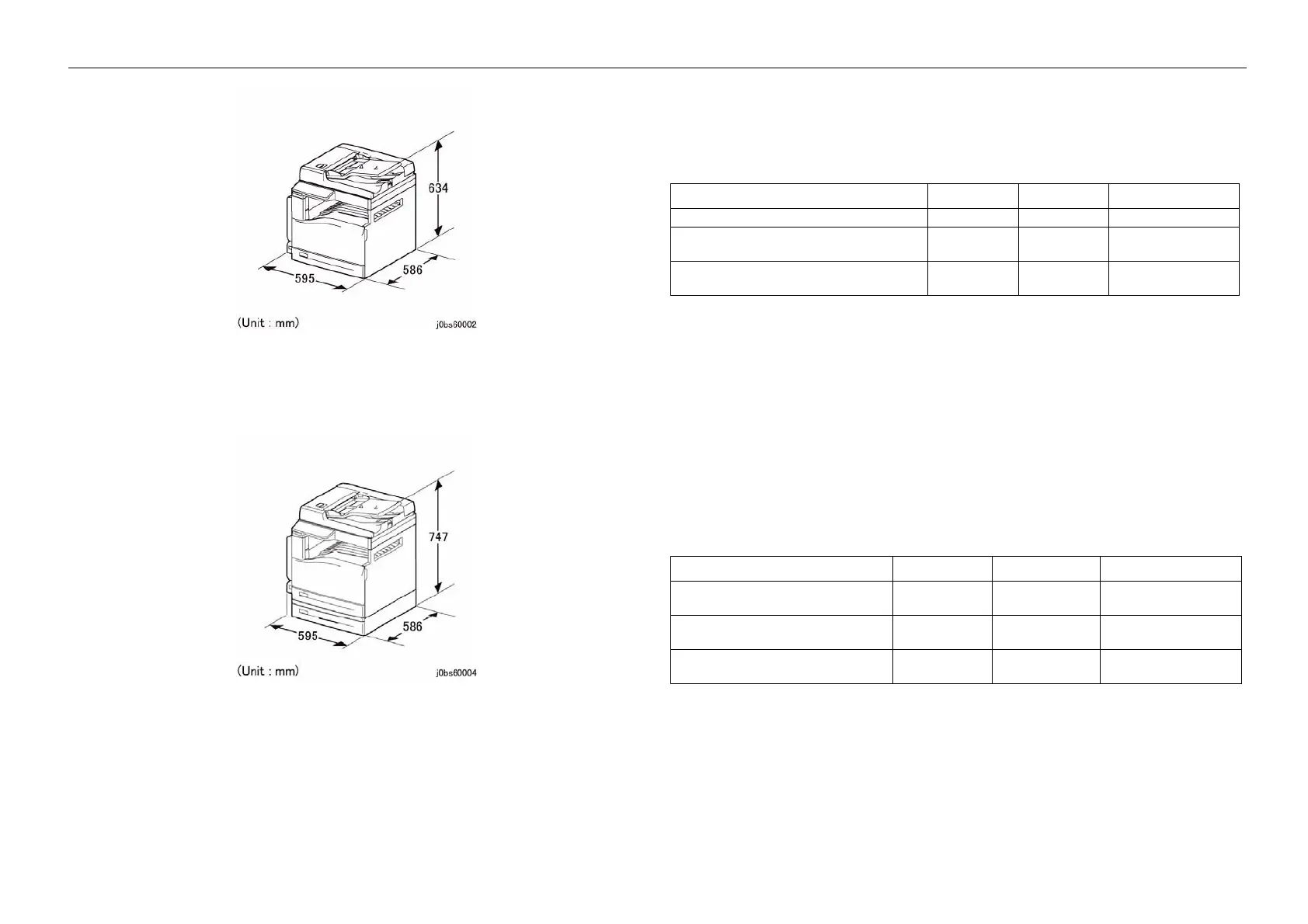

Figure 3 j0bs60002
4. Basic Model 4
• Platen unit body (DC SC2020 Model-CPS DA) DADF + STM (Option)
Machine Size (W x D x H): 595mm x 586mm x 747mm (Figure 6)
Figure 4 j0bs60004
6.1.5 Installation Space
6.1.5.1 Installation Space
In order to perform paper loading, replacement of consumables, jam fixes, maintenance/inspection work,
M/C ventilation and other tasks, there should be enough open space around the machine.
• Width: The max. width with the MSI Tray pulled out is 326mm.
• Depth: The depth with the Tray pulled out is 998mm. (Including the Front Cover)
The installation space includes the following working space.
• Width: 80 mm added to the left and 100 mm added to the right
• Depth: 400 mm added to the front (for pulling out of Tray) and 100 mm added to the back (for air cir-
culation)
6.1.5.2 Occupied Space
The occupied space may include a fully extended Bypass Tray and Output Tray.
6.1.5.3 Installation Space Details
1. Platen unit body (DC SC2020 Model-CPS)
• Installation Space (W x D): 1101 mm x 1498 mm (Figure 1)
Table 1
Configuration Width (mm) Depth (mm) Area (square meters)
Platen unit body (DC SC2020 Model-CPS) 1101 1498 1.65
DADF unit body (DC SC2020 Model-CPS
DA)
1101 1498 1.65
DADF unit body + STM (DC SC2020 Model-
CPS DA)
1101 1503 1.66
Table 2
Configuration Width (mm) Depth (mm) Area (square meters)
Platen unit body (DC SC2020 Model-
CPS)
947 586 0.55
DADF unit body (DC SC2020 Model-
CPS DA)
972 586 0.57
DADF unit body + STM (DC SC2020
Model-CPS DA)
972 586 0.57
To Next Page
