05/2014
4-58
DC SC2020
13. MSI
Version 1.1
Disassembly/Assembly and Adjustment
REP 13.3.2 MSI Retard Pad
Parts List on PL 13.3
Removal
WARNING
When turning OFF the power switch, check that the ’Data’ lamp
is OFF and that there is no Job in progress.
Turn OFF the power switch and make sure that the screen dis-
play or the Power Saver LED turns OFF.
Check that the power switch is OFF and unplug the power plug.
NOTE: The MSI Nudger Roll, the MSI Feed Roll, and the MSI
Retard Pad must be replaced at the same time.

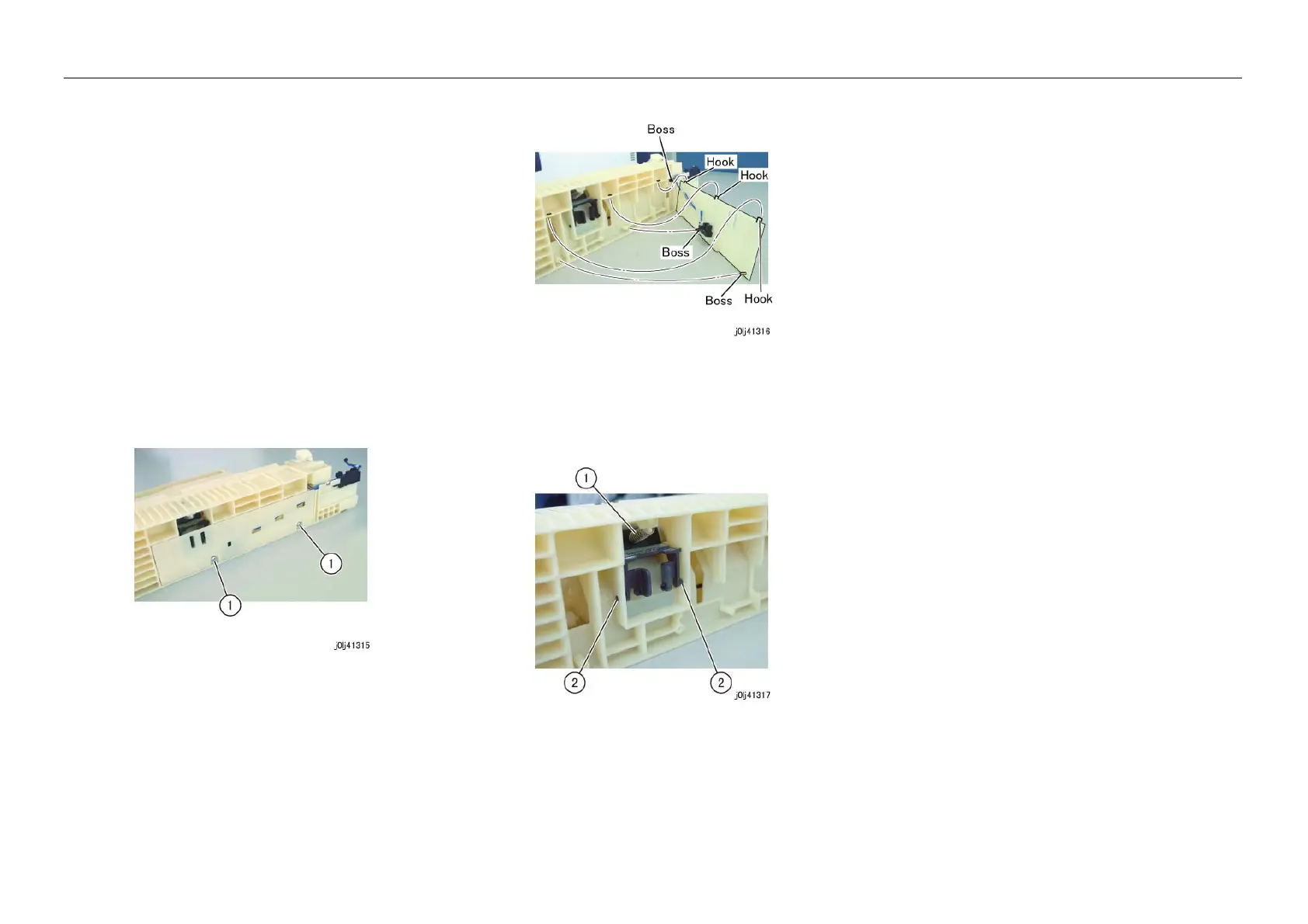

1. Remove the MSI. (REP 13.1.1)
2. Remove the screws that secure the MSI Lower Cover at the
bottom of the MSI. (Figure 1)
(1) Remove the Tapping Screw (x2).
Figure 1 j0lj41315
3. Release the hook (x3) and release the boss (x3) from the
installation holes to remove the MSI Lower Cover.
(Figure 2)
Figure 2 j0lj41316
4. Remove the MSI Retard Pad. (Figure 3)
(1) Remove the spring.
(2) Release the boss (x2) from the installation holes and
remove the MSI Retard Pad.
Figure 3 j0lj41317
Replacement
1. To install, carry out the removal steps in reverse order.
2. After a replacement, enter the CE mode, and then perform Ini-
tialize via Printer Diag > Parameter > Life > MSI FR Pad to ini-
tialize the Life counter.
To Next Page
