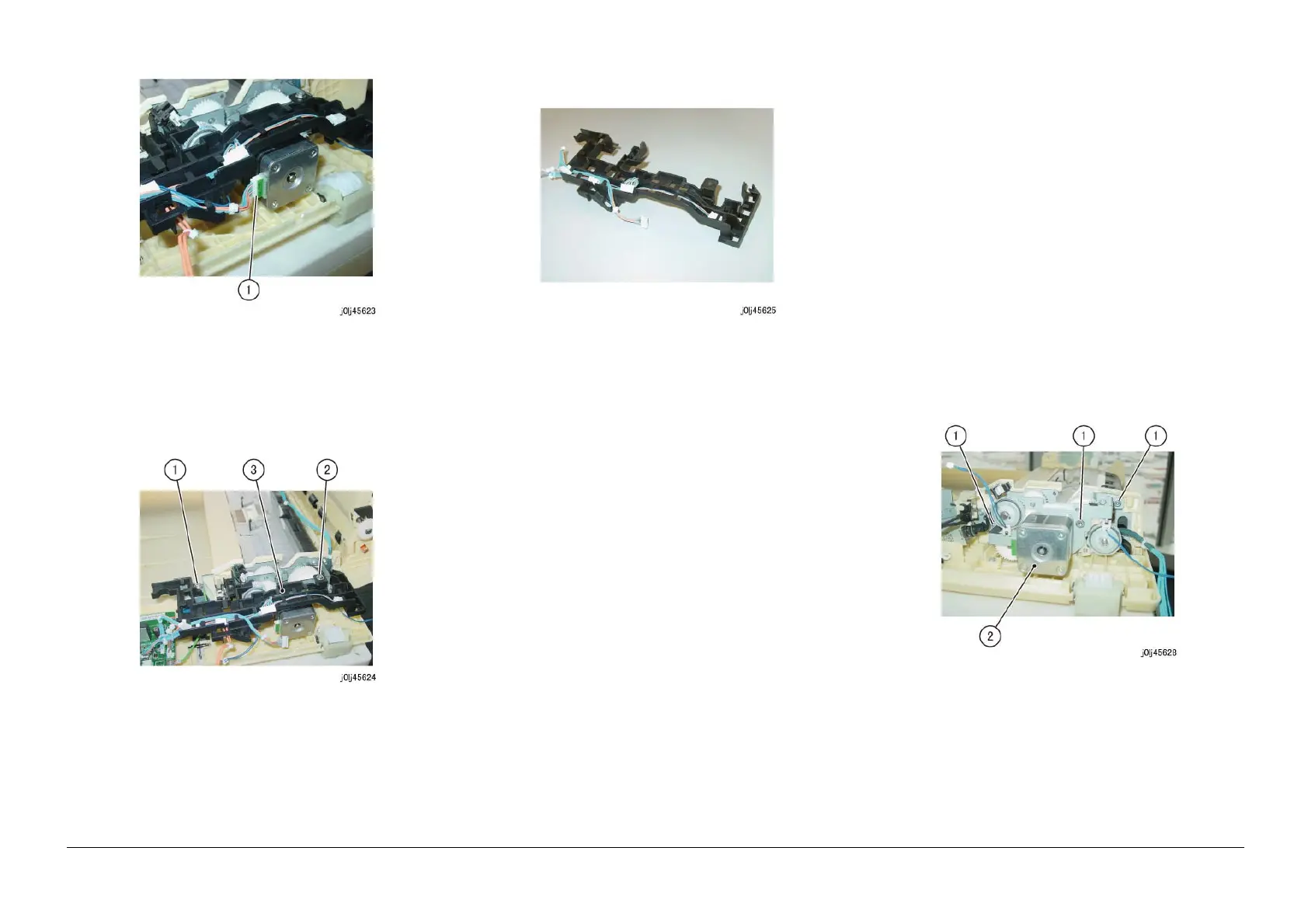

10. Remove the Harness Guide and the wire harness. (Figure 7)
(1) Remove the screw and the Ground Wire.
(2) Remove the screw.
(3) Remove the Harness Guide and the wire harness.
Figure 7 j0lj45624
Reference: This shows the removed Harness Guide and wire
harness. (Figure 8)
Figure 8 j0lj45625
Replacement
1. To install, carry out the removal steps in reverse order.
REP 56.6.2 DADF Feed Motor
Parts List on PL 56.6
Removal
WARNING
When turning OFF the power switch, check that the ’Data’ lamp
is OFF and that there is no Job in progress.
Turn OFF the power switch and make sure that the screen dis-
play or the Power Saver LED turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the DADF Front Cover. (REP 56.2.1)
2. Remove the DADF Rear Cover. (REP 56.2.2)
3. Remove the Document Tray. (REP 56.9.1)
4. Remove the Harness Guide and the wire harness. (REP
56.6.1)
5. Remove the DADF Feed Motor. (Figure 1)
(1) Remove the screw (x3).
(2) Remove the DADF Feed Motor.
Figure 1 j0lj45628
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the DADF Feed Motor, align the Tab (x2) of the
DADF Feed Motor Bracket to the Cutout (x2) of the DADF
Feed Clutch and DADF Takeaway Clutch. (Figure 2)
To Next Page
