05/2014
5-60
DC SC2020
56. DADF
Version 1.1
Parts List

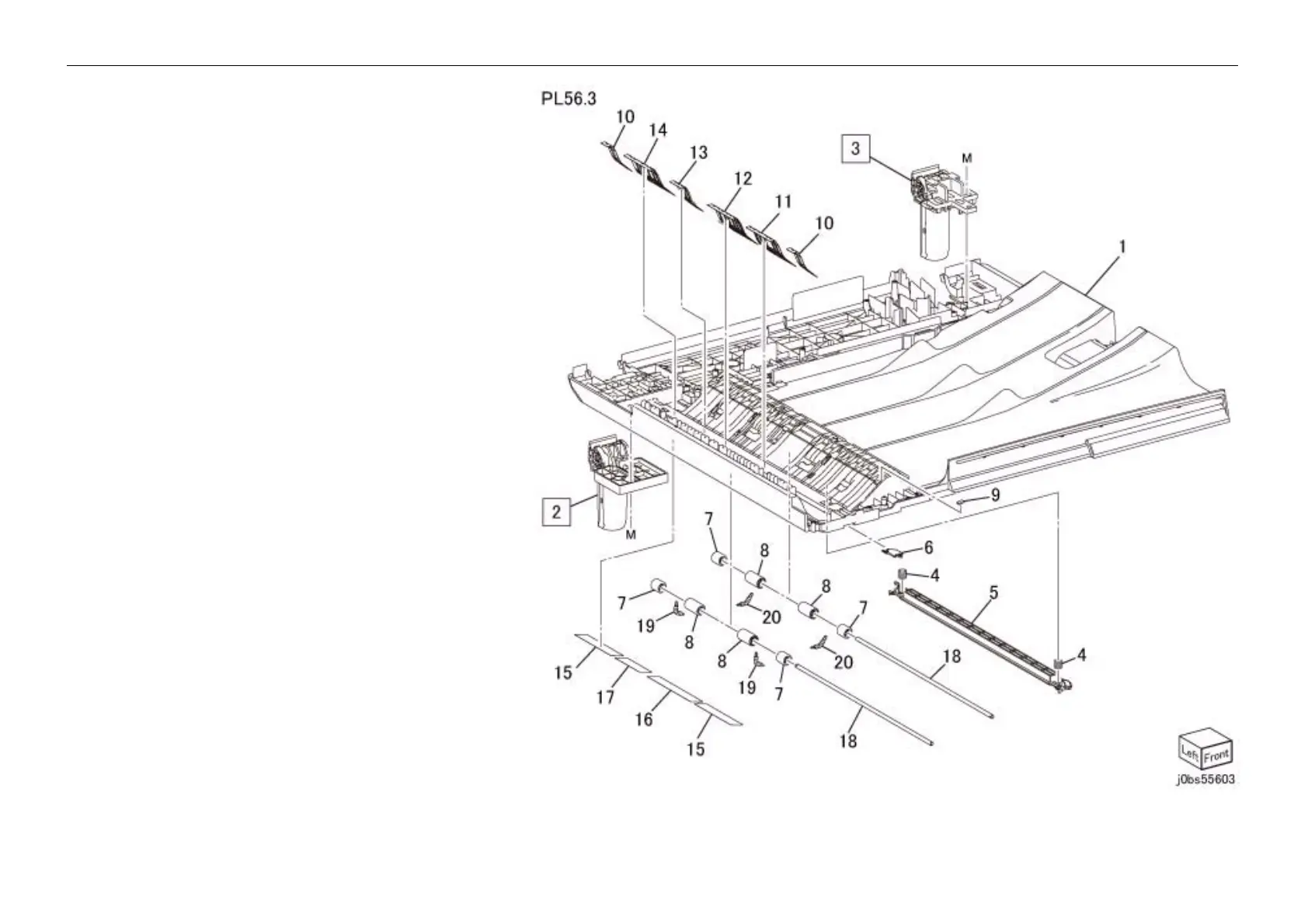

PL 56.3 DADF Base Frame
Item Parts No Description A.C.
1 – DADF Base Frame
2 036K 92141 (SCC) Left Counter Balance (REP 56.3.1, REP
99.1.1)
3 036K 92130 (SCC) Right Counter Balance (REP 56.3.2, REP
99.1.1)
4 809E 86290 CVT Spring
5 – CVT Chute
6 803E 13340 CVT Stopper
7 059E 98711 Registration Pinch Roll (Short)
8 059E 98701 Registration Pinch Roll (Long)
9– Gate Pad
10 035K 85280 Seal (Chute 1)
11 035K 85290 Seal (Chute 2)
12 035K 85320 Seal (Chute 3)
13 035K 85330 Seal (Chute 4)
14 035K 85340 Seal (Chute 5)
15 035K 85380 Seal (B1)
16 035K 85390 Seal (B2)
17 035K 85400 Seal (B3)
18 – Shaft
19 899E 01591 Spring (Hook:C,O)
20 899E 01911 Spring (Hook:C,C)
To Next Page
