05/2014
4-70
DC SC2020
18. Electrical
Version 1.1
Disassembly/Assembly and Adjustment
REP 18.3.1 LVPS
Parts List on PL 18.3
Removal
WARNING
When turning OFF the power switch, check that the "Data"
lamp is OFF and that there is no Job in progress.
Turn OFF the Power Switch and make sure that the screen dis-
play or energy-saving LED is turned off.
Check that the power switch is OFF and unplug the power plug.
CAUTION
Static electricity may damage electrical parts.
Static electricity may damage electrical parts. Always wear a wrist
band during servicing. If a wrist band is not available, touch some
metallic parts before servicing to discharge the static electricity.
CAUTION
Do not get yourself hurt by a soldered portion on the back of the
PWB.

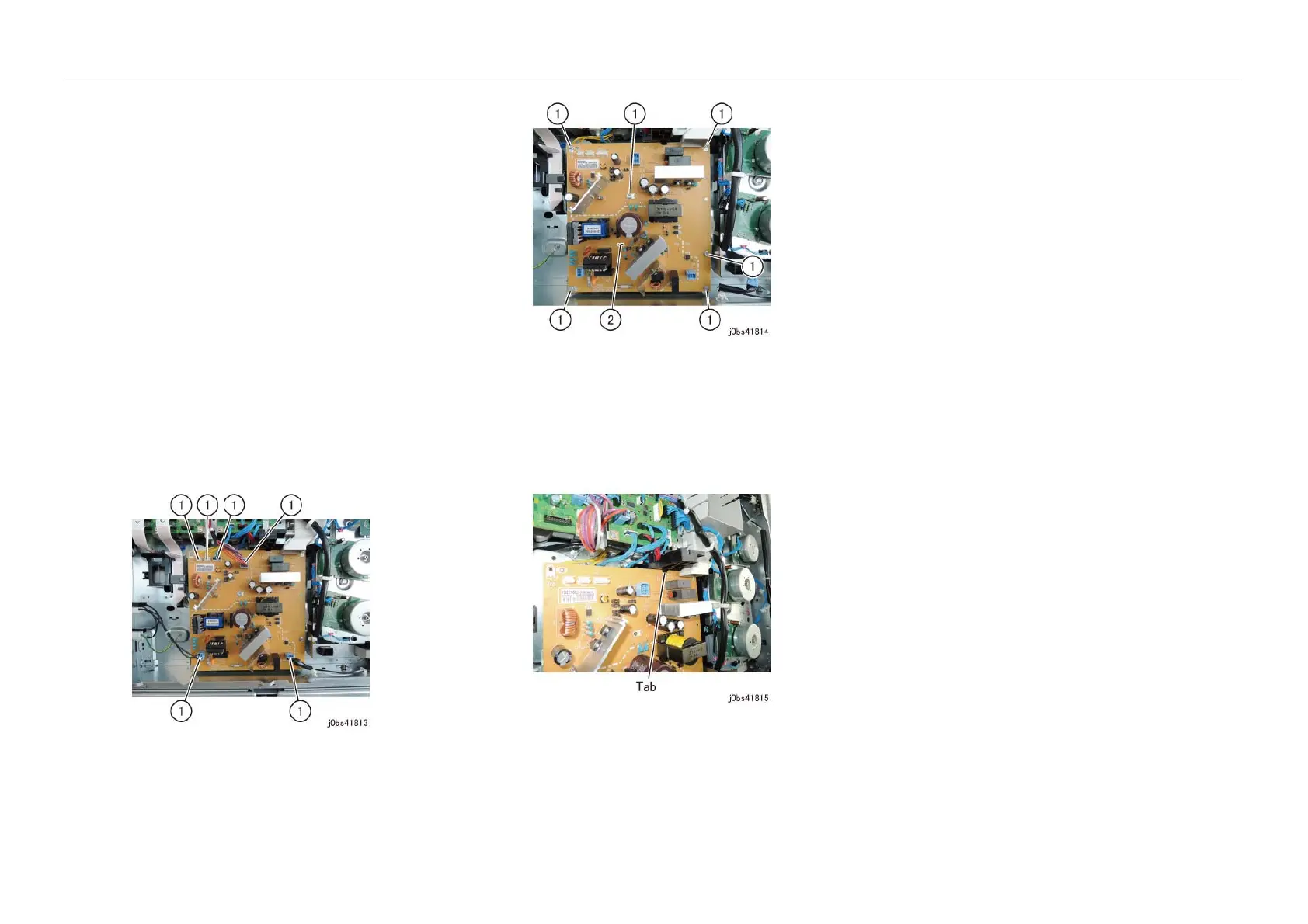

1. Remove the Rear Cover. (REP 19.1.5)
2. Disconnect the connector. (Figure 1)
(1) Disconnect the connector (x6).
Figure 1 j0bs41813
3. Remove the LVPS. (Figure 2)
(1) Remove the Screws (x6).
(2) Remove LVPS.
Figure 2 j0bs41814
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the LVPS, install so the PWB Support Tab is
Outside of the LVPS. (Figure 3)
Figure 3 j0bs41815
To Next Page
