Fuji Xerox DocuCentre SC2020 Service Manual

05/2014
5-15
DC SC2020
Parts List
3. Drive
Version 1.1

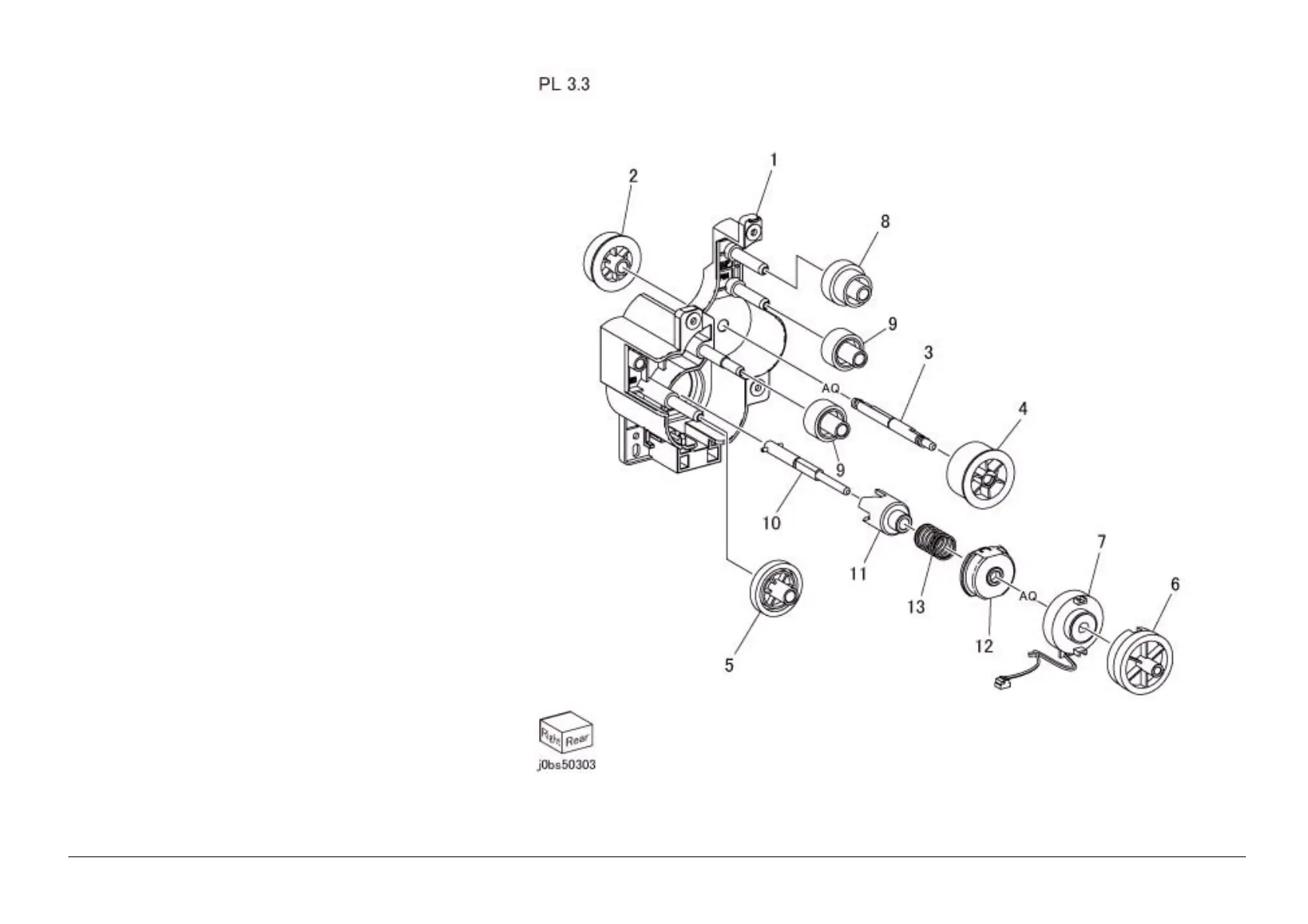

PL 3.3 PH Drive Component
Item Parts No Description A.C.
1 – Housing
2 – Gear (MSI)
3 – Shaft
4 – Gear (MSI)
5 – Gear (PH)
6 – Gear (Tray)
7 121K 52340 (SCC) Tray 1 Feed Clutch (REP 99.1.1)
8 – Gear (Duplex )
9 – Gear (PH)
10 – Shaft
11 005E 34480 Coupling
12 – Bearing
13 – Spring
