Fuji Xerox DocuCentre SC2020 Service Manual

05/2014
5-34
DC SC2020
10. One Tray Module (Tray 2)
Version 1.1
Parts List

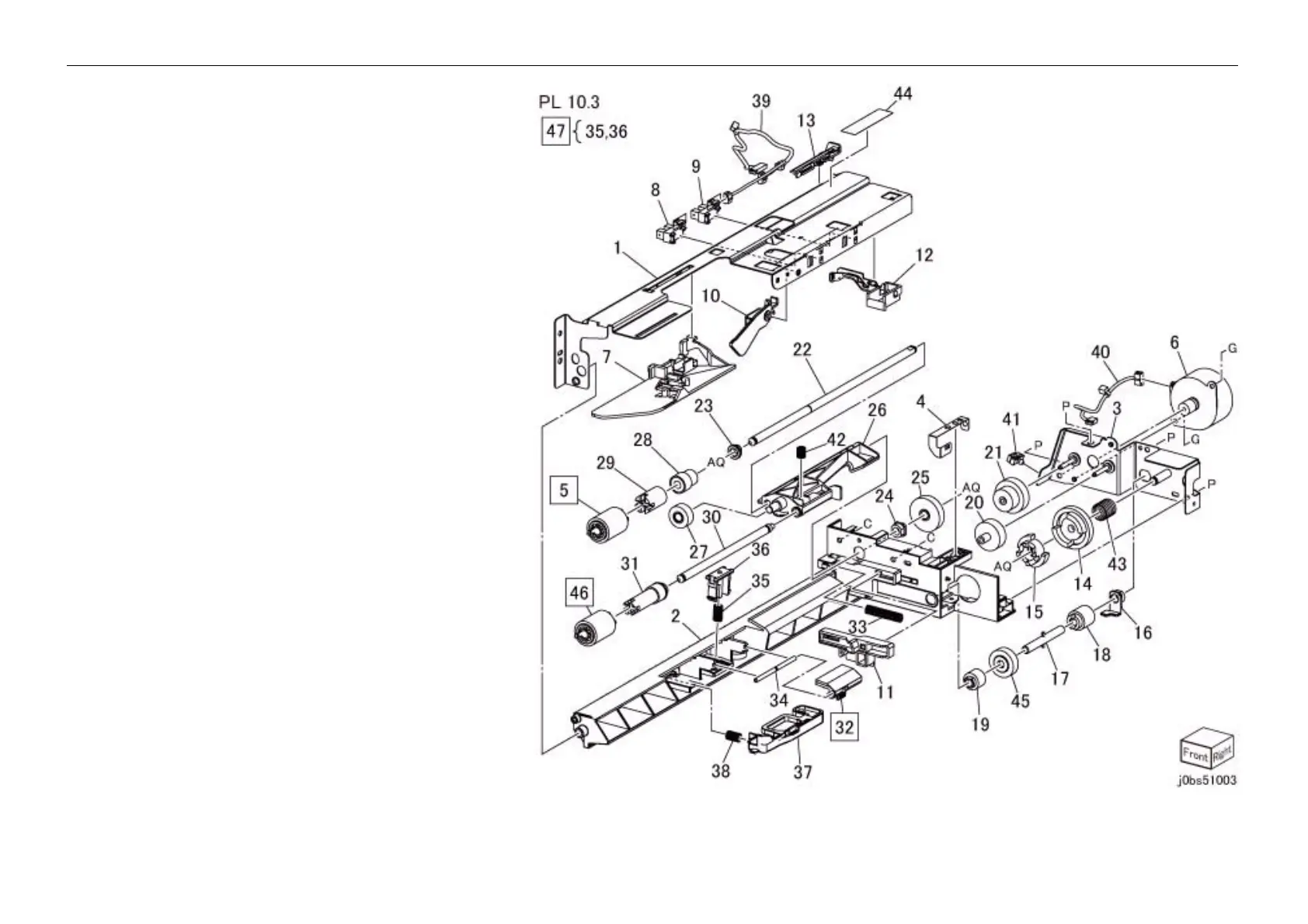

PL 10.3 Tray 2 Feeder
Item Parts No Description A.C.
1 – Upper Frame
2 – Lower Frame
3 – Drive Bracket
4 – Ground Plate
5 059K 86570 Tray 2 Feed Roll (REP 10.3.1)
6 127K 52790 (SCC) Tray 2 Feed/Lift Up Motor (REP 99.1.1)
7 – Chute
8 930W 00123 (SCC) Tray 2 No Paper Sensor(REP 99.1.1)
9 930W 00123 (SCC) Tray 2 Level Sensor(REP 99.1.1)
10 – Actuator
11 – Lever
12 – Harness Holder
13 113E 37581 Harness Holder
14 – Gear (31T)
15 – Spacer
16 – Bearing
17 006K 23221 Shaft
18 – Gear (13T)
19 005K 83081 Oneway Clutch (Alternate)
– 005K 10100 Oneway Clutch (Alternate)
20 – Gear (25T)
21 – Gear (29T/19T)
22 – Shaft
23 – Bearing
24 413W 11660 Sleeve Plastic Bearing
25 – Gear (30T)
26 – Nudger Support
27 – Gear (33T)
28 005K 06760 Oneway Gear (22T) (Alternate)
– 005K 07150 Oneway Gear (22T) (Alternate)
29 005K 84110 Oneway Clutch
30 – Nudger Shaft
31 – Gear (25T)
32 019K 15701 Retard Pad (REP 10.3.1)
33 – Spring
34 – Retard Shaft
35 – Retard Spring
36 – Spring Holder
37 – Retard Lever
38 – Spring
39 – Sensor Wire Harness
40 962K 58811 Motor Wire Harness
41 – Clamp
42 – Spring
43 – Spring
44 – Traceability Label
45 007K 98130 Oneway Gear (Alternate)
– 007K 16960 Oneway Gear (Alternate)
46 059K 86570 Tray 2 Nudger Roll (REP 10.3.1)
47 604K 91190 Retard Spring Kit (Item 35,36) (REP 10.3.2)
