05/2014
5-61
DC SC2020
Parts List
56. DADF
Version 1.1

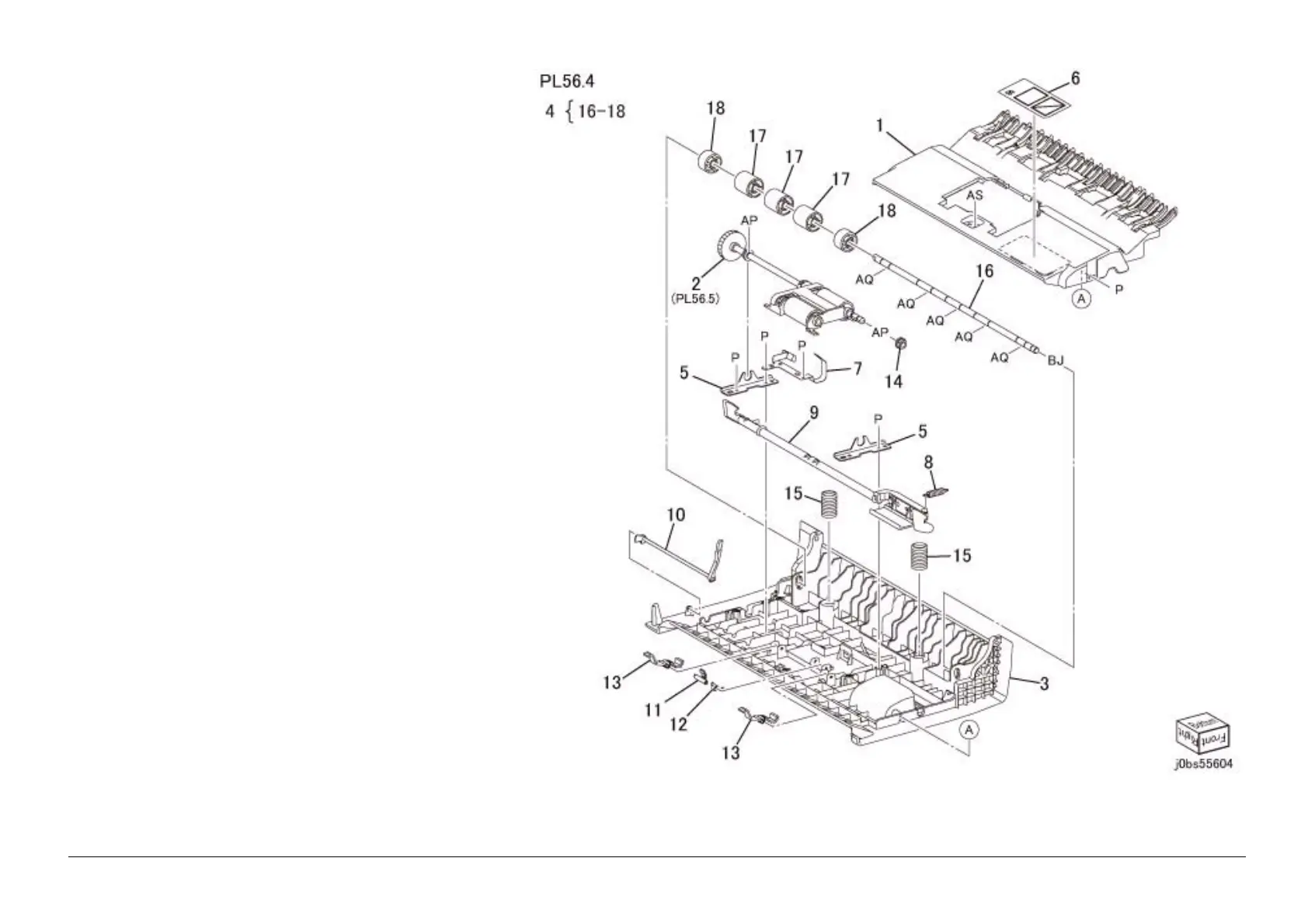

PL 56.4 Upper Feeder
Item Parts No Description A.C.
1 054E 50181 Upper Feeder Chute
2 059K 75770 Feed Roll Nudger Roll Assembly (PL 56.5)
3 – Upper Feeder Cover
4 059K 75760 Takeaway Pinch Roll
5 – Bracket
6 897E 24000 Jam Label
7 815E 76300 Ground Plate
8 809E 50720 Spring
9 011K 04260 Handle Lever
10 120E 34240 Actuator (Document Set)
11 120E 34250 Stopper Actuator
12 899E 01540 Spring
13 012E 18310 Set Link
14 413W 85459 Bearing
15 899E 01550 Spring
16 – Shaft (P/O Item 4)
17 059E 05090 Pinch Roll
18 059E 06210 Pinch Roll
To Next Page
