05/2014
5-51
DC SC2020
Parts List
17. Exit
Version 1.1

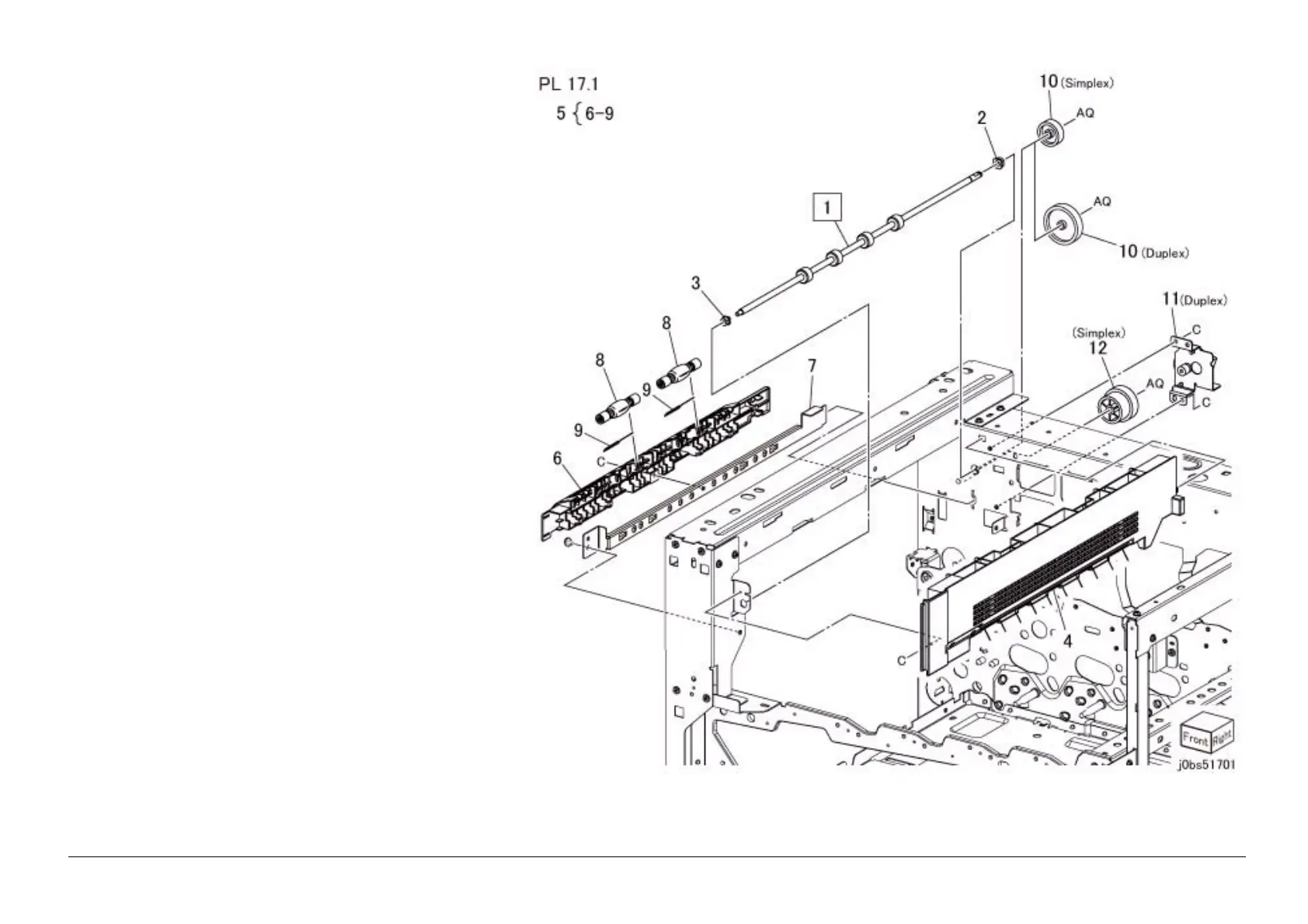

PL 17.1 Simplex/Duplex Exit
Item Parts No Description A.C.
1 059K 87370 Exit Roll (REP 17.1.1)
2 413W 11660 Bearing (d:6mm)
3 413W 14460 Bearing (d:4mm)
4 848K 89420 Exit Cover
5 054K 53040 Chute Exit (Item 6-9)
6 – Chute Exit (P/O Item 5)
7 – Exit Chute Frame (P/O Item 5)
8 059K 65781 Pinch Roll
9 – Pinch Spring (P/O Item 5)
10 – Gear (Simplex)
– 807E 39150 Gear (Duplex)
11 049K 28790 Inverter Motor
12 – Gear (Simplex)
To Next Page
