DC SC2020
Disassembly/Assembly and Adjustment
10. One Tray Module (Tray 2)
Version 1.1

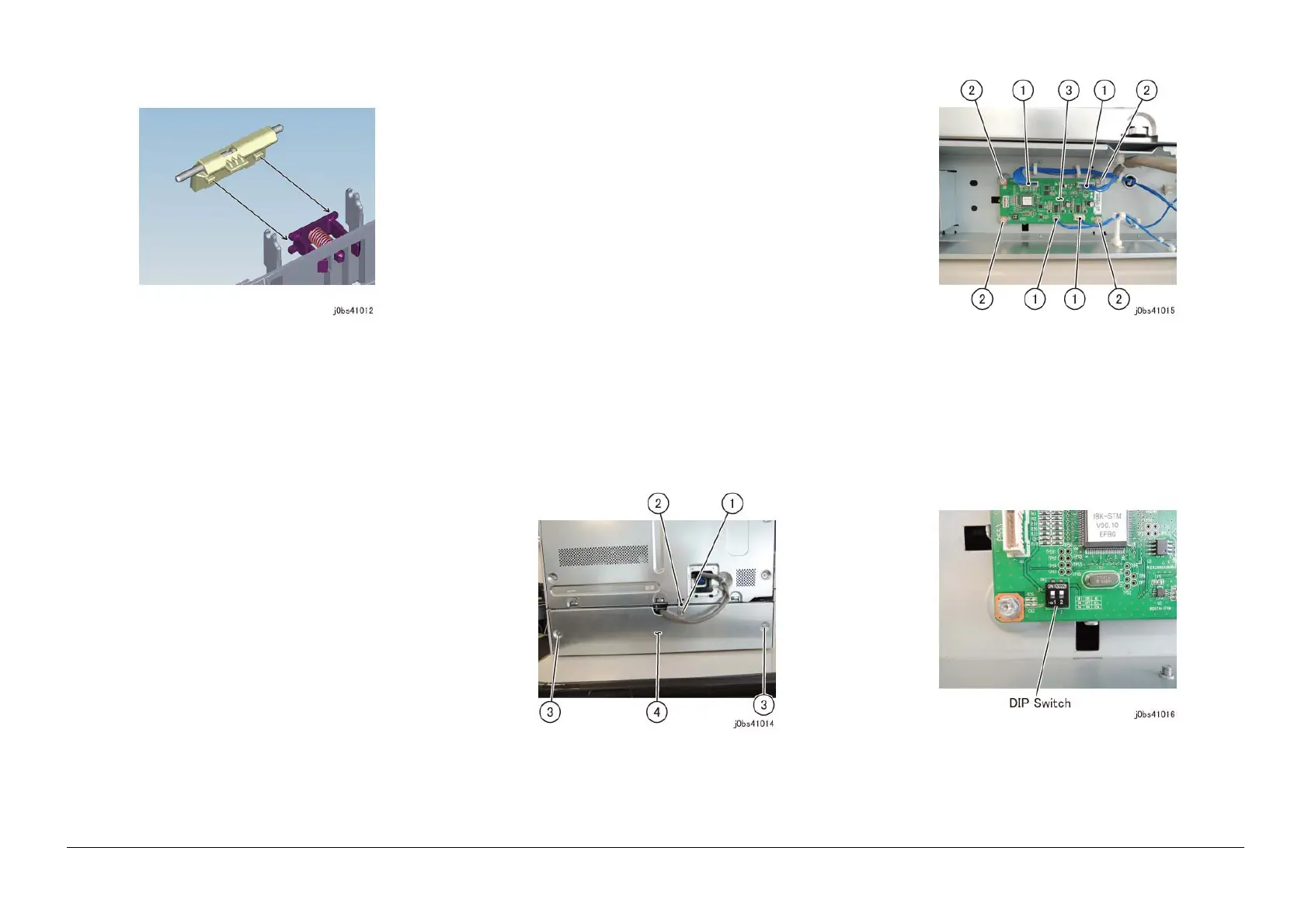

Figure 12 j0bs41012
3. Return the Roll (x2) to the original state.
4. Return the Chute to the original state.
5. Return the Tray 2 Feeder to the original state.
6. Return the Tray 2 Feeder Connector connection to the original
state.
7. Return the Connector Cover to the original state.
8. Return the Feed Out Chute to the original state.
9. Return the Left Rear Cover to the original state.
10. Close the STM L/H Cover.
11. Return the Tray 2 to the original state.
REP 10.6.1 (SCC) STM PWB
Parts List on PL 10.6
Removal
WARNING
When turning OFF the power switch, check that the "Data"
lamp is OFF and that there is no Job in progress.
Turn OFF the Power Switch and make sure that the screen dis-
play or energy-saving LED is turned off.
Check that the power switch is OFF and unplug the power plug.
CAUTION
Static electricity may damage electrical parts.
Static electricity may damage electrical parts. Always wear a wrist
band during servicing. If a wrist band is not available, touch some
metallic parts before servicing to discharge the static electricity.
CAUTION
Do not get yourself hurt by a soldered part on the back of the PWB.
1. Remove the STM Rear Cover. (Figure 1)
(1) Remove the Docking Screw.
(2) Remove the Docking Bracket.
(3) Remove the screw (x2).
(4) Remove the STM Rear Cover.
Figure 1 j0bs41014
2. Remove the STM PWB. (Figure 2)
(1) Disconnect the connector (x4).
(2) Remove the screw (x4).
(3) Remove the STM PWB.
Figure 2 j0bs41015
Replacement
1. To install, carry out the removal steps in reverse order.
2. Setup the DIP Switch as follows when the STM PWB is
replaced. (Figure 3)
SW 1: ON
SW 2: ON
Figure 3 j0bs41016
