05/2014
4-52
DC SC2020
10. One Tray Module (Tray 2)
Version 1.1
Disassembly/Assembly and Adjustment

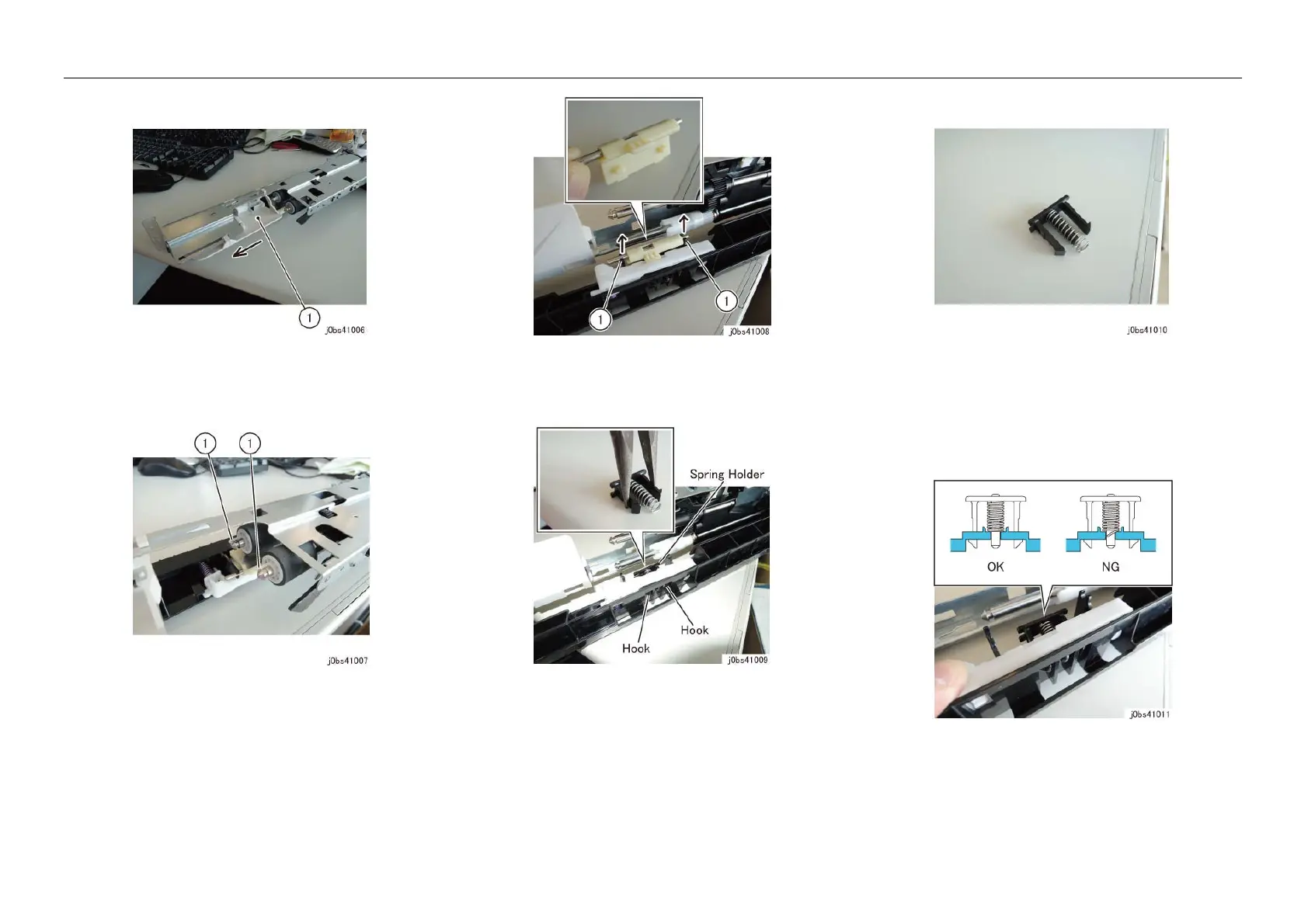

Figure 6 j0bs41006
9. Remove the Roll (x2). (Figure 7)
(1) Release the Hook and remove the Roll.
Figure 7 j0bs41007
10. Remove the Retard Pad and Shaft. (Figure 8)
(1) Pull the Shaft out from the installed position.
Figure 8 j0bs41008
11. Remove the Spring Holder. (Figure 9)
(1) Release the Hook and remove the Spring Holder.
Figure 9 j0bs41009
12. Replace the Retard Spring and the Spring Holder in the
Replacement Kit. (Figure 10)
Figure 10 j0bs41010
Replacement
1. Install the Retard Spring and the Spring Holder. (Figure 11)
• Install the Lower part of the Retard Spring so that it will not
get into the Spring Shaft mounting hole of the Spring
Holder.
Figure 11 j0bs41011
2. Return the Retard Pad and the Shaft to the original state. (Fig-
ure 12)
• Insert the Retard Pad and Shaft Tab (x2) into the Spring
Holder Cutout.
To Next Page
