05/2014
5-57
DC SC2020
Parts List
19. Cover
Version 1.1

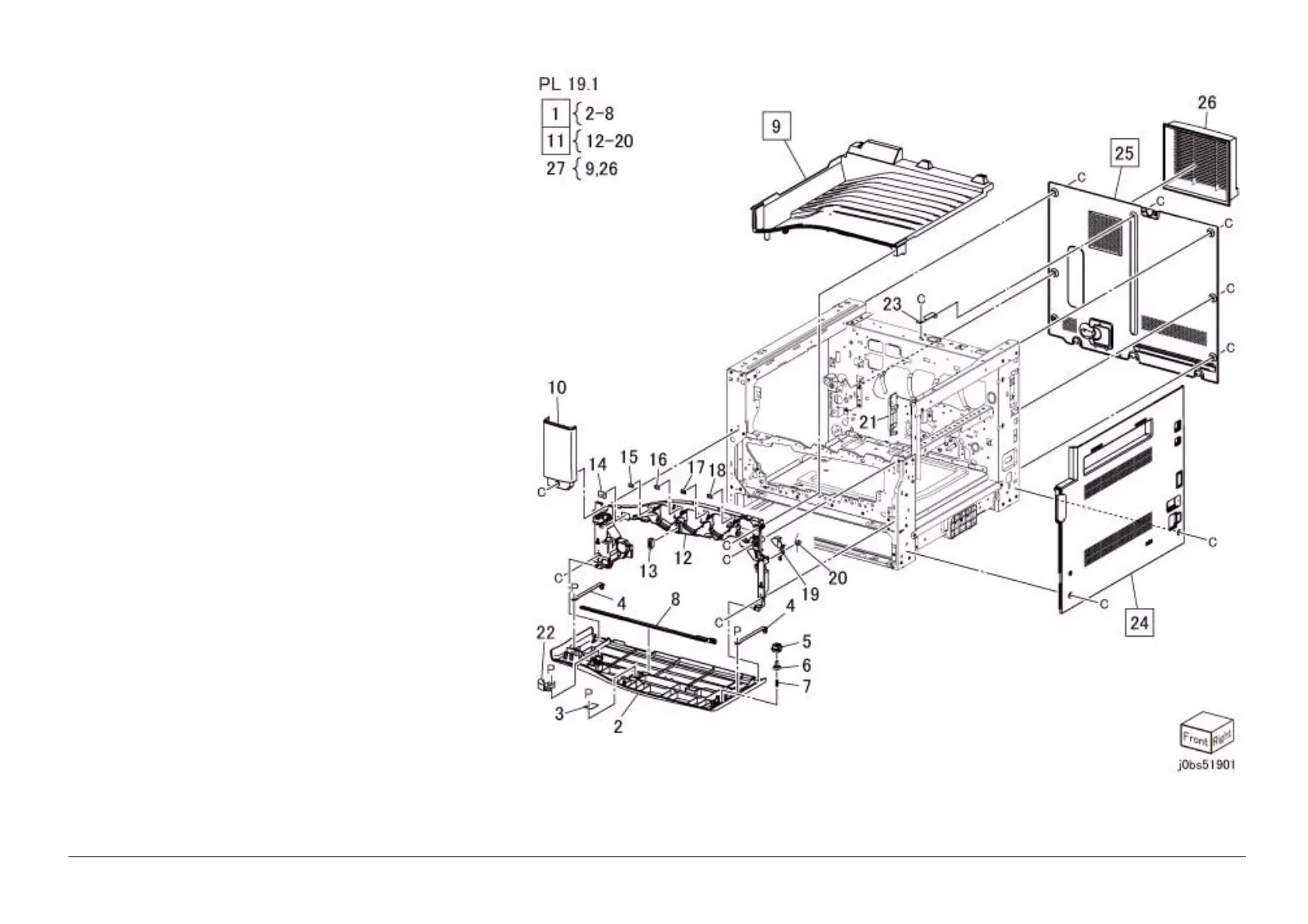

PL 19.1 Cover
Item Parts No Description A.C.
1 848K 88470 Front Cover (Item 2-8) (REP 19.1.1)
2 822E 06550 Front Cover
3 868E 65341 Magnet Bracket
4 869E 07030 Strap
5 – Holder (P/O Item 1)
6 – Actuator (P/O Item 1)
7 – Spring (P/O Item 1)
8 – Cleaner Assembly (P/O Item 1)
9 848K 88490 Top Cover (REP 19.1.4)
– – Top Cover (Odor Filter Type) (P/O Item 27)
10 822E 06570 (SCC) Pillar Left Cover(REP 99.1.1)
11 848K 88480 Inner Cover (Item 12-18) (REP 19.1.2)
12 822E 06560 Inner Cover
13 – Magnet (P/O Item 11)
14 890E 10690 Label (IBT Lock)
15 890E 11910 Label (Toner K)
16 890E 11900 Label (Toner C)
17 890E 11890 Label (Toner M)
18 890E 11880 Label (Toner Y)
19 011E 27720 Inter Lock Lever
20 – Lever Spring (P/O Item 11)
21 822E 08230 (SCC) Pillar Right Cover(REP 99.1.1)
22 803E 22010 IBT Handle Stopper
23 868E 69740 Rear Upper Bracket
24 822E 06590 (SCC) Right Cover (REP 19.1.3, REP 99.1.1)
25 848K 88500 Rear Cover (REP 19.1.5)
26 – Odor Filter (P/O Item 27)
27 604K 91930 Odor Filter Kit (Item 9,26)
To Next Page
