05/2014
5-27
DC SC2020
Parts List
8. Xero.
Version 1.1

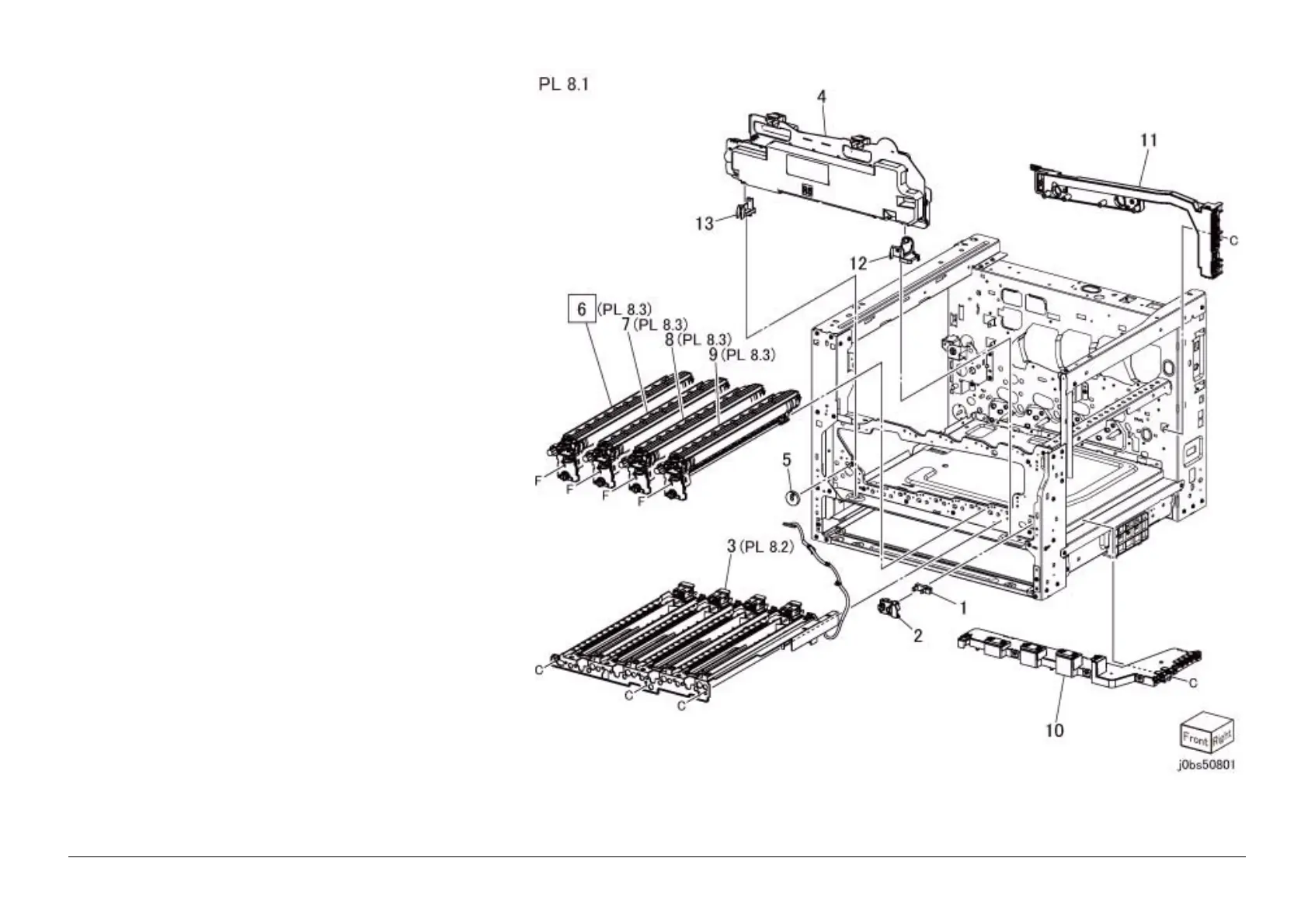

PL 8.1 Marking Guide,Xero Unit
Item Parts No Description A.C.
1 930W 00511 (SCC) Waste Toner Bottle Full Sensor (REP 99.1.1)
2 697E 70600 Sensor Cover
3 032K 08670 Marking Guide (PL 8.2)
4 – Waste Bottle
5 807E 45190 Gear
6 848K 91350 Xero Unit K (Drum Cartridge K) (PL 8.3) (REP 8.1.1)
7 848K 91350 Xero Unit C (Drum Cartridge C) (PL 8.3) (REP 8.1.1)
8 848K 91350 Xero Unit M (Drum Cartridge M) (PL 8.3) (REP
8.1.1)
9 848K 91350 Xero Unit Y (Drum Cartridge Y) (PL 8.3) (REP 8.1.1)
10 848K 85940 HVPS Housing
11 848K 85950 Conductor Housing
12 – Bottle Support R
13 – Bottle Support L
To Next Page
