Disassembly/Assembly and Adjustment
56. DADF
Version 1.1

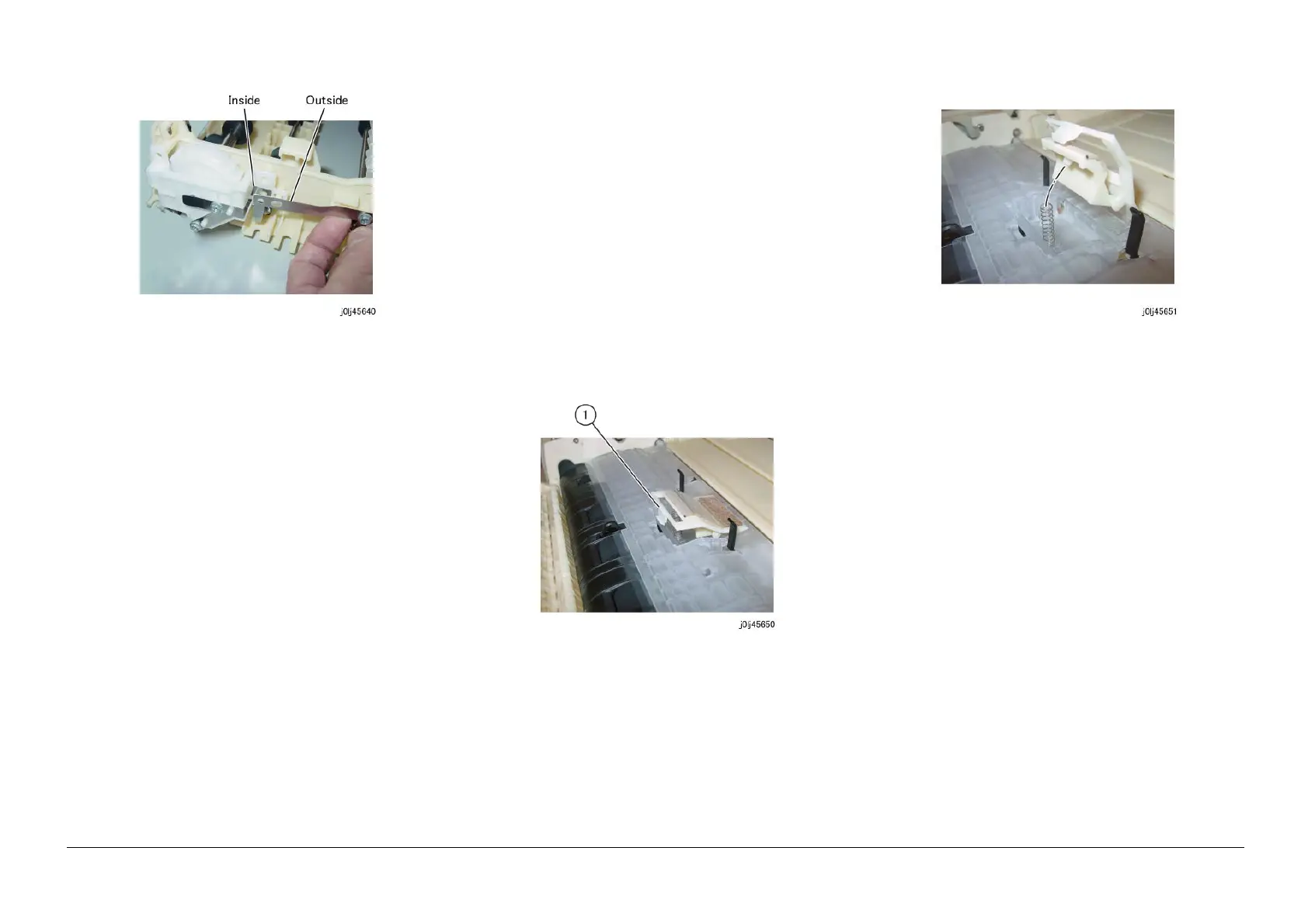

Figure 10 j0lj45640
REP 56.13.1 DADF Retard Pad
Parts List on PL 56.13
Removal
WARNING
When turning OFF the power switch, check that the ’Data’ lamp
is OFF and that there is no Job in progress.
Turn OFF the power switch and make sure that the screen dis-
play or the Power Saver LED turns OFF.
Check that the power switch is OFF and unplug the power plug.
NOTE: The DADF Retard Pad, the DADF Feed Roll, and the DADF
Nudger Roll must be replaced at the same time.
1. Open the Upper Feeder.
2. Remove the DADF Retard Pad. (Figure 1)
(1) Release the hook, open the DADF Retard Pad, and then
remove the DADF Retard Pad.
Figure 1 j0lj45650
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the DADF Retard Pad, attach the spring to the
boss of the DADF Retard Pad. (Figure 2)
Figure 2 j0lj45651
To Next Page
