05/2014
5-68
DC SC2020
56. DADF
Version 1.1
Parts List

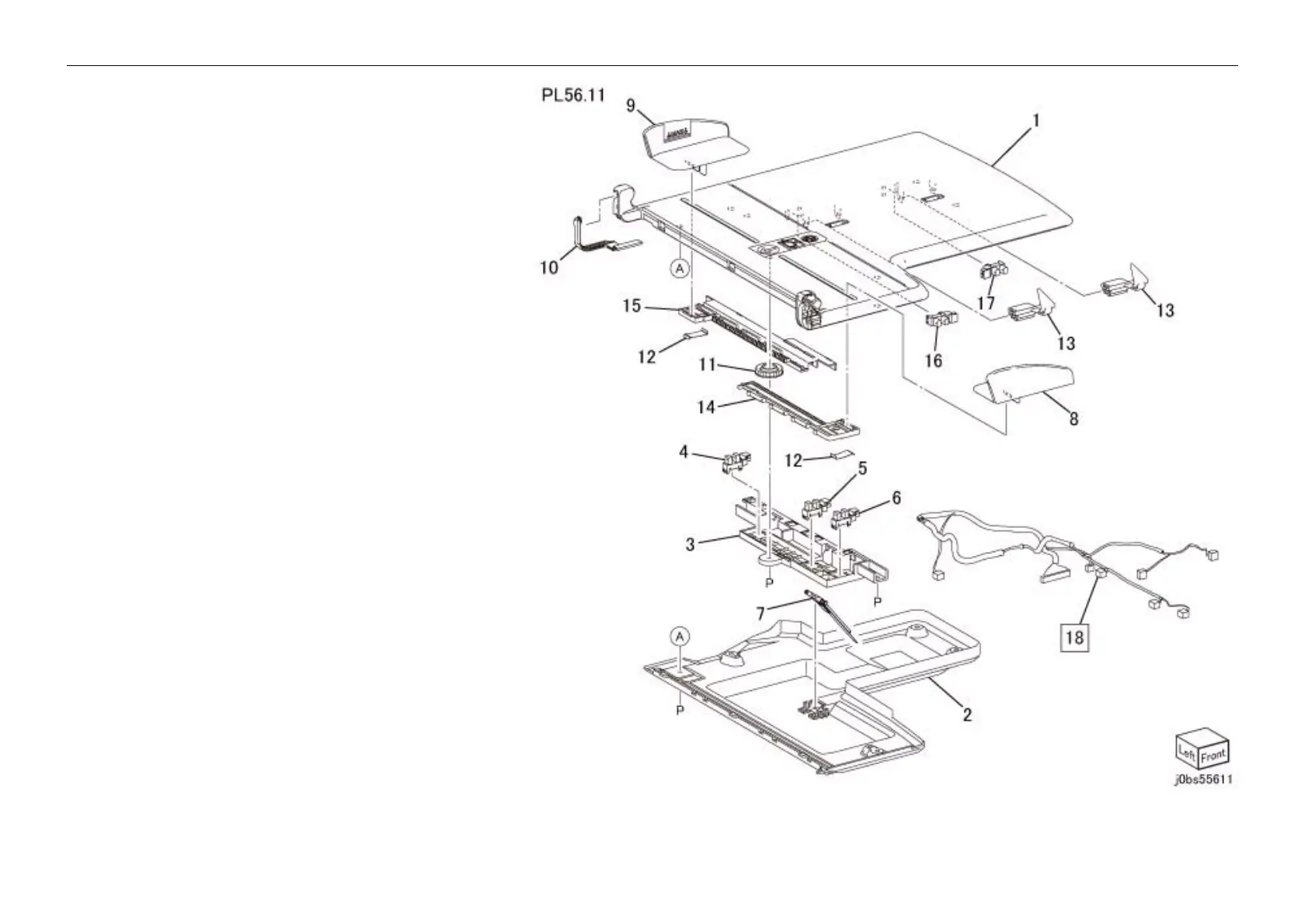

PL 56.11 Document Tray
Item Parts No Description A.C.
1 – Upper Tray
2– Tray Cover
3 868E 80501 Sensor Bracket
4 930W 00121 DADF Tray Set Guide Sensor 1
5 930W 00121 DADF Tray Set Guide Sensor 2
6 930W 00121 DADF Tray Set Guide Sensor 3
7 032K 05861 Scatter Guide
8 038E 42770 Front Side Guide
9 038E 42750 Rear Side Guide
10 848E 88020 Harness Cover
11 807E 30471 Pinion Gear
12 809E 51860 Rack Spring
13 120E 34210 Actuator
14 807E 37830 Rack Gear (Front)
15 807E 40750 Rack Gear (Rear)
16 930W 00121 Document Tray Size Sensor 1
17 930W 00121 Document Tray Size Sensor 2
18 952K 03520 (SCC) Tray Wire Harness(REP 99.1.1)
To Next Page
