Disassembly/Assembly and Adjustment

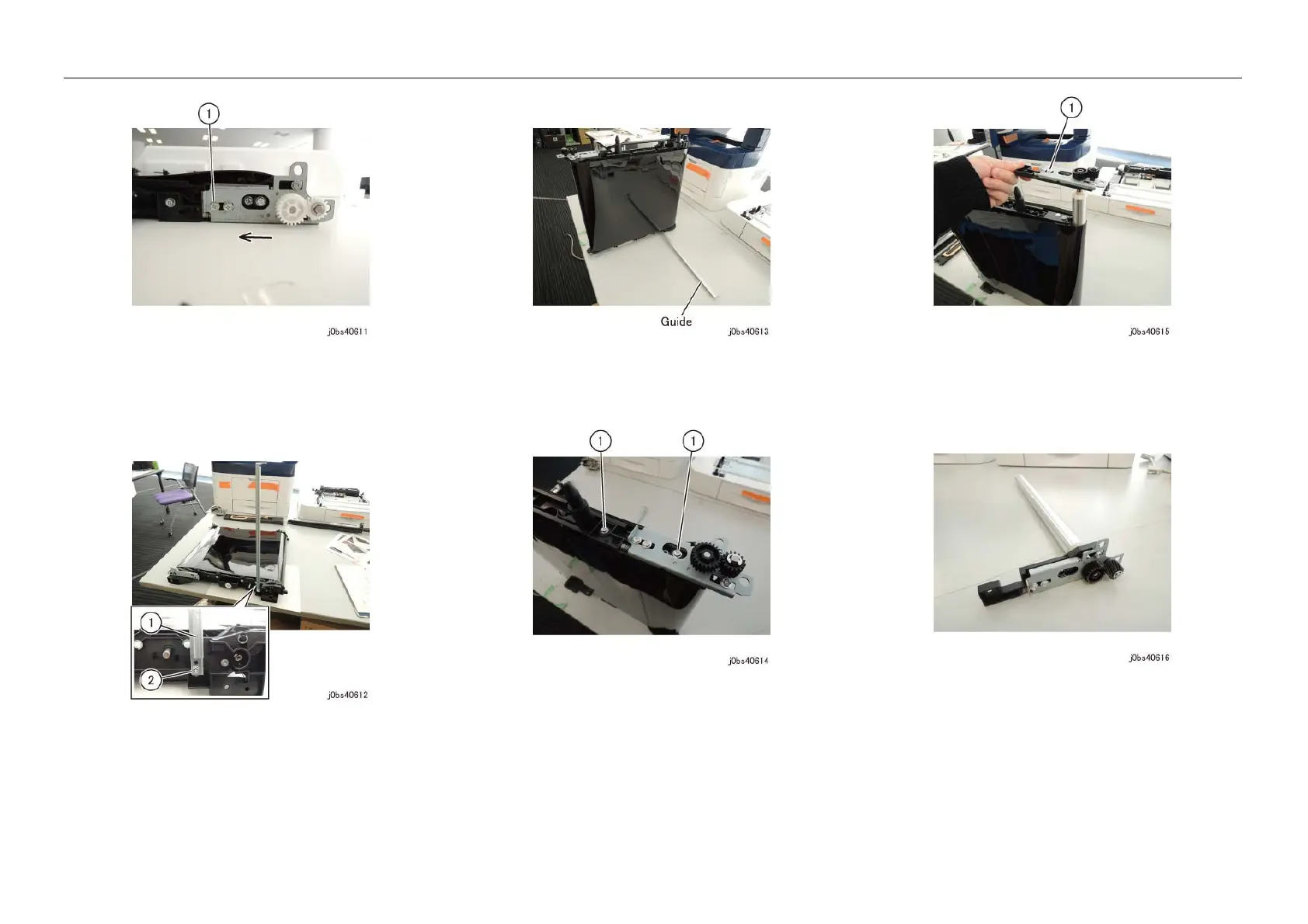

Figure 6 j0bs40611
10. Install the Guide removed in Step 6 on the Front IBT Belt Unit
in order to use it as a Stand. (Figure 7)
(1) Install the guide.
(2) Secure with Tapping Screw that was removed.
Figure 7 j0bs40612
11. Place the Rear IBT Belt Unit facing Up. (Figure 8)
Figure 8 j0bs40613
12. Remove the screw that secures the Rear Holder. (Figure 9)
(1) Remove the screw (x2).
Figure 9 j0bs40614
13. Remove the Rear Holder and the Tension Roll. (Figure 10)
(1) Remove the Rear Holder and the Tension Roll.
Figure 10 j0bs40615
Reference: This shows the removed Rear Holder and Tension
Roll. (Figure 11)
Figure 11 j0bs40616
14. Replace the IBT Belt. (Figure 12)
(1) Replace the IBT Belt.
To Next Page
